64 11 212 Removing and installing/replacing heater/air conditioner fan

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM at bottom left.

Release screws (1) and remove cover (2).

Fig 1: Releasing Screws (1) And Feeding Out Cover (2)

Courtesy of BMW OF NORTH AMERICA, INC.

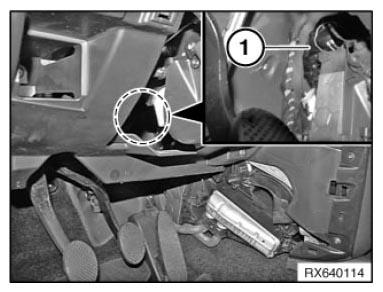

NOTE: Blower (1) is located above accelerator pedal on bulkhead.

Fig 2: Identifying Blower

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows instrument panel removed.

Disconnect plug connection (1).

Release screws (2) and feed out blower (3).

Fig 3: Identifying Plug Connection, Screws And Blower

Courtesy of BMW OF NORTH AMERICA, INC.
