61 31 492 Replacing level switch for windscreen washer system
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Partially remove front left wheel arch trim . See 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .
Current Version
NOTE:
Catch any escaping washer fluid if necessary.
Disconnect plug connection (1).
Pull level switch for windscreen washer system (3) in direction of arrow out of fluid reservoir for windscreen washer system.
Installation:
Grommet (2) must not be damaged.
First install grommet (2) in fluid reservoir for windscreen washer system.
Make sure grommet (2) and level switch for windscreen washer system (3) are correctly seated on fluid reservoir for windscreen washer system.
Fill fluid reservoir.
New Version

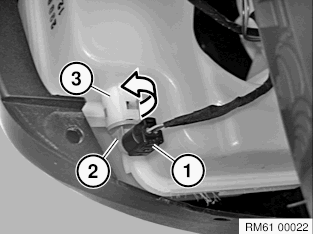

Disconnect plug connection (1).
Turn the level switch for the windscreen washer system (2) in direction of arrow.
Pull the level switch for the window washer system (2) out of the washer fluid reservoir for the window washer system (3) toward the bottom.
