61 13... Socket of tab connector housings

WARNING: This page is about a different variant/trim than selected.

Unlock hooks (1) with special tool 61 1 360 and push plug housing out of the socket.

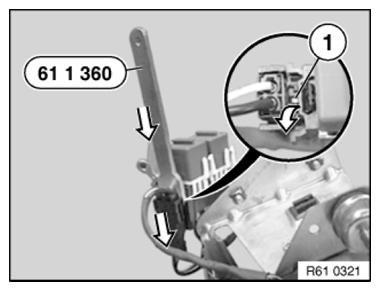

Fig 1: Removing Tab Connector Housings Socket Using Special Tool (61 1 360)

Courtesy of BMW OF NORTH AMERICA, INC.
