51 21 140 Removing and installing/replacing complete lock cylinder in left or right front door

Necessary preliminary tasks:

• Remove outside handle on front door  .

Partially raise window cavity cover strip and release screw (1).

Tightening torque 51 21 3AZ.

Release screws (2).

Tightening torque 51 21 4AZ.

Fig 1: Raising Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Position door lock (1) downwards a little.

Feed out lock cylinder (2) in area (A) and remove.

Installation:

Paddle (3) must be correctly inserted in door lock (1).

Fig 2: Feed Out Lock Cylinder (2) In Area (A) And Remove

Courtesy of BMW OF NORTH AMERICA, INC.

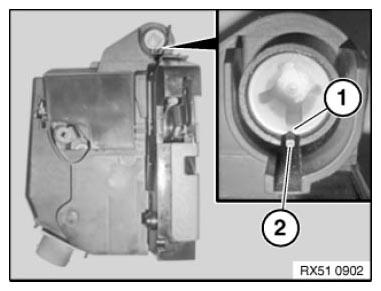

Installation:  Make sure door lock is in the correct position when installing the paddle. Notch (1) must be located at the marking (2).

Fig 3: Identifying Notch And Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Paddle (1) on lock cylinder (2) must not be damaged or missing.

Fig 4: Identifying Paddle On Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
