51 11... Removing and installing/replacing air inlet frame for braking air channel, left or right
WARNING: This page is about a different variant/trim than selected.
Special tools required:
- 00 9 327 . See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS -- S CLUBMAN .

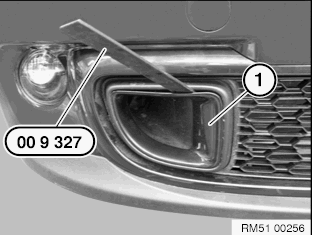

Unclip frame (1) using special tool 00 9 327.
Installation note: Latch mechanisms on frame (1) must not be damaged.
