41 21 600 Replacing left C-pillar (side panel removed)

WARNING: This page is about a different variant/trim than selected.

Refer to relevant service information in BODY, GENERAL .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

The following new body parts are required:

Fig 1: Identifying Side Frame, Extension And Support

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Open Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark cutting lines according to specified dimensions and cut.

IMPORTANT: Cut outer plate only for following severance cuts.

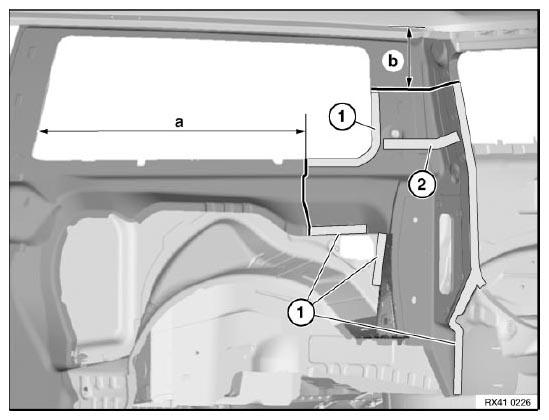

Measurement a = approx. 800 mm after rear edge of B-pillar.

Measurement b = approx. 150 mm from roof edge.

Open weld joints in areas (1).

Installation:

Open weld joints in area (1).

Fig 3: Identifying Open Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Remove C-pillar section.

Fig 4: Identifying Open Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Weld new components in areas (1) additionally.

Fig 5: Identifying Weld Components Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark new part in accordance with severance cuts on vehicle and cut.

Adjust new parts to fit with straightening attachment or universal mount.
