41 21 511 Replacing front left door post (front side panel removed)

WARNING: This page is about a different variant/trim than selected.

Refer to relevant service information in BODY, GENERAL .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

These repair instructions comprise the procedures for REPAIR STAGE 3 .

The following new body parts are required:

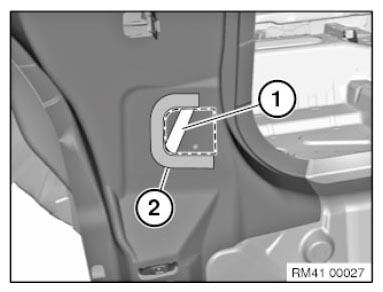

Support carrier, side frame, front (1)
Side frame, outer (2)

Fig 1: Identifying Support Carrier And Side Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Door post removal:

Open weld joints in areas (1).

Fig 2: Identifying Open Weld Joint Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Remove support carrier.

Fig 3: Identifying Open Weld Joint Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Fig 4: Identifying Open Weld Joint Area

Courtesy of BMW OF NORTH AMERICA, INC.

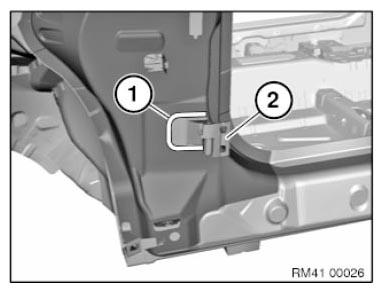

Separate MAG-welded joints in area (1) and remove door hinge (2).

Fig 5: Identifying MAG Welded Connection Area And Door Hinge

Courtesy of BMW OF NORTH AMERICA, INC.

Separate 2 welded joints in area (1) of the hinge mounting surface.

Installation note:

Replace welded joints in area (1) by 2 additional plug welds in area (2).

Fig 6: Identifying Welded Connections Areas Of Hinge Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with dimension and cut.

Dimension (a) = 60 mm below bore dia. 8 mm.

Dimension (b) = 35 mm before elongated hole dia. 12x18 mm.

Open weld joints in areas (1).

Open weld joints in area (2).

Take off door pillar.

Fig 7: Identifying Open Weld Joint Areas (1 & 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark new part in accordance with severance cuts above and cut.

Adjust new parts to fit with alignment bracket or universal mount.

Repair stage 2:

Adjust new support beam to fit and secure.

Set eleven 6.7 mm dia. holes for blind rivets in area (1).

Fig 8: Identifying Hole For Rivet Area

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) set three 6.7 mm dia. holes for blind rivets.

Remove all new parts again. Deburr bore holes.

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.

Fig 9: Identifying Hole For Rivet Area

Courtesy of BMW OF NORTH AMERICA, INC.

Door post installation:

Apply sealant to cavity acoustic baffles in areas (1). See INSTALLING A CAVITY ACOUSTIC BAFFLE (EXPANDED) and INSTALLING CAVITY SEALING (NOT EXPANDED) .

Adjust new part to fit with straightening attachment or universal mount and weld.

Weld in REINFORCEMENT PLATES at all severance cuts.

Fig 10: Identifying Cavity Acoustic Baffles In Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Repair stage 2:

Clean all bonding surfaces on vehicle and on new part with cleaning agent R1.

Apply adhesive K5a to bonding surfaces (1).

Fig 11: Identifying Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Mount support carrier and rivet with blind rivets N1 (1).

Fig 12: Identifying Support Carrier And Rivet With Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Rivet support carrier with blind rivets N1 (1).

After adhesive has hardened in area (1), fit an EMC SCREW .

Fig 13: Identifying Rivet Support Carrier With Blind Rivets
