41 00... Installation solution for straight shank/hexagon rivet nut

Protection measures!

• Wear protective goggles
• Wear protective gloves

Hexagon/straight shank rivet nut (up to thread 8) with hand rivet gun ZS308

1. Mark position of bore and then punch-mark component
   Fig 1: Identifying Punch-Mark Location

   Courtesy of BMW OF NORTH AMERICA, INC.
   IMPORTANT: If the determined drill bit diameter is not observed:

   • the knurling on the straight shank rivet nut is rendered useless
   • the component will be damaged when the straight shank rivet nut is inserted

   Determining suitable drill bit:

   Depending on the rivet nut shank diameter, the next drill bit diameter higher (5/10 step) can be used.

   E.g. with a shank diameter of 10.1 mm, the 10.5 mm drill bit can be used. The 11.0 mm drill bit must not be used.

2. Drill bore with determined drill bit and deburr, pilot-drill with a smaller drill bit if necessary
   Fig 2: Drilling Bore

   Courtesy of BMW OF NORTH AMERICA, INC.
3. Clean component, eliminate paintwork damage if necessary
   Fig 3: Clean And Eliminate Paintwork Damage If Necessary

   Courtesy of BMW OF NORTH AMERICA, INC.
   IMPORTANT: To avoid corrosion, stop chips/debris by means of cavity sealing.

   Follow instructions on CORROSION PROTECTION .

4. Preserving cavity
   Fig 4: Cavity Sealing

   Courtesy of BMW OF NORTH AMERICA, INC.
   IMPORTANT: Follow manufacturer's operating instructions.
   Make sure straight shank rivet nut correctly contacts component.
5. Set straight shank rivet nut with hand rivet gun
   NOTE: According to the tool manufacturer, the pictured tool is suitable up to an M8 thread.
   Fig 5: Setting Straight Shank Rivet Nut With Hand Rivet Gun

   Courtesy of BMW OF NORTH AMERICA, INC.

Hexagon / straight shank rivet nut (up to thread M12) with hand rivet gun MB512

Set rivet nut with hand rivet gun.

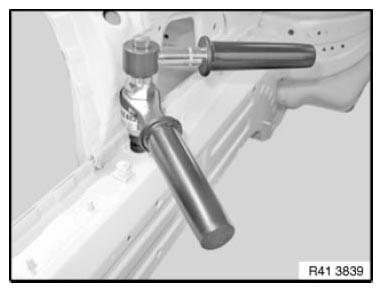

Fig 6: Installing Rivet Nut Using Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.
