41 00... Frame alignment control dimensions, body

Dimensions in mm.

Measurement tolerances:

• ≤ 1000 mm ± 1.5 mm
• ≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the straightening attachment.

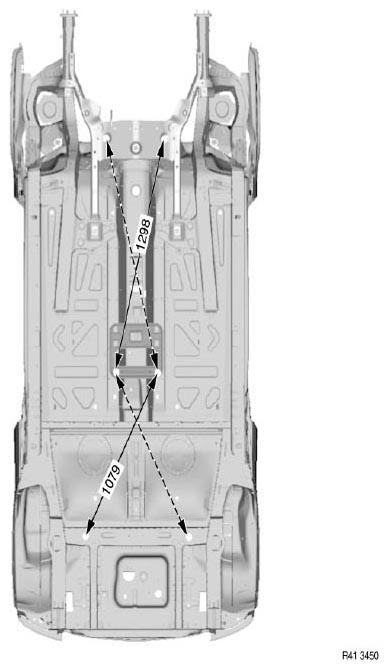

Underbody view 1

Fig 1: Identifying Underbody View 1 Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Underbody view 2

Fig 2: Identifying Underbody View 2 Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Top view, front end

Fig 3: Identifying Top View Dimension, Front End

Courtesy of BMW OF NORTH AMERICA, INC.
