Removing electronic wheel module

WARNING: This page is about a different variant/trim than selected.

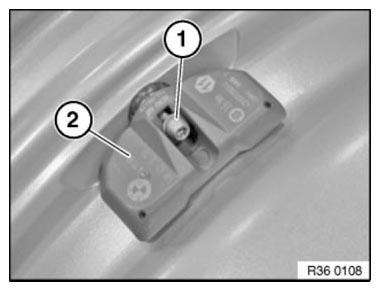

Release Torx socket screw (1) and remove electronic wheel module (2).

Fig 1: Identifying Torx Socket Screw And Electronic Wheel Module

Courtesy of BMW OF NORTH AMERICA, INC.

Release union nut with special tool 00 2 190; if necessary, grip valve insert (1) at cylindrical section of ball head.

Remove valve insert from rim.

Fig 2: Releasing Union Nut Using Special Tool (00 2 190)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove washer (1).

Fig 3: Identifying Washer

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before the installation of new wheel electronics with valve, thoroughly clean the valve bore of the wheel rim!

Also make sure that the valve bore is free of burrs
