36 11 523 Removing and installing/replacing an RDC trigger transmitter (rear)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks: With ACEA/CO2 equipment specification or aerodynamic kit, remove REAR UNDERBODY PANELLING

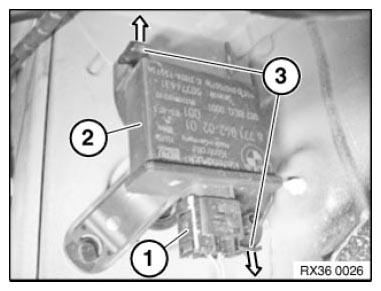

Disconnect plug connection (1). Gently press retaining tabs (3) apart in direction of arrow and remove RDC transmitter (2).
