36 11 121 Removing and installing/replacing an RDC trigger transmitter (front)

WARNING: This page is about a different variant/trim than selected.

Disconnect plug connection (1). Press tab (2) in direction of arrow and remove RDC sensor (3).

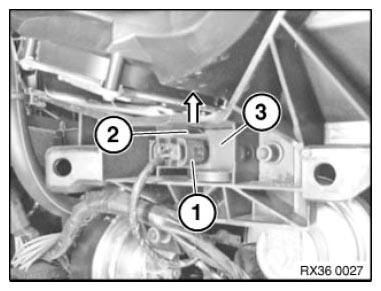

Fig 1: Identifying RDC Sensor Retaining Tabs
G06916863Courtesy of BMW OF NORTH AMERICA, INC.
