36 11 115 Removing and installing/replacing RDC reception aerial

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks: With ACEA/CO2 equipment specification or aerodynamic kit, remove right REAR UNDERBODY PANELLING .

Disconnect plug connection (1). Gently press retaining tab (2) in direction of arrow and remove receiving aerial (3).

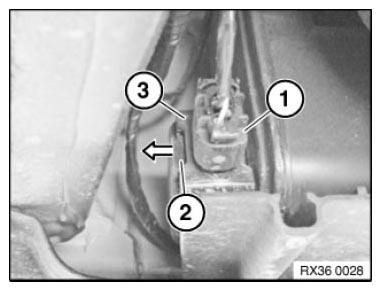

Fig 1: Pressing Receiving Aerial Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Push in receiving aerial (3) until retaining tab (2) snaps into place.
