67 61 005 Removing and installing (replacing) drive with gear for actuating slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front console insert, refer to 61 31 175 REMOVING AND INSTALLING/REPLACING SWITCH FOR SLIDE/TILT SUNROOF

NOTE: Secure drive with gear for actuating slide/tilt sunroof (2) against falling out.

Release screws (1).

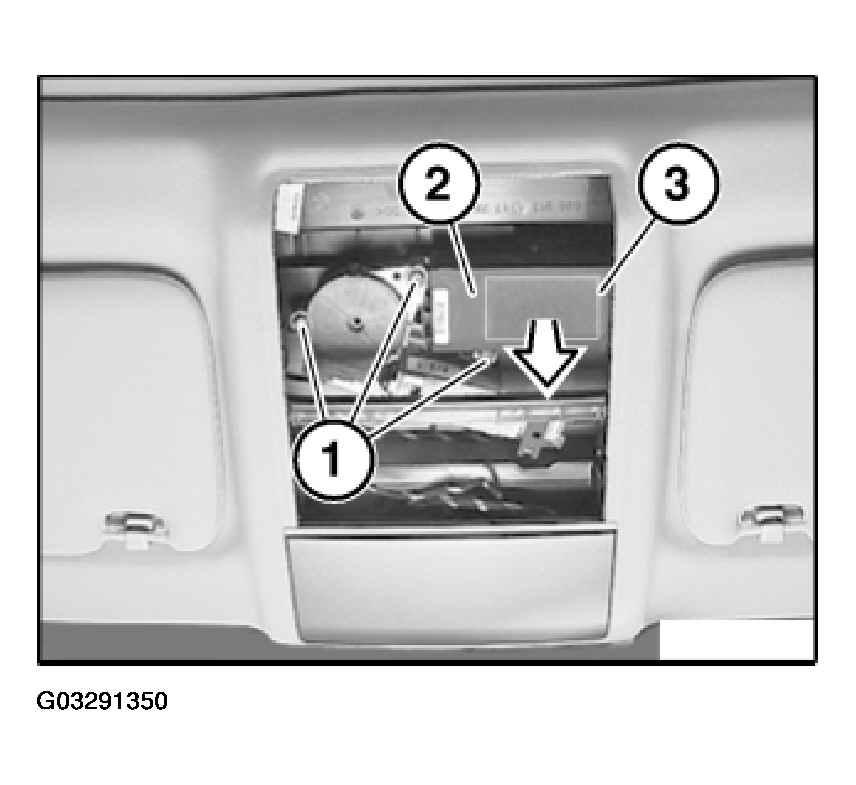

Fig 1: Removing Drive With Gear For Actuating Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Remove drive with gear for actuating slide/tilt sunroof (2) and disconnect plug connection (3).

Installation:

Replace screws (1).

Installation:

Insert gear wheel (1) of drive for actuating slide/tilt sunroof (2) in gear teeth (3).

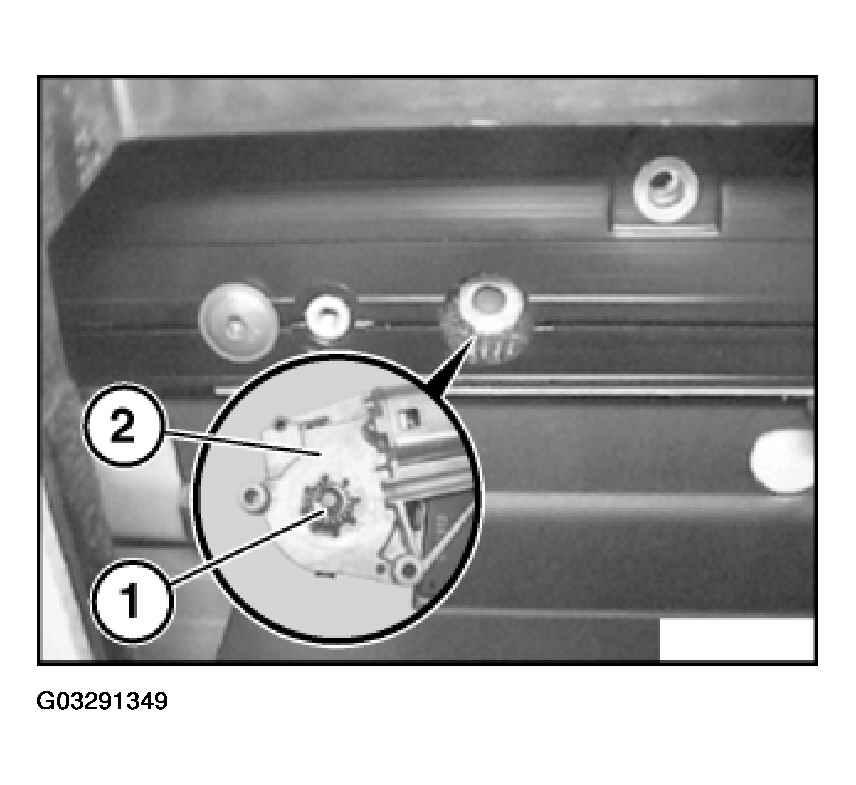

Fig 2: Inserting Gear Wheel Of Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Initialize drive for actuating slide/tilt sunroof. Refer to 54 0... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .

IMPORTANT: Replacement:
Observe notes and instructions in HLI VK6229.
(PuMA measure)

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .

IMPORTANT: There is a risk of permanent battery discharge if programming/coding is not carried out!
