67 66 013 Removing and installing/replacing drive unit for lumbar support on left or right front seat (active seat)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Cut through cable ties (1).

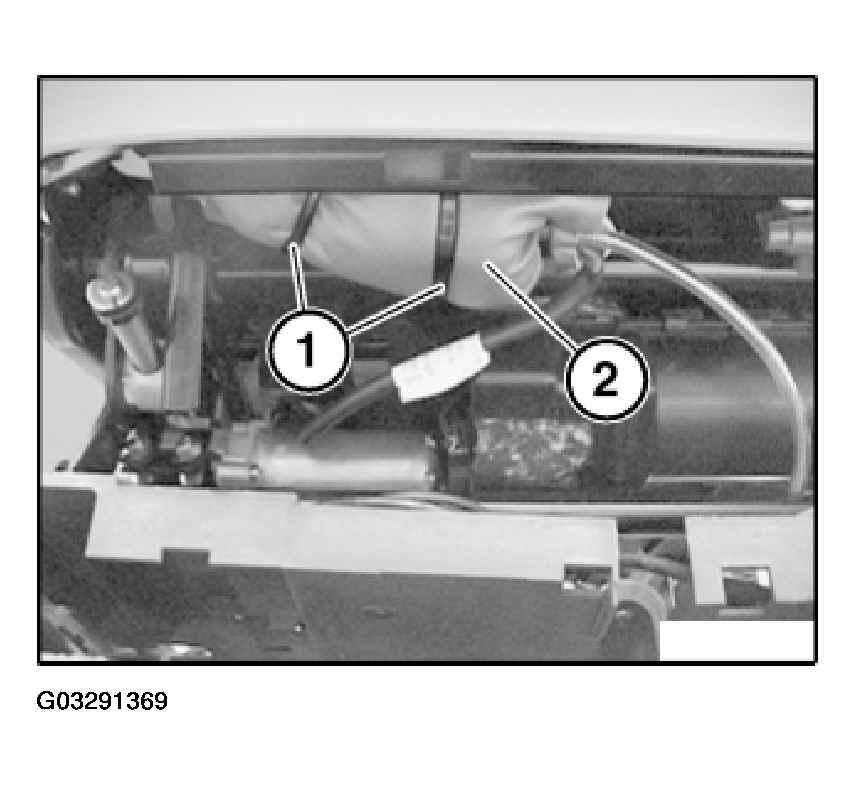

Fig 1: Cutting Through Cable Ties

G03291369

Courtesy of BMW OF NORTH AMERICA, INC.

Set down drive unit for lumbar support (2) with jacket towards bottom.

Cut through cable tie (1) on jacket of drive unit for lumbar support (2).

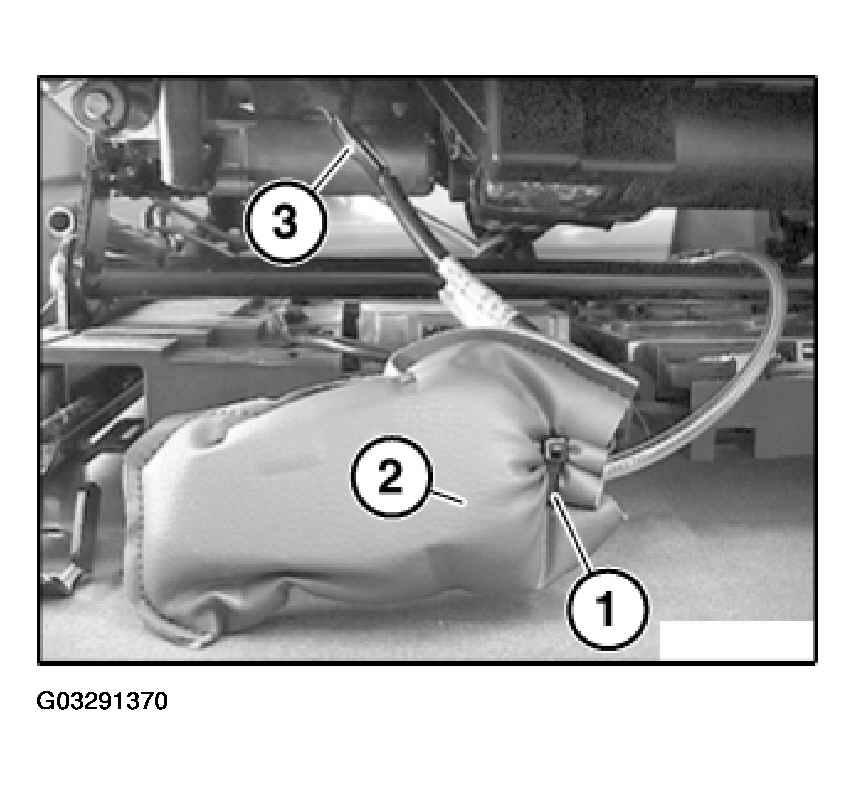

Fig 2: Disconnecting Plug Connection

G03291370

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Detach hose (1) in direction of arrow.

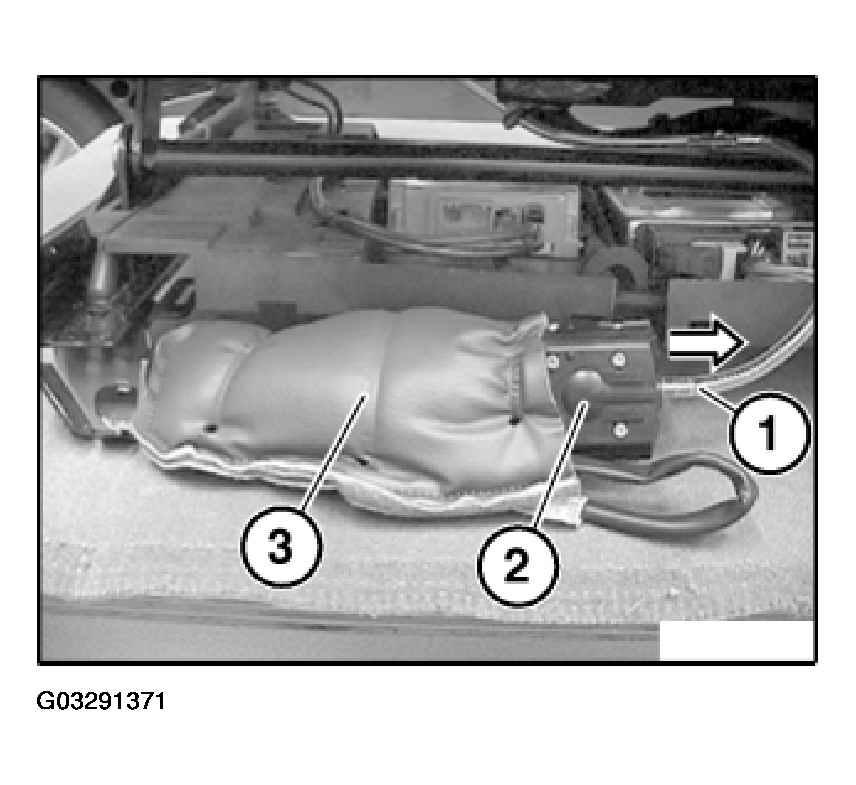

Fig 3: Pulling Drive Unit For Lumbar Support Out Of Jacket

G03291371

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If firmly seated, gently heat hose (1) on drive unit for lumbar support (2).

Installation:

Make sure hose (1) is laid without kinks.

Remove drive unit for lumbar support (2).

Replacement:

Pull drive unit for lumbar support (2) out of jacket (3).
