67 31 610 Removing and installing/replacing drive for seat tilt adjustment (comfort seats in rear compartment)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Remove rear seat padding completely. Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .

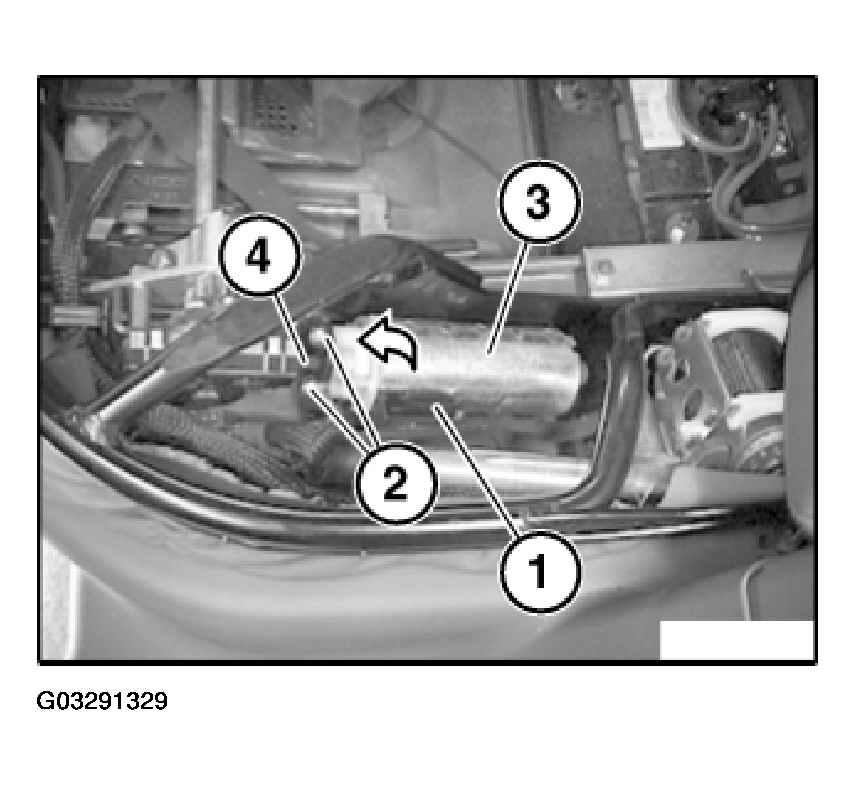

Disconnect plug connection (1). If necessary, cut through cable tie.
Release screws (2).
Detach drive for seat tilt adjustment (3) from drive shaft (4) and feed out in direction of arrow.
Installation:
Make sure drive shaft (4) is correctly seated.
Replacement:
Initialize drive unit for seat tilt adjustment. Refer to 67 31... NOTES ON INITIALIZING ELECTRIC SEAT SERVODRIVES .
