67 31 600 Removing and installing/replacing drive for seat longitudinal/tilt adjustment (comfort seats in rear compartment)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear seat padding completely. Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .

Detach retainers (1) at both rubber straps and pull gap cover (2) forwards slightly.

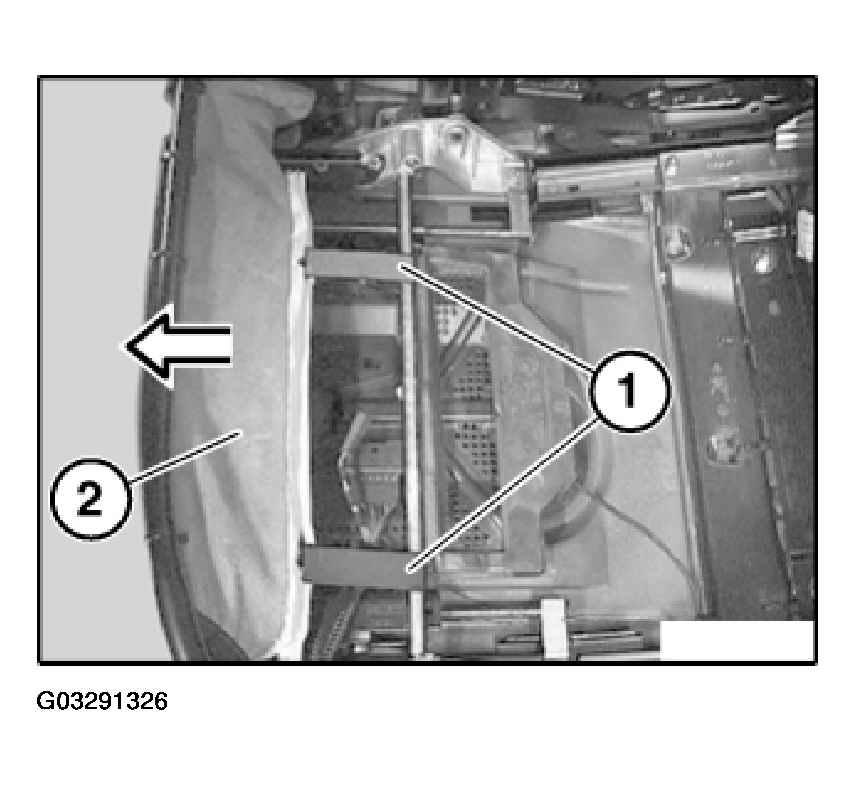

Fig 1: Detaching Retainers At Both Rubber Straps

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through cable ties (1) and pull gap cover (2) downwards.

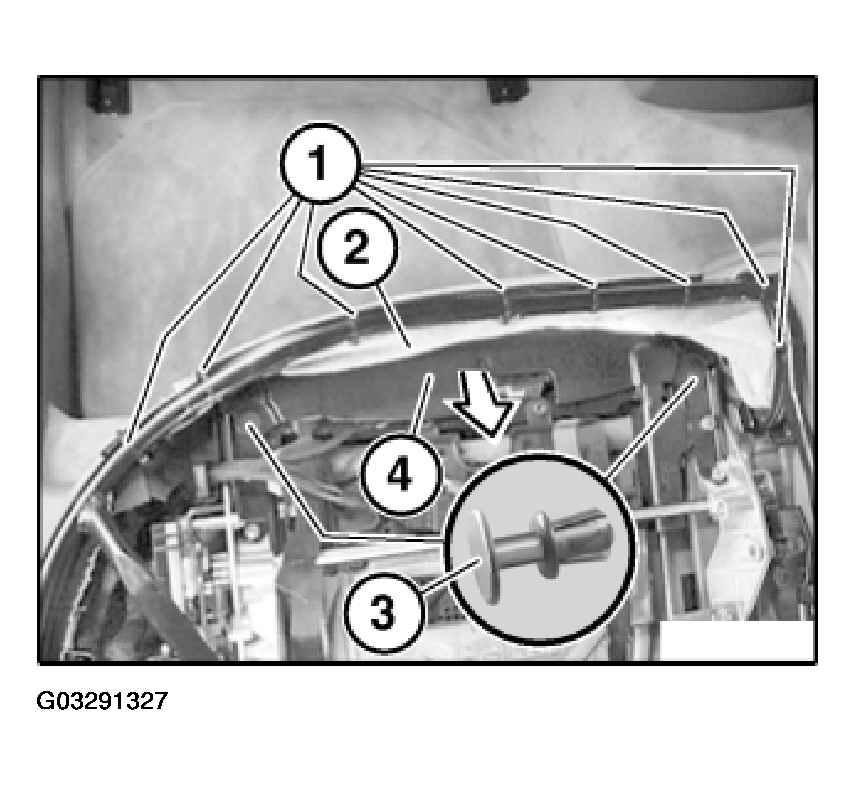

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure cable ties are correctly positioned.

Release both clips (3) and remove trim (4) towards top.

Disconnect plug connection (1).

Release screws (2).

Detach drive for seat longitudinal/tilt adjustment (2) from drive shafts (4) and feed out in direction of arrow.

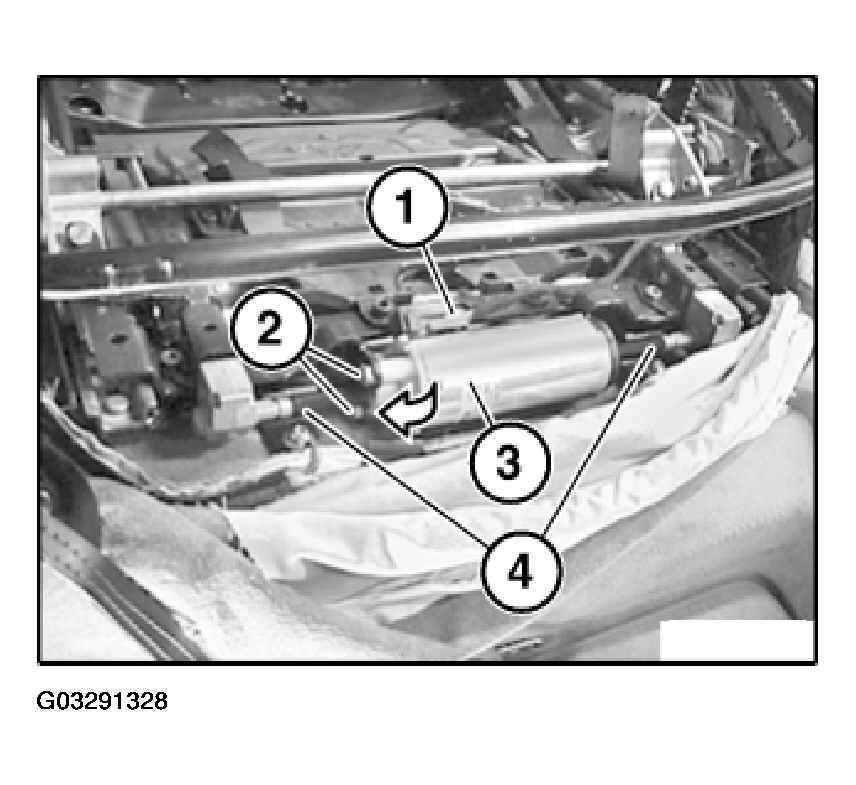

Fig 3: Removing Drive For Seat Longitudinal/Tilt Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure drive shafts (4) are correctly seated.

Replacement:

Initialize drive for seat longitudinal/tilt adjustment. Refer to 67 31... NOTES ON INITIALIZING ELECTRIC SEAT SERVODRIVES .
