67 31 500 Removing and installing/replacing drive unit for longitudinal seat adjustment

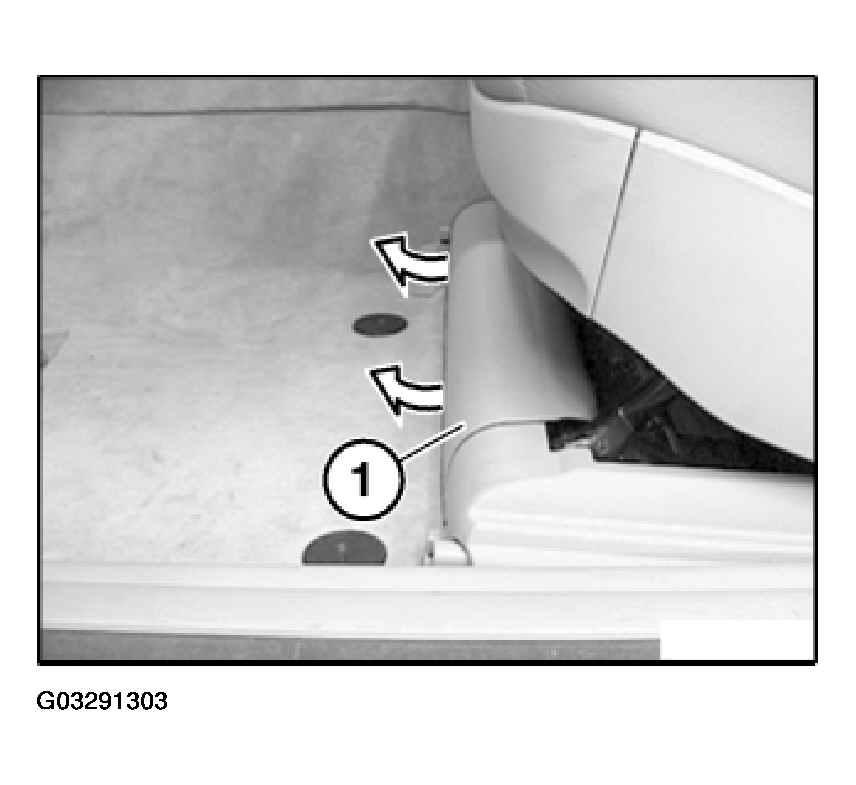

Unclip trim in upper rail at front (1) in direction of arrow and remove.

Fig 1: Removing Trim In Upper Rail At Front

Courtesy of BMW OF NORTH AMERICA, INC.

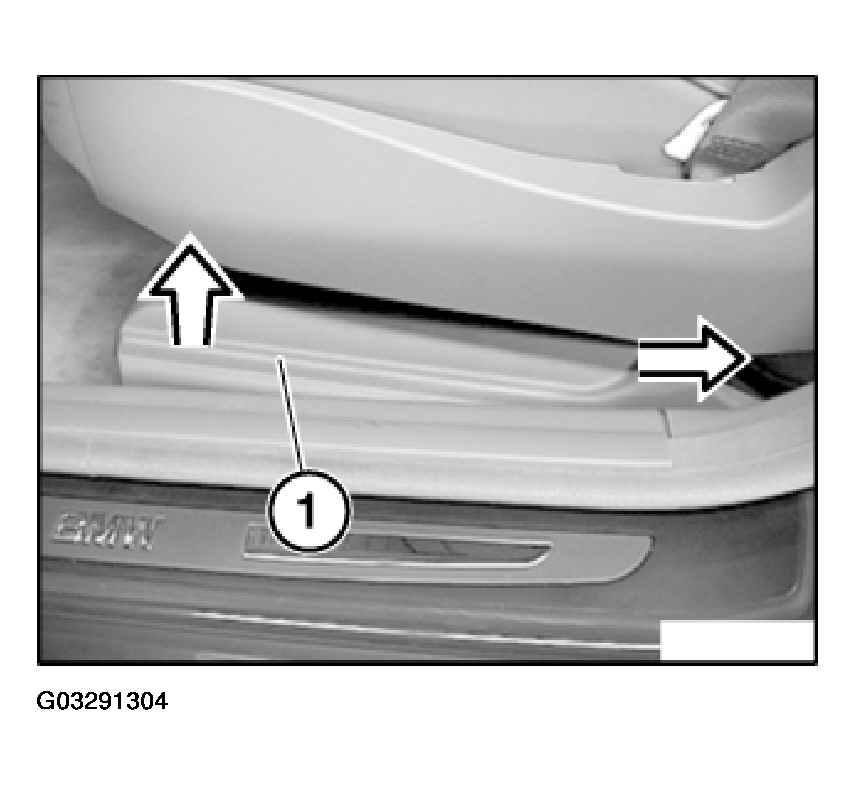

Unclip outer trim on upper rail (1) at front in direction of arrow and feed out towards rear.

Fig 2: Removing Outer Trim On Upper Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Version up to 03/2003:

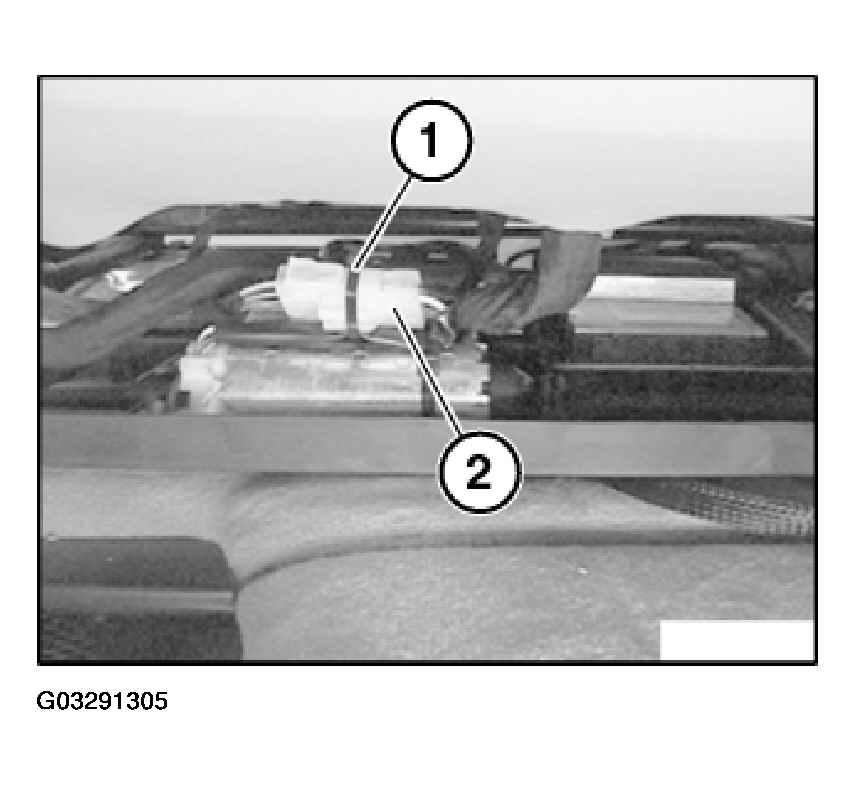

Cut through cable tie (1).

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2).

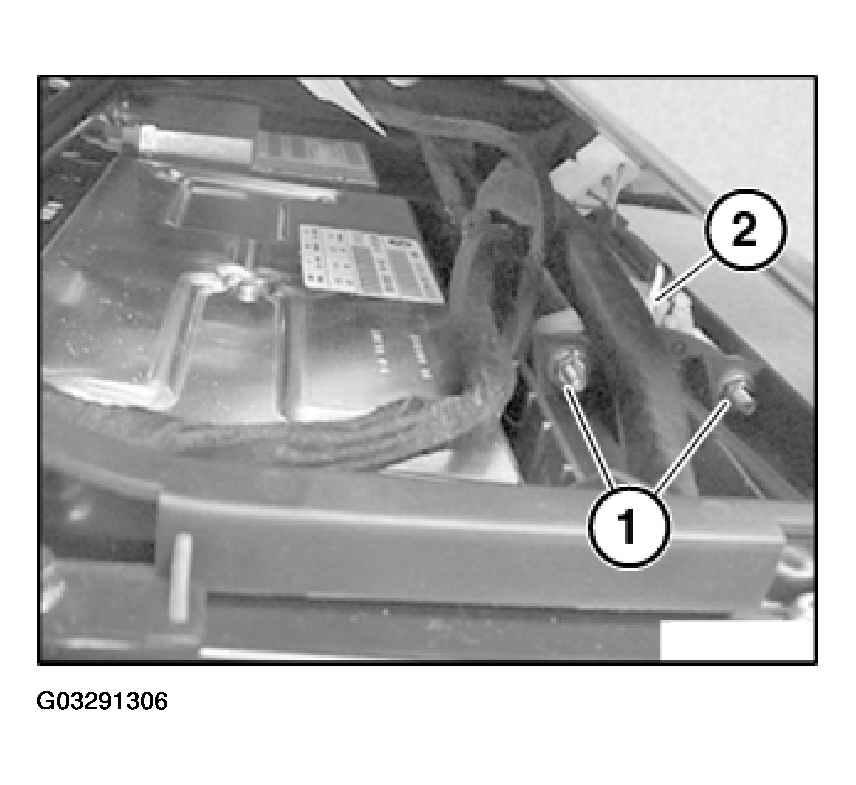

Unscrew nuts (1). If necessary, grip screws and remove from drive unit for longitudinal seat adjustment (2).

Fig 4: Removing Screws From Drive Unit For Longitudinal Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

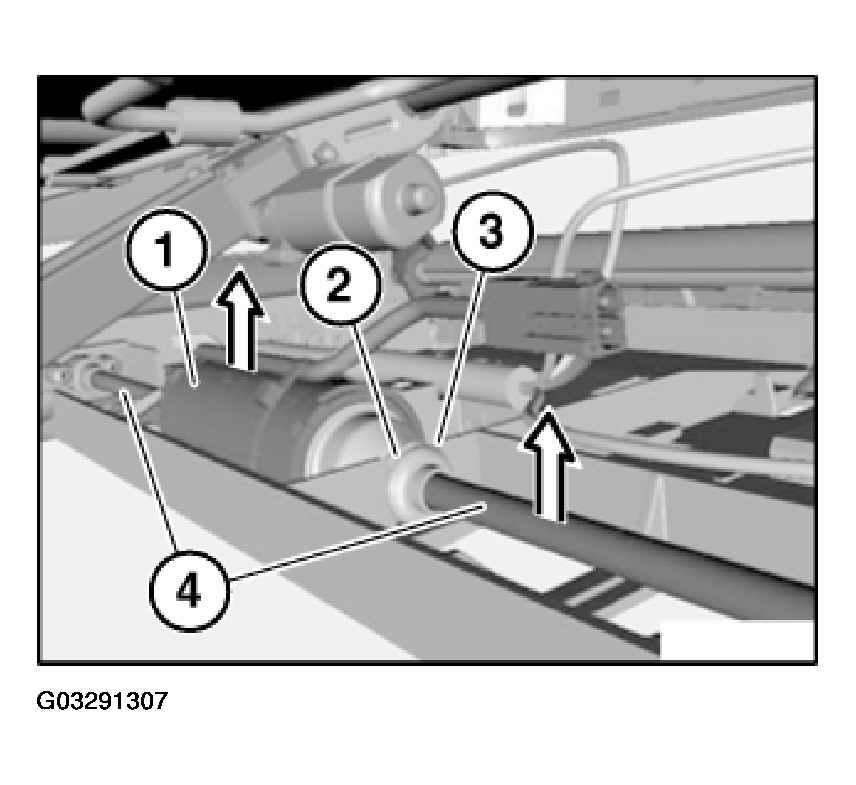

Lever drive unit for longitudinal seat adjustment (1) with rubber grommet (2) upwards out of guide (3).

Fig 5: Disconnecting Drive Shafts

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect both drive shafts (4) from drive unit for longitudinal seat adjustment (1).

Installation:

Make sure rubber grommet (2) is correctly seated in guide (3).

Make sure both drive shafts (4) are correctly seated.

Build date from 03/2003:

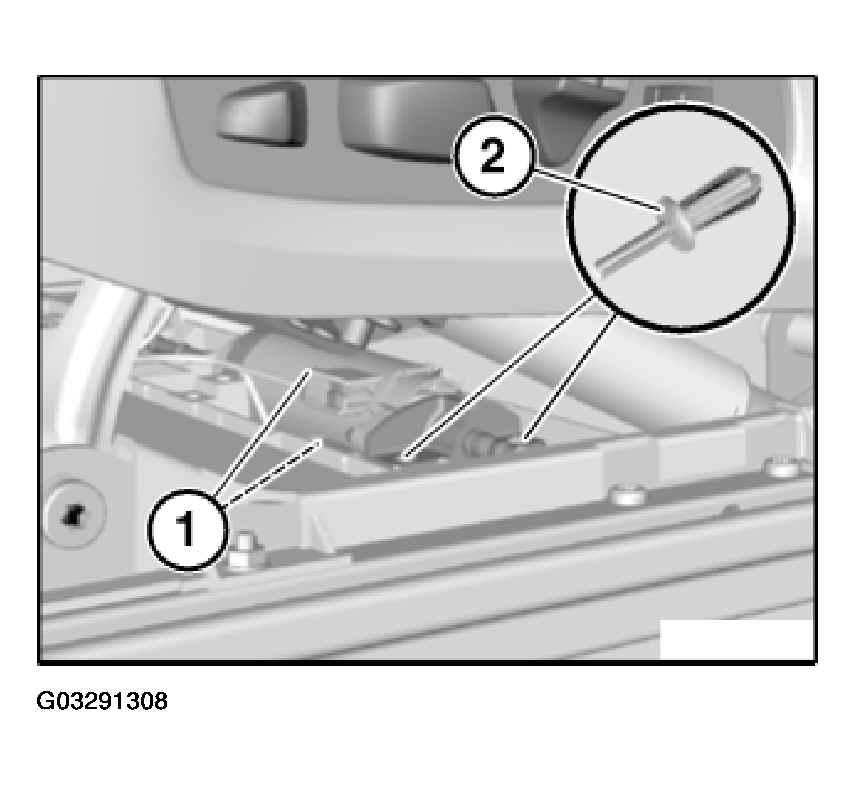

Disconnect plug connections (1).

Fig 6: Releasing Expander Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Release expander rivets (2), replace if necessary.

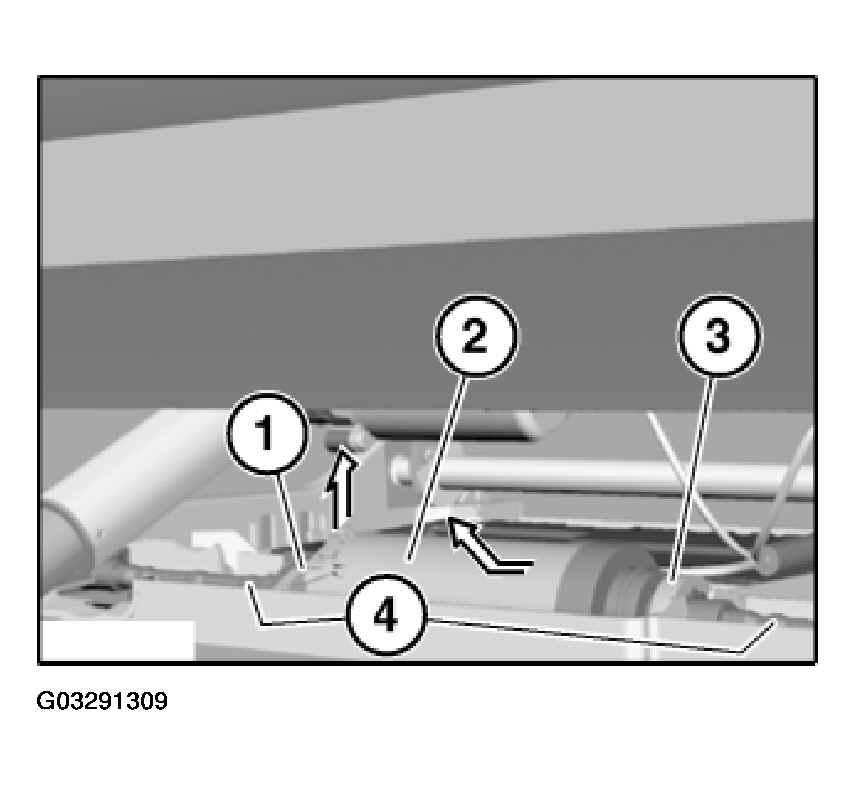

Raise flange (1) with drive unit for longitudinal seat adjustment (2) slightly and detach from left drive shaft.

Fig 7: Locating Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out drive unit for longitudinal seat adjustment (2) in direction of arrow and detach from right drive shaft.

Installation:

Make sure guide clips (3) and both drive shafts (4) are correctly seated.

Comfort seat, all build dates:

Replacement:

Initialize drive unit for longitudinal seat adjustment. Refer to 67 31... NOTES ON INITIALIZING ELECTRIC SEAT SERVODRIVES .
