67 32 650 Replacing fan for rear seat surface (comfort seat)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Remove padding for rear seat. Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .

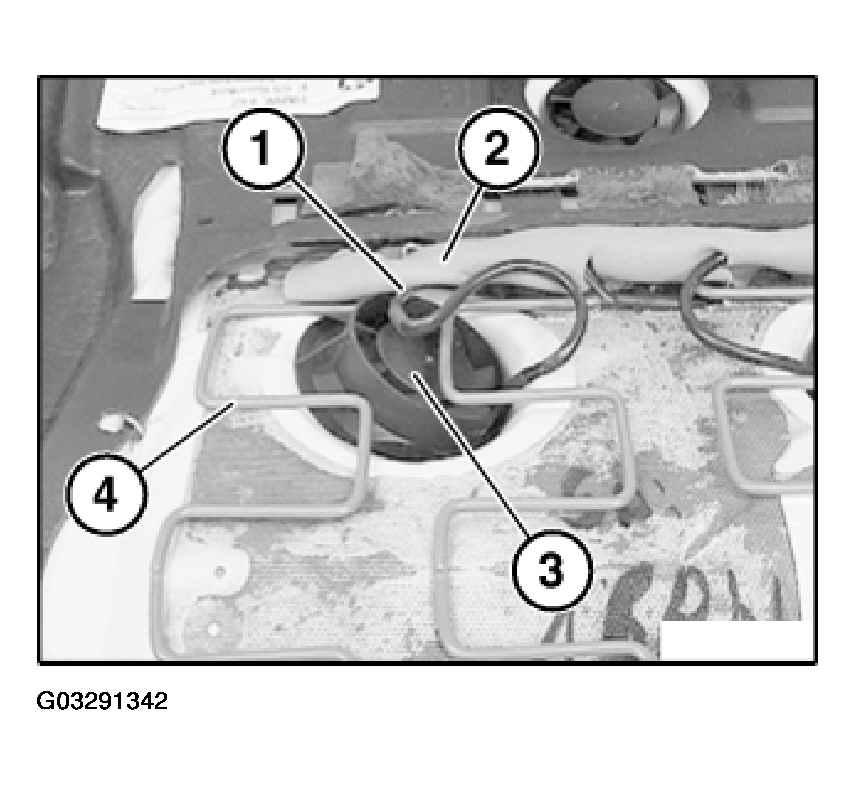

Pull lead (1) slightly out of jacket (2) and disconnect plug connection behind.
Feed fan for seat surface (3) as illustrated out of seat frame (4) and remove.
