67 32 620 Replacing fan for thigh support on front seat (comfort seat)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove thigh support. Refer to 52 17... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT THIGH SUPPORT .

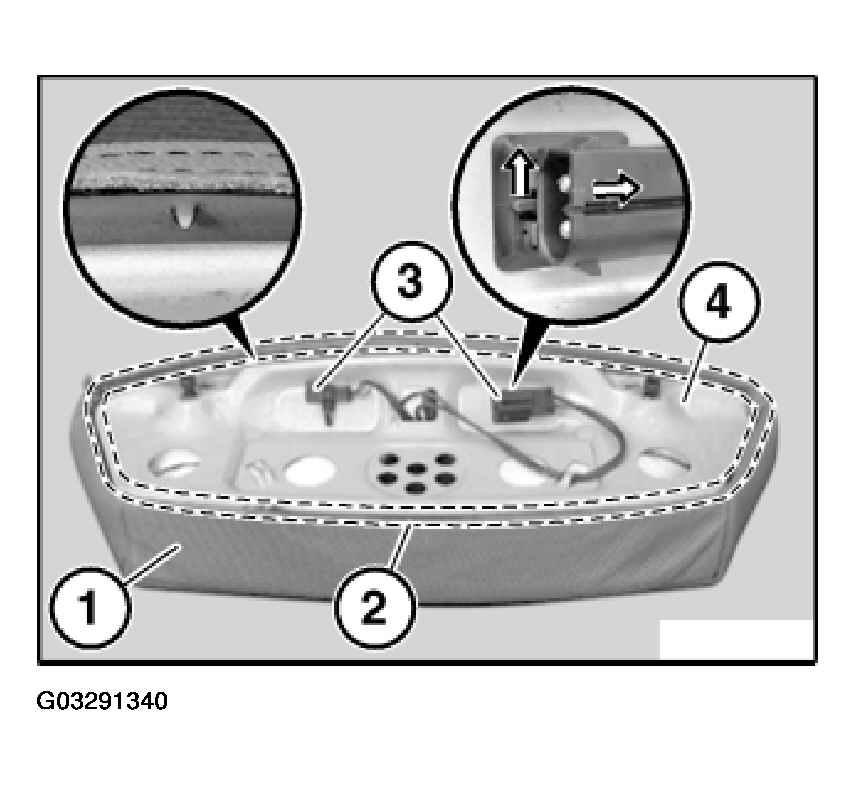

Unhook seat cover (1) in area (2).

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out plug housing (3) through opening in trim (4).

Remove trim (4).

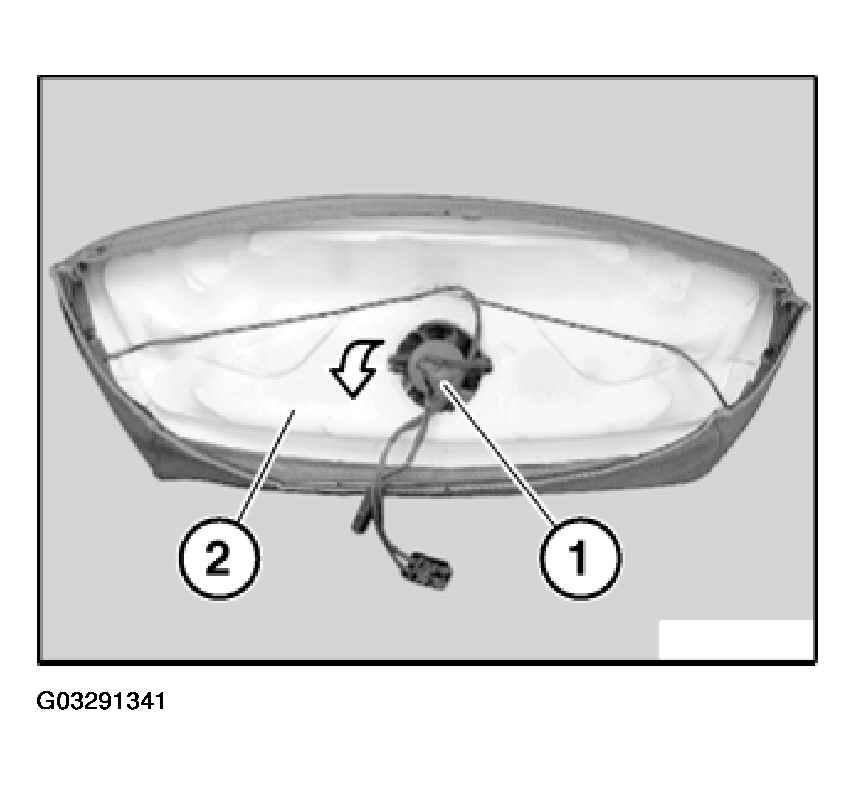

Feed fan (1) in direction of arrow out of thigh support cushion section (2) and remove.

Fig 2: Removing Fan

Courtesy of BMW OF NORTH AMERICA, INC.
