67 32 610 Replacing fan for backrest on front seat (comfort seat)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove both rear panels on front seat backrest, refer to 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT)

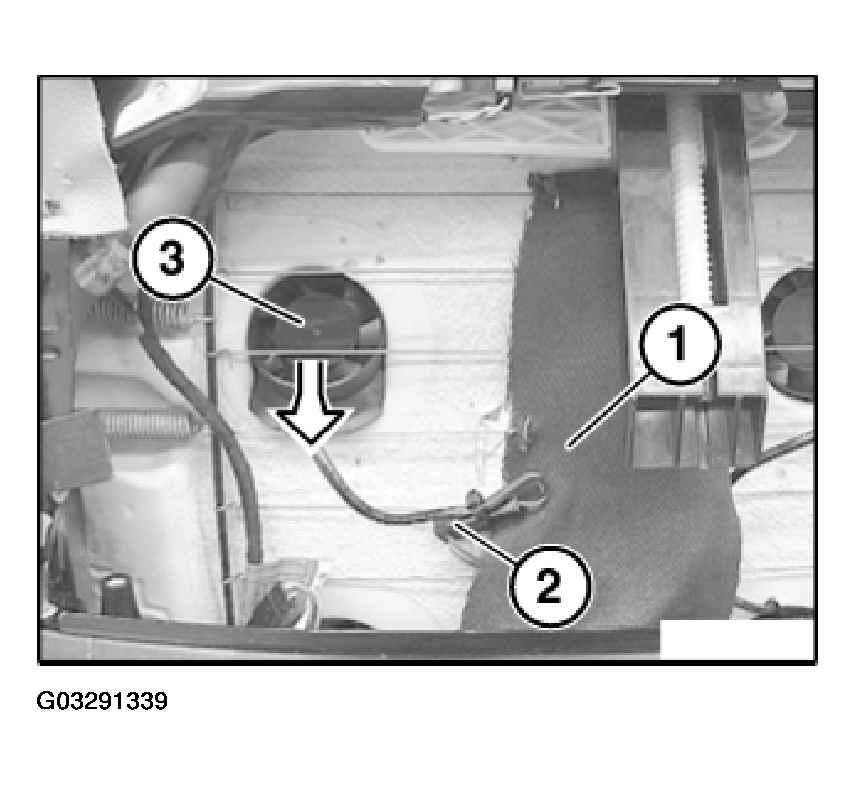

Lay felt (1) slightly to one side and disconnect plug connection (2). If necessary, cut through cable tie.
Installation:
Ensure correct cable routing.
If necessary, raise load-area net in working area.
Feed fan for backrest (3) in direction of arrow out of cushion section and remove.
