65 12 072 Removing and installing (replacing) amplifier (Top hi-fi system)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Disconnect battery negative lead, refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD
- Remove luggage compartment wheel arch trim on left, refer to 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM
NOTE:
Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS
.

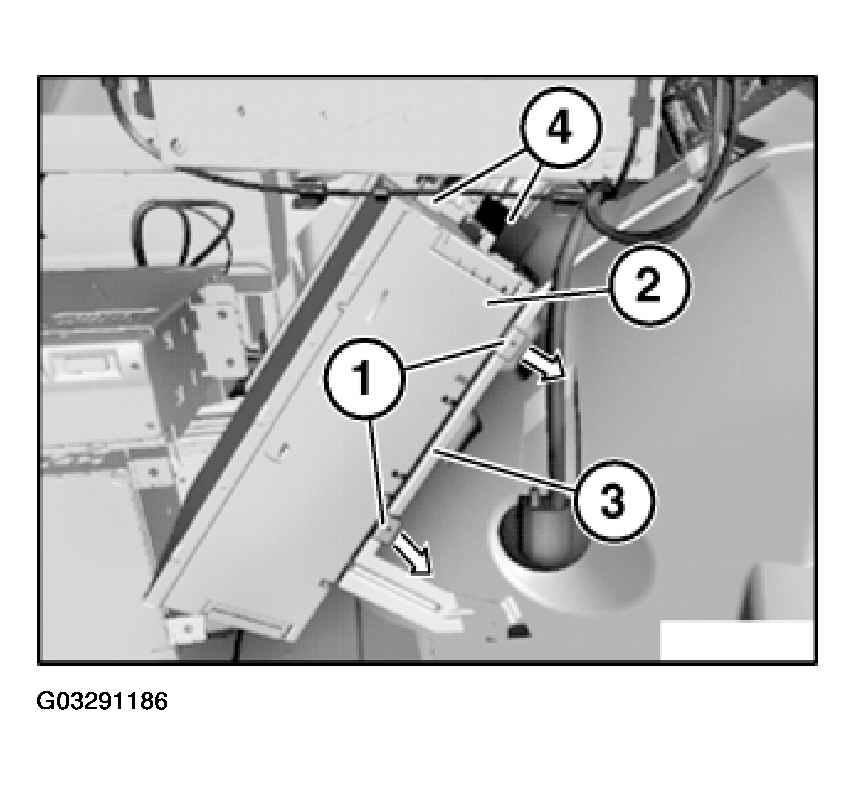

Pull out retaining plates (1) in direction of arrow.
Installation:
Make retaining plates (1) are correctly seated.
Remove amplifier (2) from holder (3).
Unlock plug connections (4) and disconnect.
Replacement:
Carry out coding/programming.
Observe following IDC specifications:
- Programming
- Coding
- Car & Key Memory
- CD "CIP"
