65 77 730 Removing and installing (replacing) vehicle center sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note AIRBAG safety instructions! Refer to AIR BAG SAFETY PRECAUTIONS .
Incorrect handling can activate AIRBAG and cause injury.

NOTE: Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove center armrest. Refer to 51 16 195 REMOVING AND INSTALLING CENTRE ARMREST (FRONT) .

Unfasten plug connection (1) and disconnect.

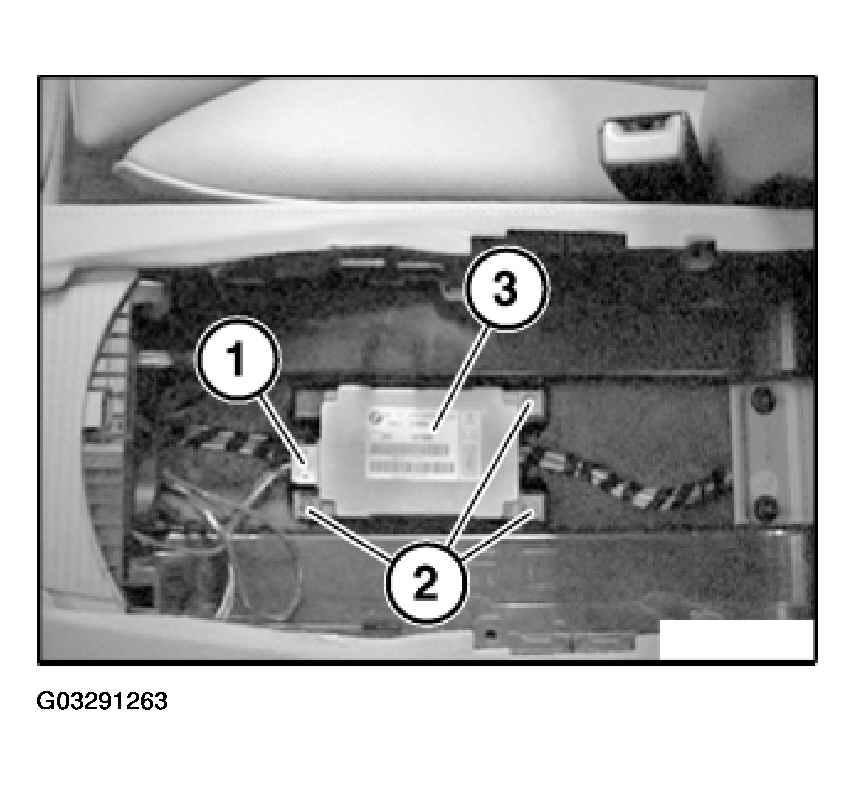

Fig 1: Removing Vehicle Center Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove vehicle center sensor (3).

Installation:

Tightening torque 65 77 6AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES - 745I - E65 .

Make sure sensor is mounted without play.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

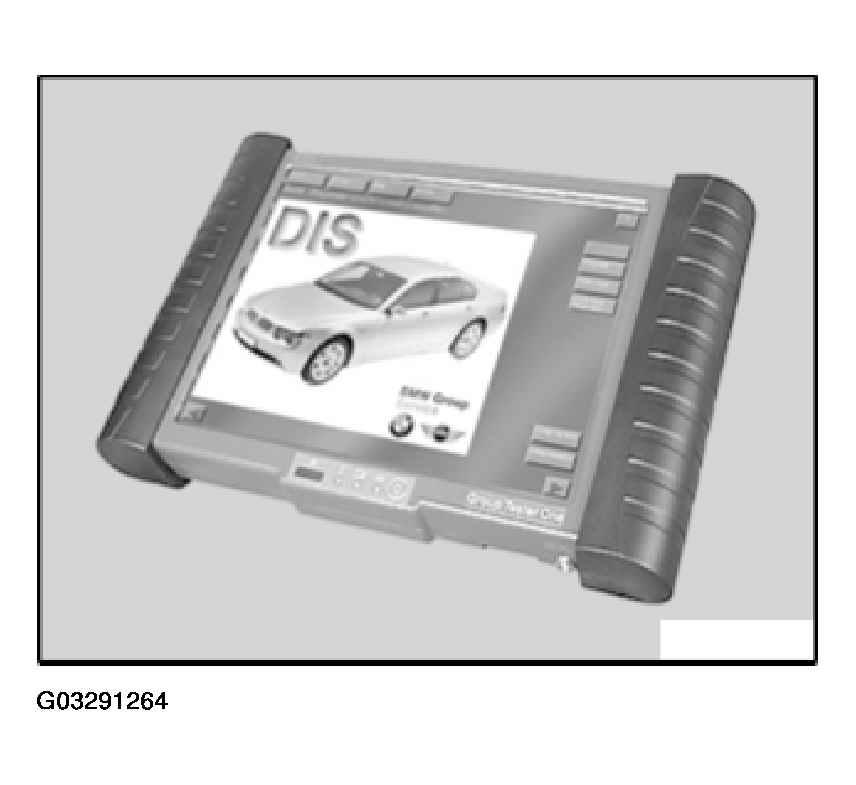

Fig 2: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
