63 21 300 Replacing circuit board for left or right rear light (up to 03/2005) (on side panel)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear light, refer to 63 21 180 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL)

Open catch (1) and fold out circuit board (2).

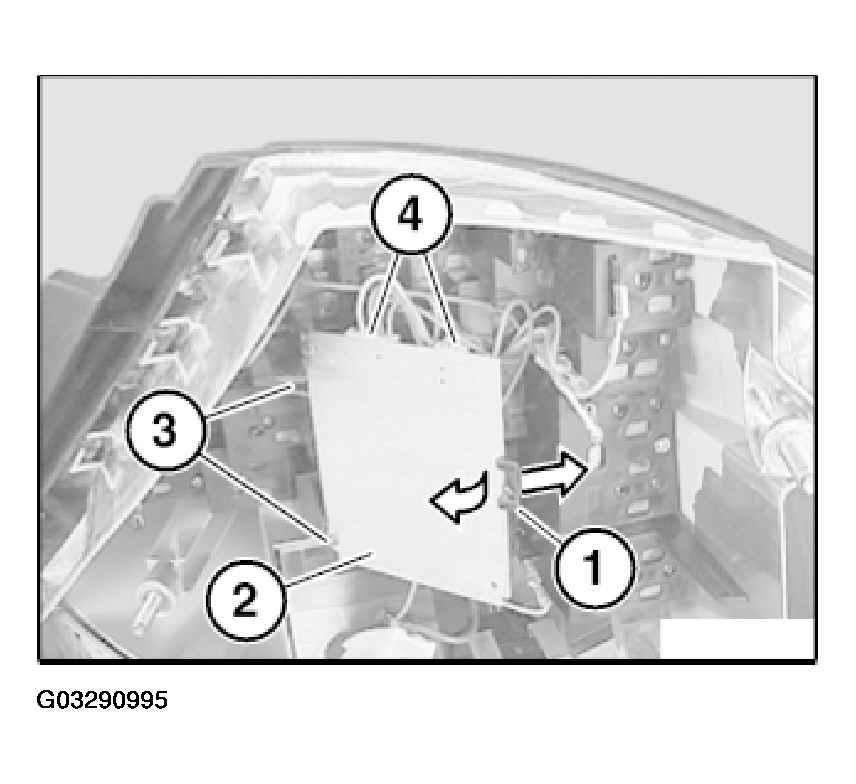

Fig 1: Removing Circuit Board

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (4) and remove circuit board (2).

Installation:

Make sure circuit board (2) is correctly seated on supports (3).

Release screws (1).

Remove circuit board for rear light (2) from rear light (3).

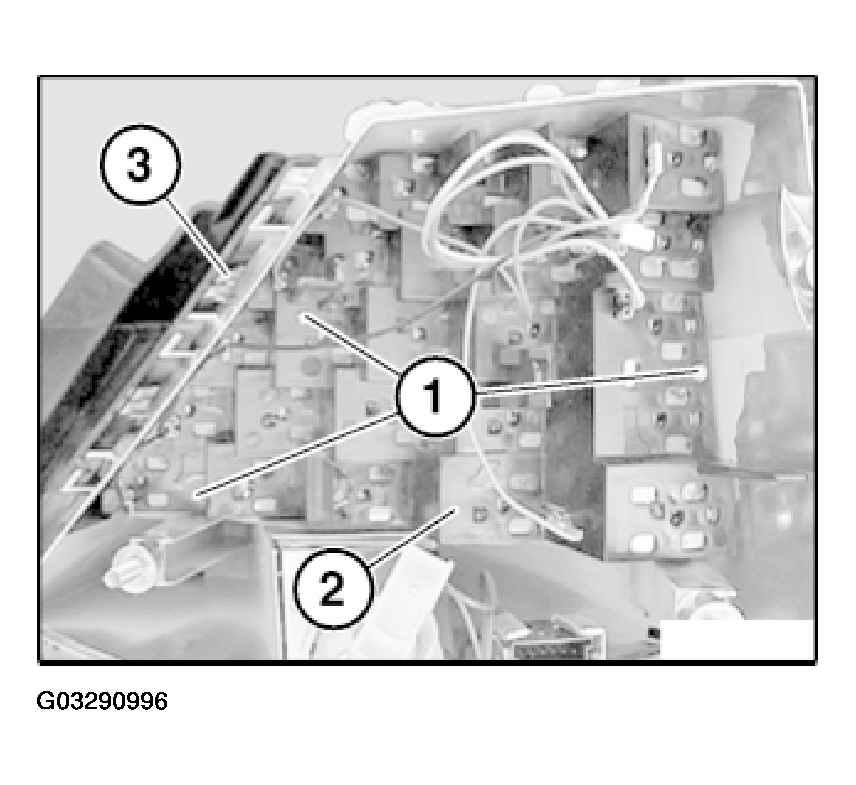

Fig 2: Removing Circuit Board For Rear Light From Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.
