63 31 085 Removing and installing/replacing luggage compartment lamp (on rear lid)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for handling light bulbs (interior lights). Refer to 63 99... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

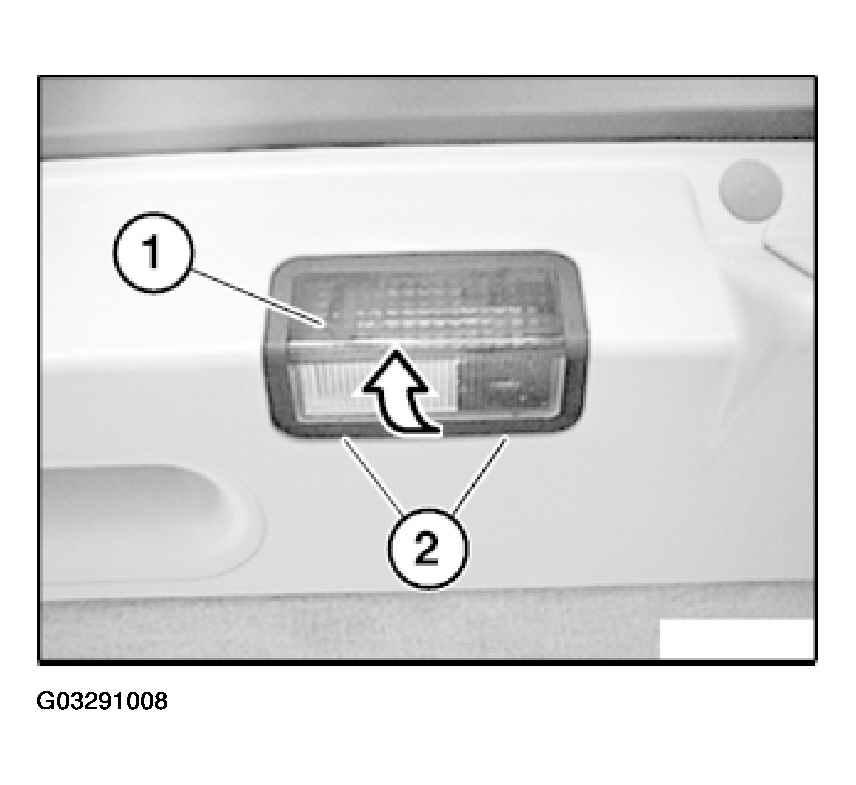

Lever out luggage compartment lamp (1) at openings (2) in direction of arrow.

Fig 1: Removing Luggage Compartment Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath and remove luggage compartment lamp (1).

Replacement:

If necessary, convert bulbs.
Note bulb type. Refer to LIGHTS - TECHNICAL DATA - 745I - E65 .
