Version with center armrest storage tray (2) only:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Attach special tools 00 9 341 as illustrated. See Figure.

Unclip oddments tray in center armrest (2) in direction of arrow and remove.

Disconnect plug connection (1).

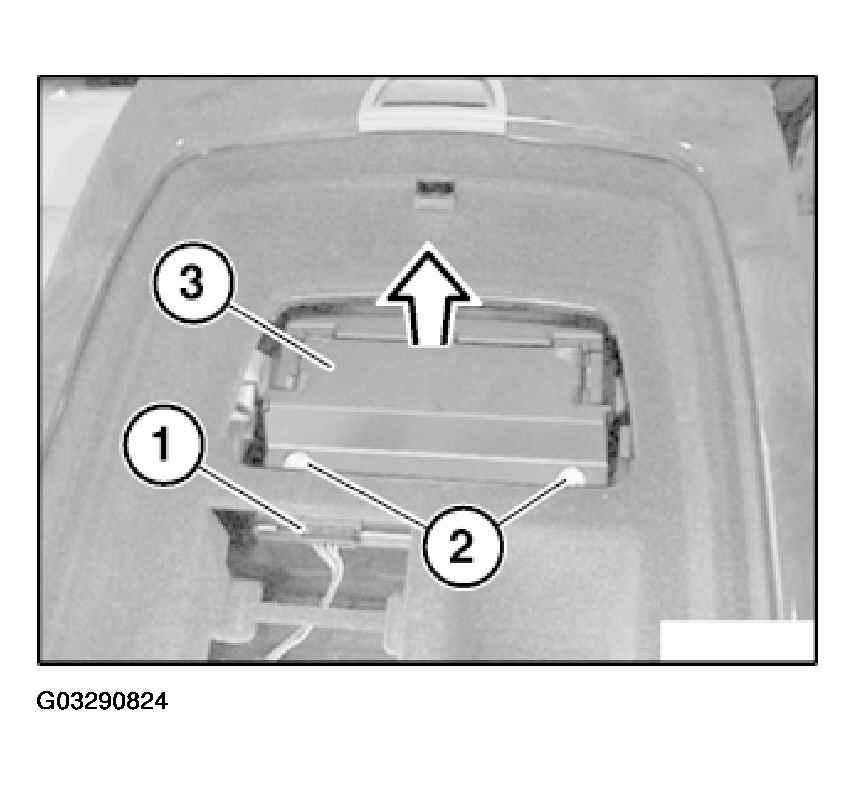

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Pull back control unit in center armrest at rear (3), lift at front and feed out towards top.

Unlock covers (1) and fold up.

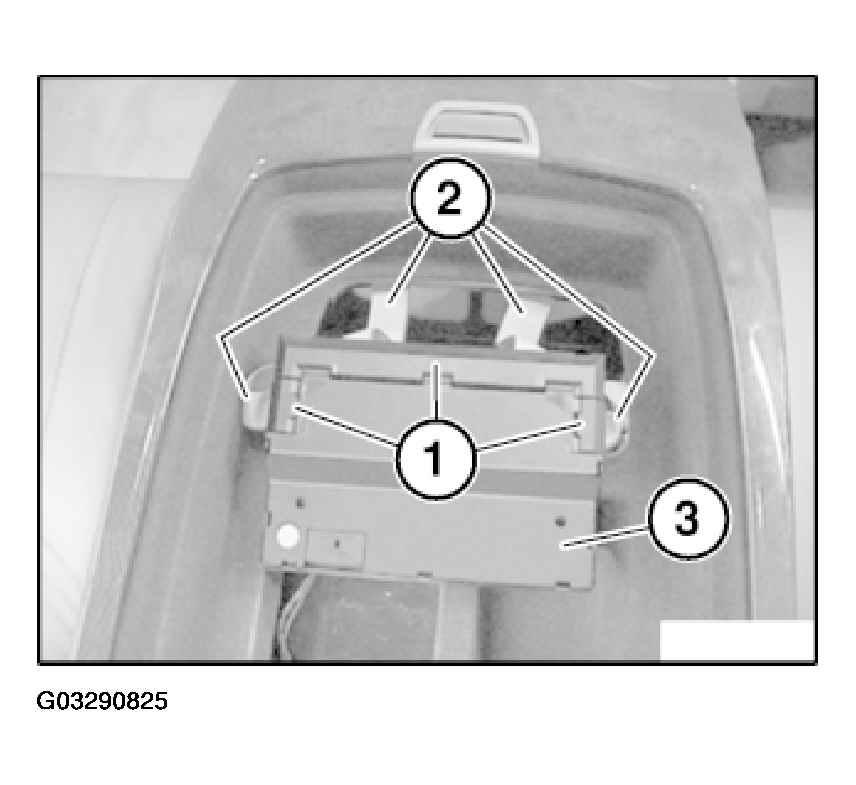

Fig 2: Removing Control Unit In Center Armrest At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect all ribbon cables (2).

Remove control unit in center armrest at rear (3).

Replacement:

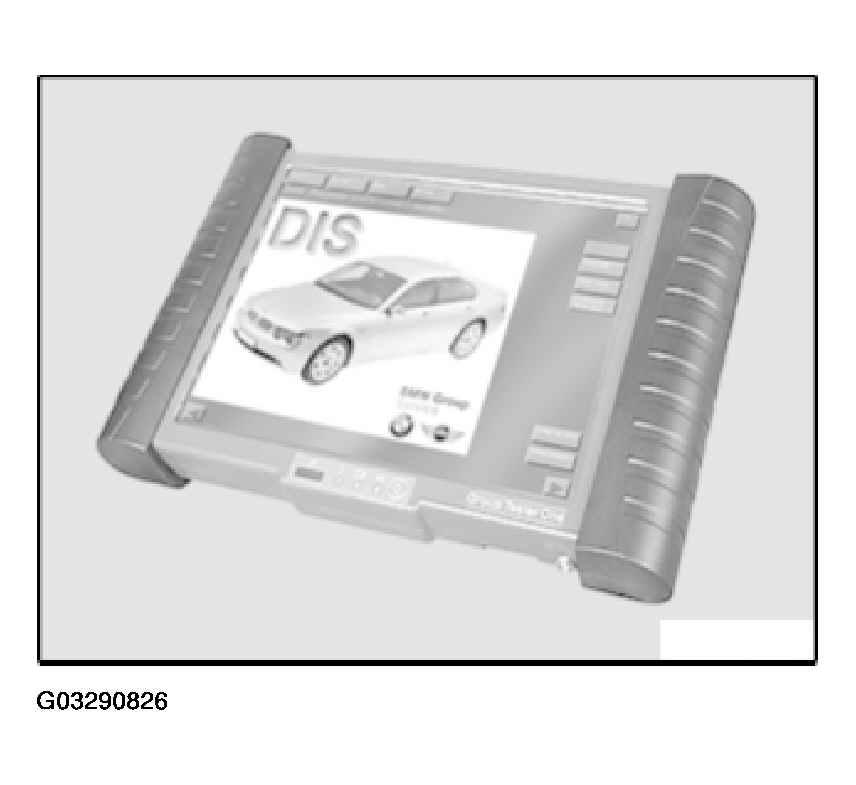

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

Fig 3: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
