54 12 270 Removing and installing/replacing adjuster for glass slide/tilt sunroof lid

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove glass sunroof lid. Refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDE/TILT SUNROOF LID .

Close glass sunroof lid (zero position).

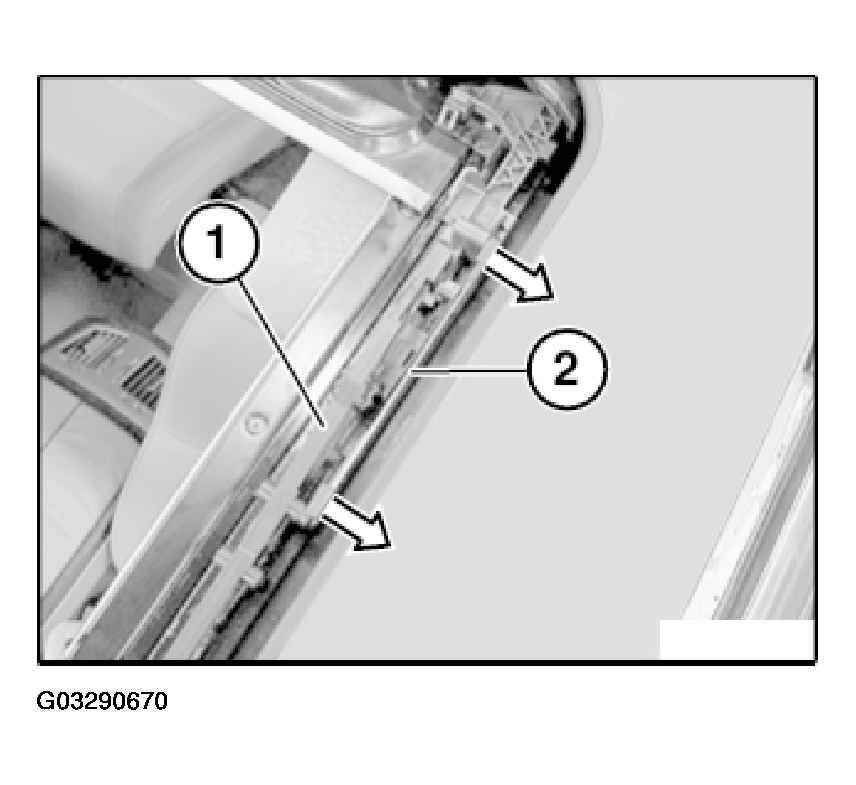

Unhook lever (2) from adjuster (1).

Fig 1: Unhooking Lever From Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

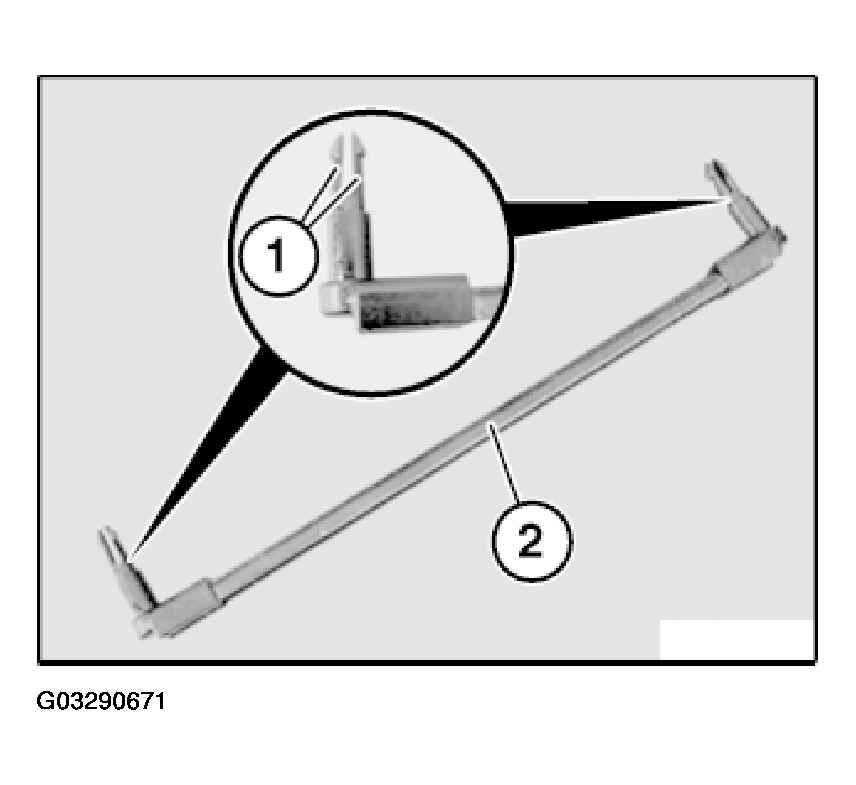

Locking catches (1) of lever (2) must not be damaged.

Fig 2: View Of Locking Catches Of Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

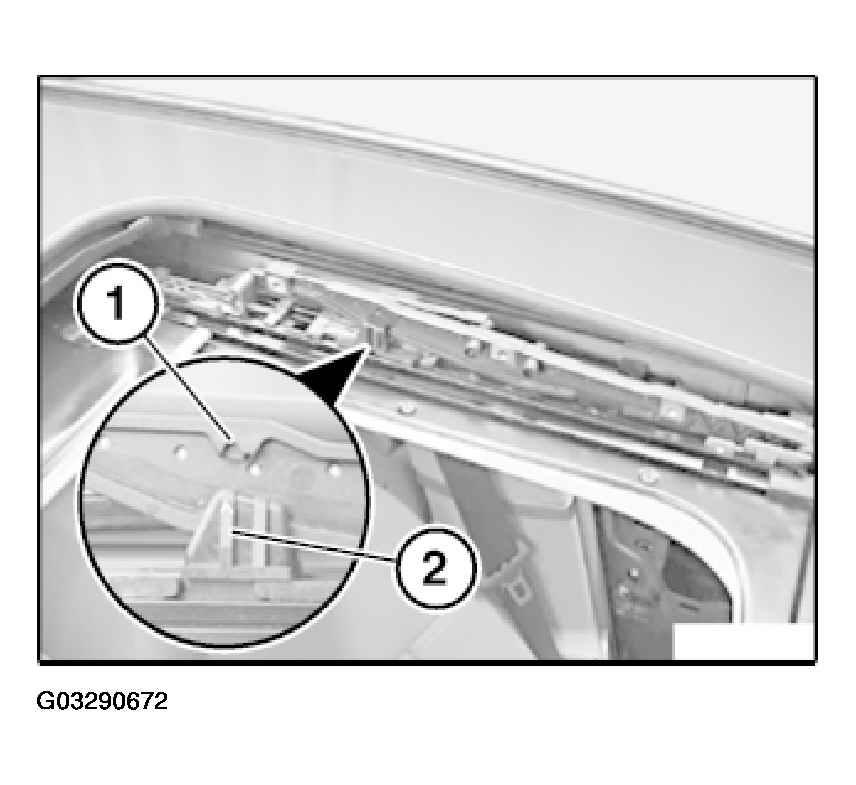

When glass sunroof is in zero position, marking (1) on adjuster must be positioned over marking (2) on slider.

Fig 3: Identifying Marking On Adjuster & Slider

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, move adjuster or slider.

Move glass sunroof lid into "`lift position".

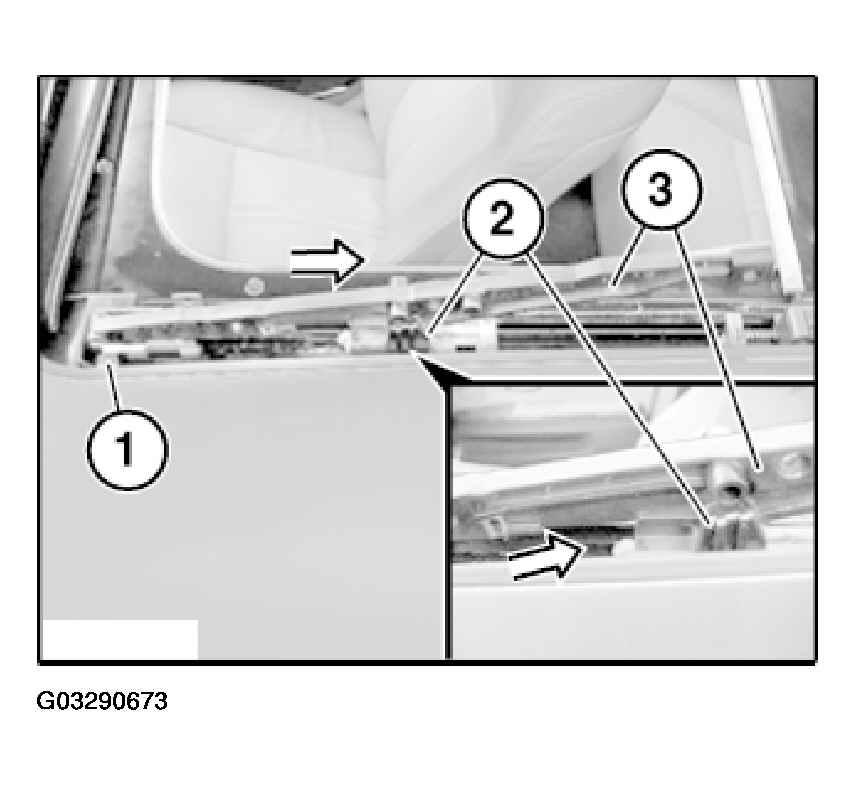

Pull adjuster (3) and carriage (1) together towards rear until adjuster (3) can be unhooked from slider (2).

Grip slider (2) in so doing.

Fig 4: Pulling Adjuster And Carriage

Courtesy of BMW OF NORTH AMERICA, INC.

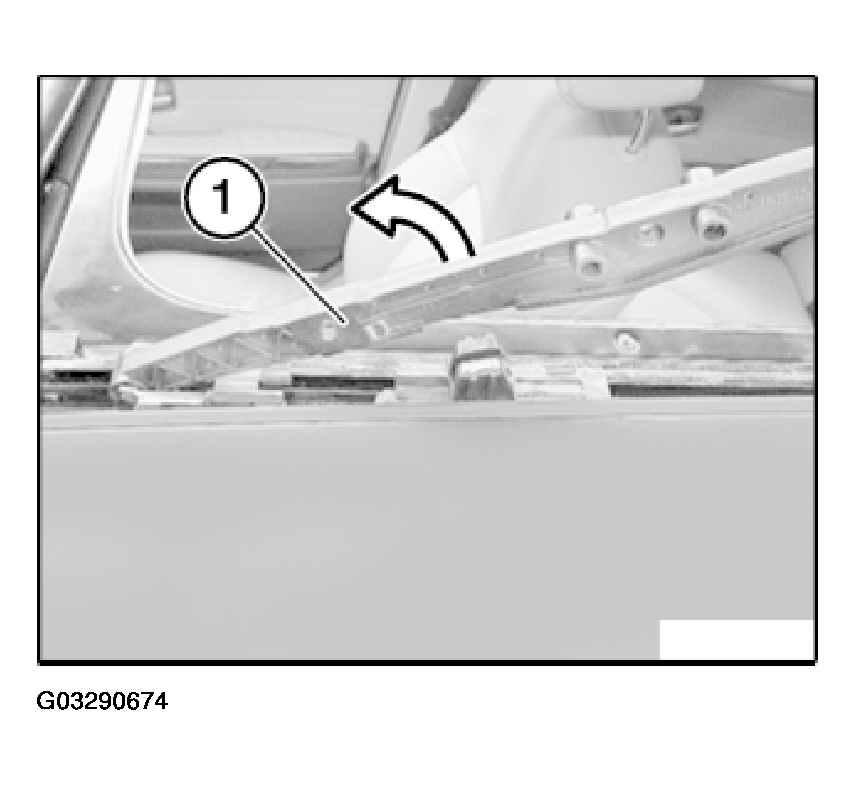

Twist adjuster (1) upwards.

Fig 5: Twisting Adjuster Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

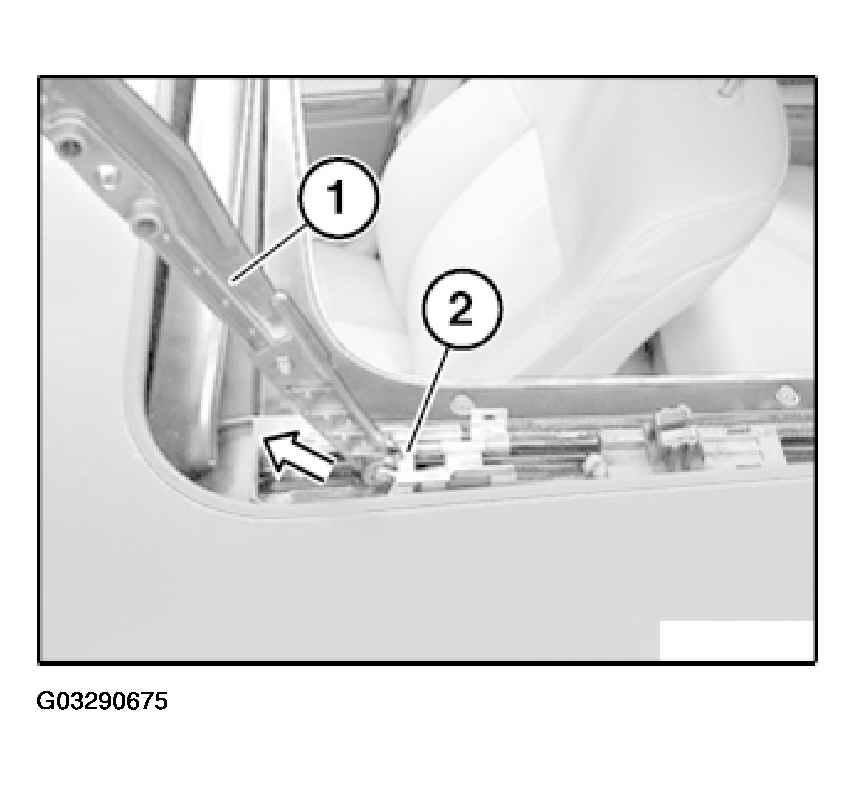

Unhook adjuster (1) from carriage (2).

Fig 6: Unhooking Adjuster From Carriage

Courtesy of BMW OF NORTH AMERICA, INC.
