54 12 136 Removing and installing/replacing headliner for glass slide/tilt sunroof lid

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If headliner is difficult to move, apply a light coat of Renax GL1 (manufactured by Fuchs) to guide duct.

Remove glass sunroof lid. Refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDE/TILT SUNROOF LID .

Slowly pull headliner (floating) fully towards front.

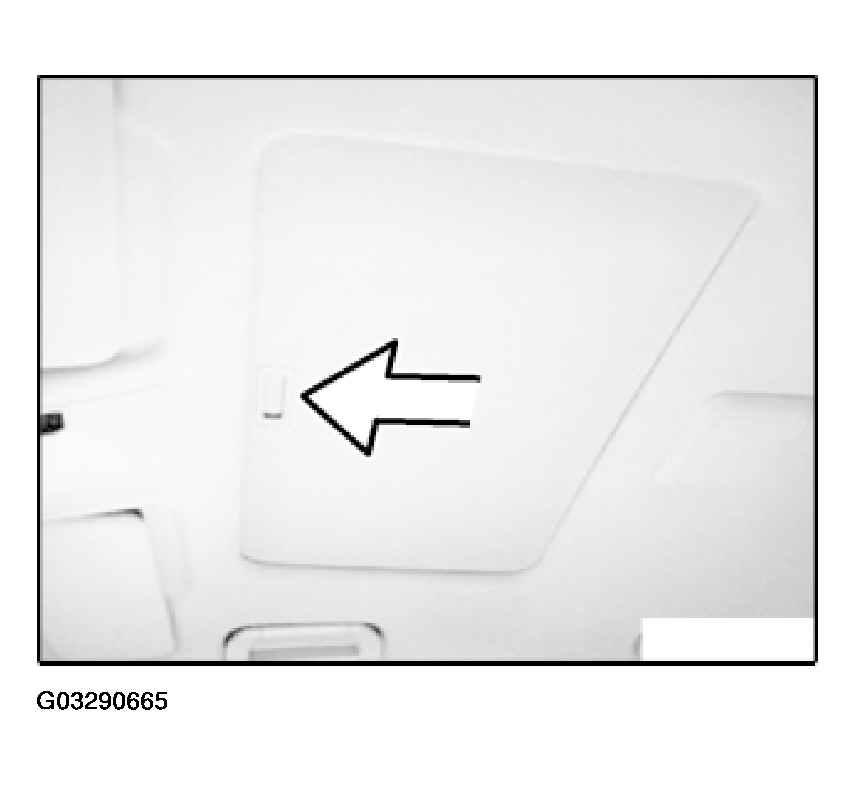

Fig 1: Pulling Headliner Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

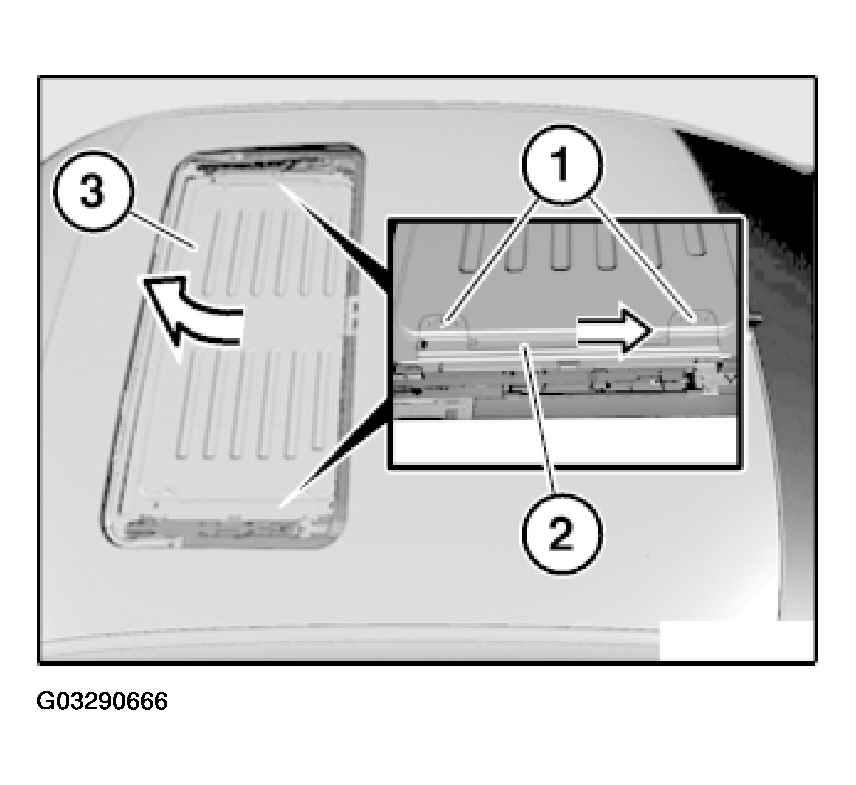

Fig 2: Removing Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly slide spring slider (2) towards rear.

NOTE: Make sure all parts are clean. If necessary, wear gloves.

Remove headliner (3) towards top.
