54 12 117 Replacing seal for glass slide/tilt sunroof lid
WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Follow repair instructions for bonded seals on slide/tilt sunroof, refer to 54 0 ... REPAIR INSTRUCTIONS FOR BONDED SEALS
- Open glass lid completely

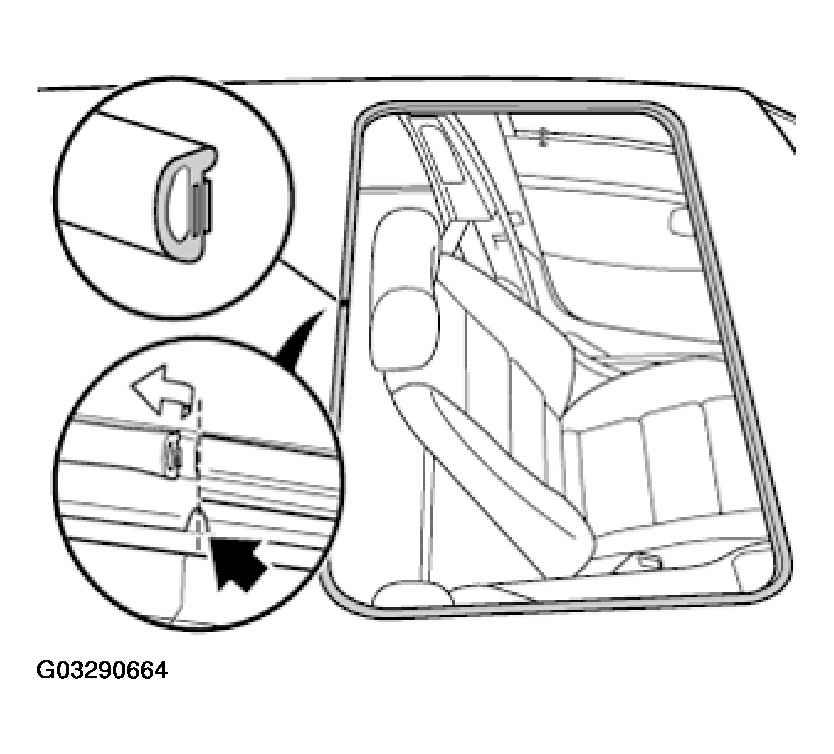

Begin removal at contact edge (rear center):
- Peel off rubber seal
- Clean bonded area
Installation:
Also begin at specified point of contact edge for installation:
- Stick on rubber seal in sections
- Establish seal joint
- Press on seal
