54 12 015 Replacing left or right gaiter for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Move glass sunroof lid into "lift position".

Slide roofliner (floating) slowly towards rear until stop can be felt.

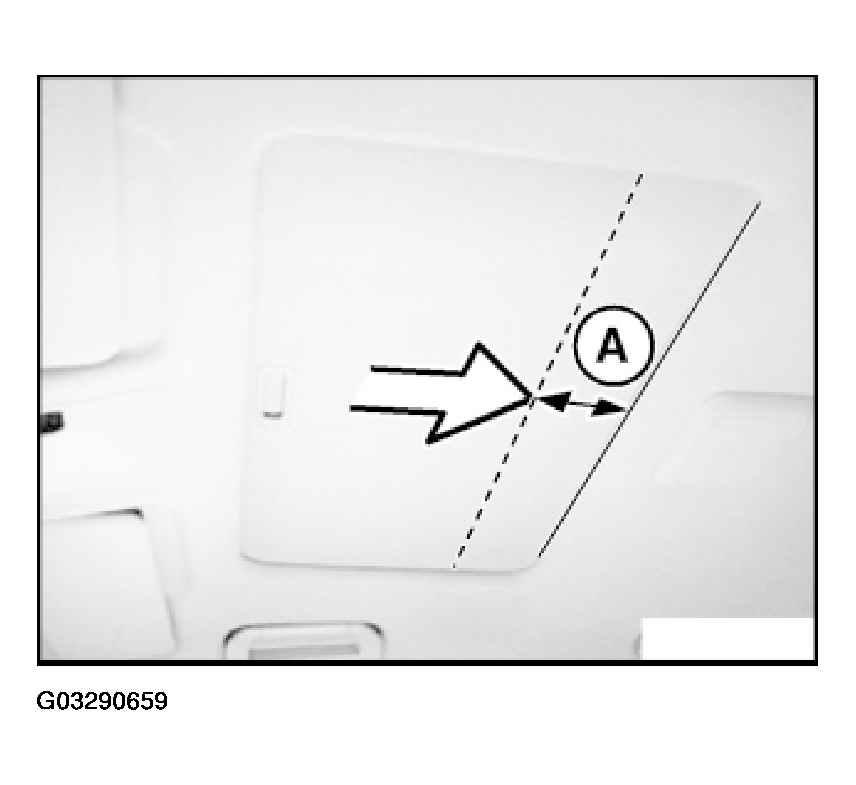

E65, E66: A = approx. 60 mm

E60, E61: A = 0 mm

Fig 1: Identifying Measurement (A)

Courtesy of BMW OF NORTH AMERICA, INC.

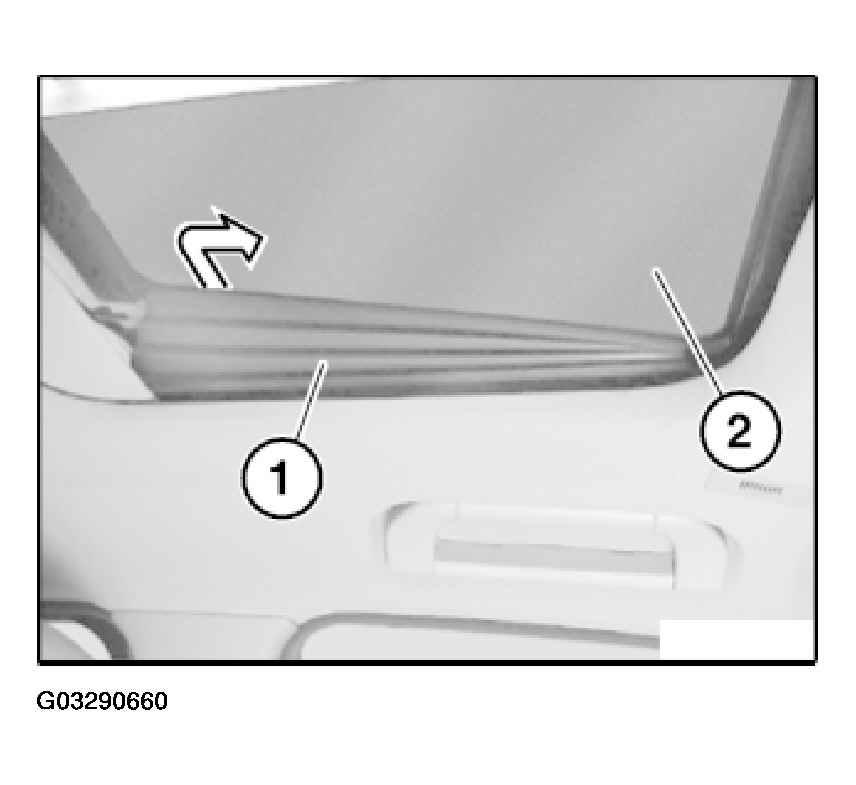

Pull out gaiter (1) at rear starting from glass sunroof lid (2).

Fig 2: Pulling Out Gaiter At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

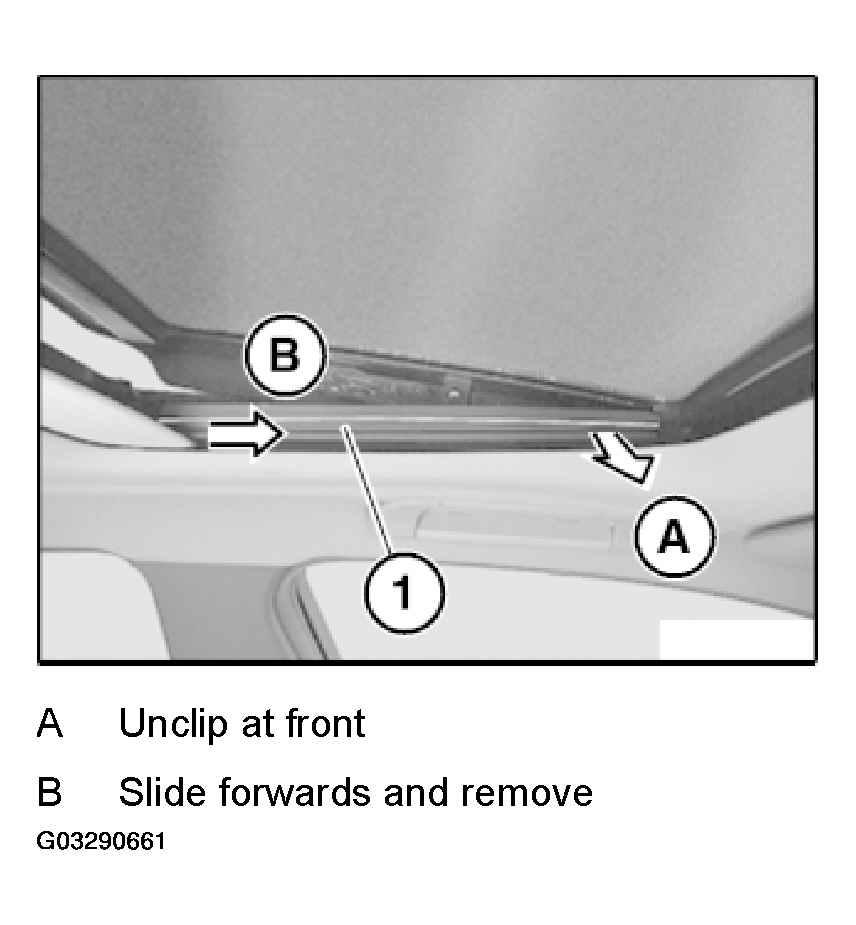

Remove gaiter (1) as follows:

Fig 3: Removing Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

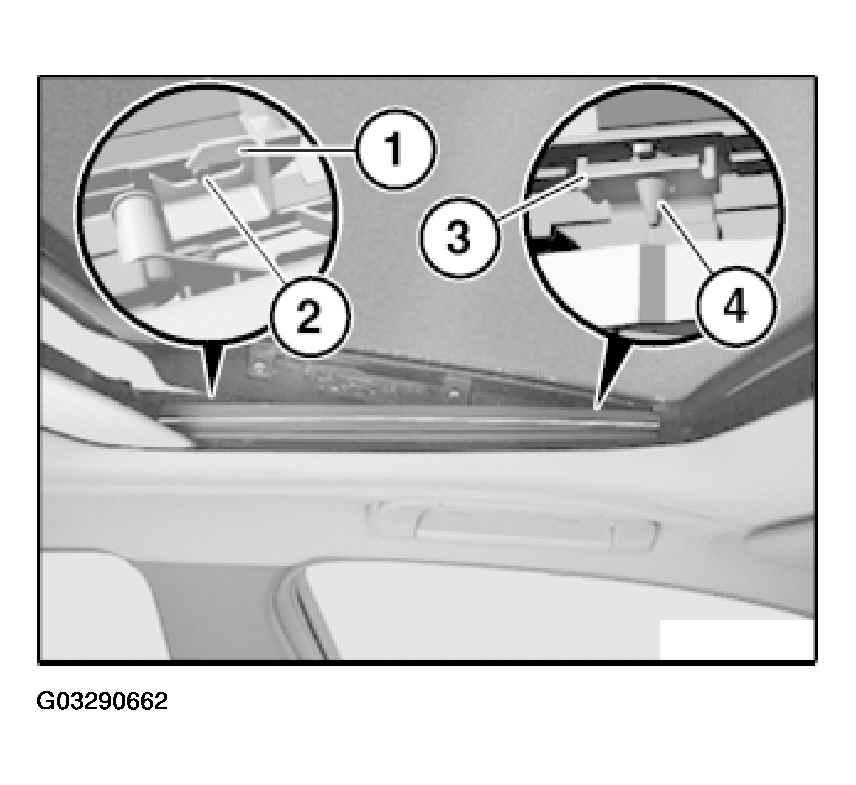

Retainer (4) and guide pin (2) must not be damaged.

Fig 4: Sliding Guide Pin Into Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Slide guide pin (2) into holder (1). Retainer (4) must engage in holder (3).
