Ideal adjustment:

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Distance:
- Distance (A) between lid and roof at front and rear must be the same.
- Slide in special tool 00 9 341 between seal and lid. This check (sliding in and pulling out the special tool) must be subject to tightness.
Height:
- Front - flush to 1 mm deeper
- Rear - flush to 1 mm higher

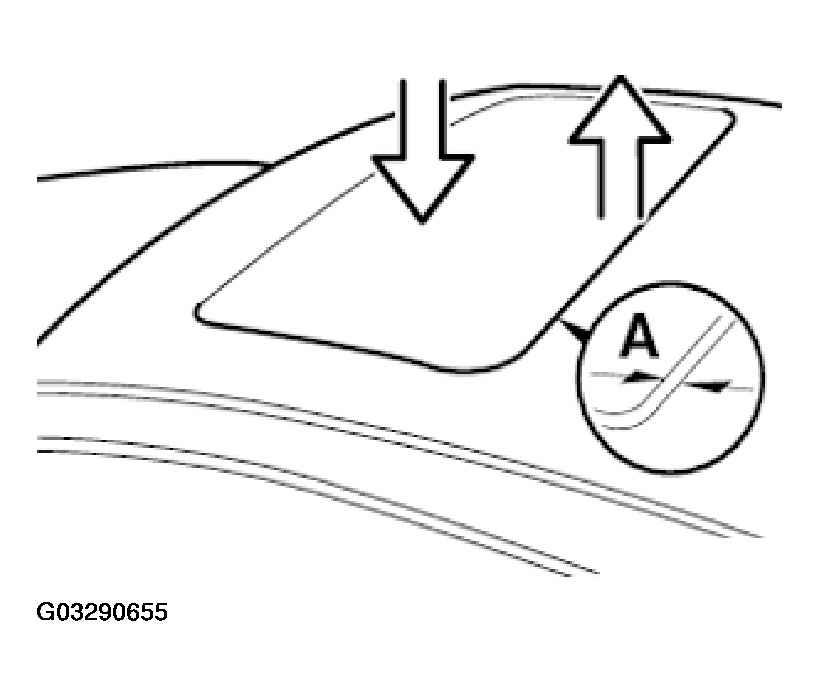

Fig 1: Identifying Distance (A)
Courtesy of BMW OF NORTH AMERICA, INC.
