52 25... Additional work (comfort) with defective drive for backrest angle adjustment

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

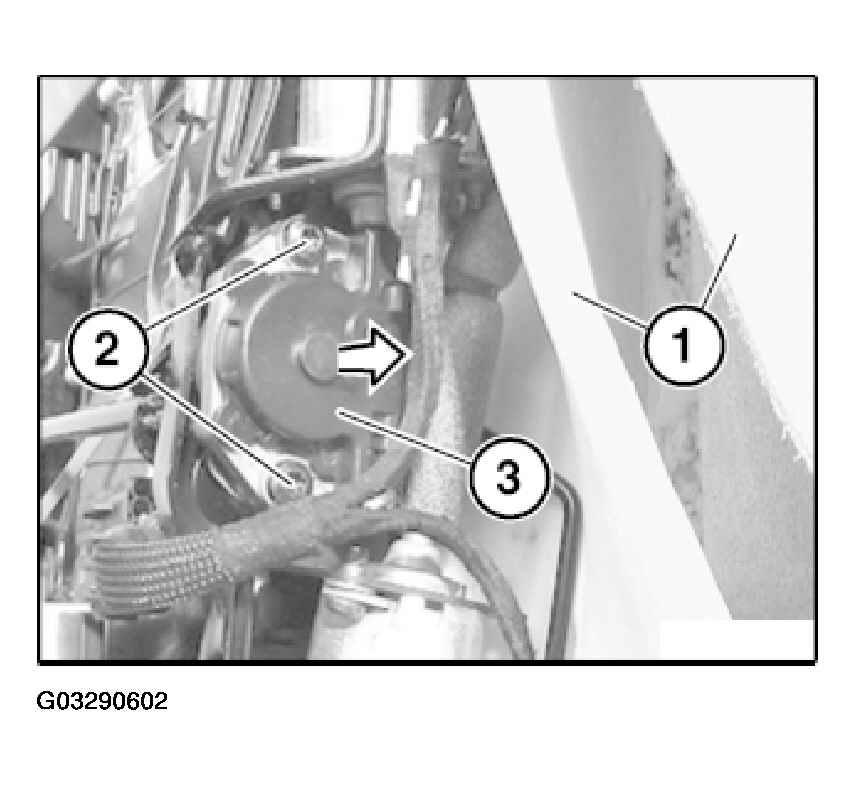

Detach seat cover and padding (1) on inside (center armrest) of seat.

Fig 1: Detaching Cover And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Installation:

Tightening torque 8^{+/-1 ace;} Nm.

Pull gearing (3) outwards.

Backrest can now move freely.

Installation:

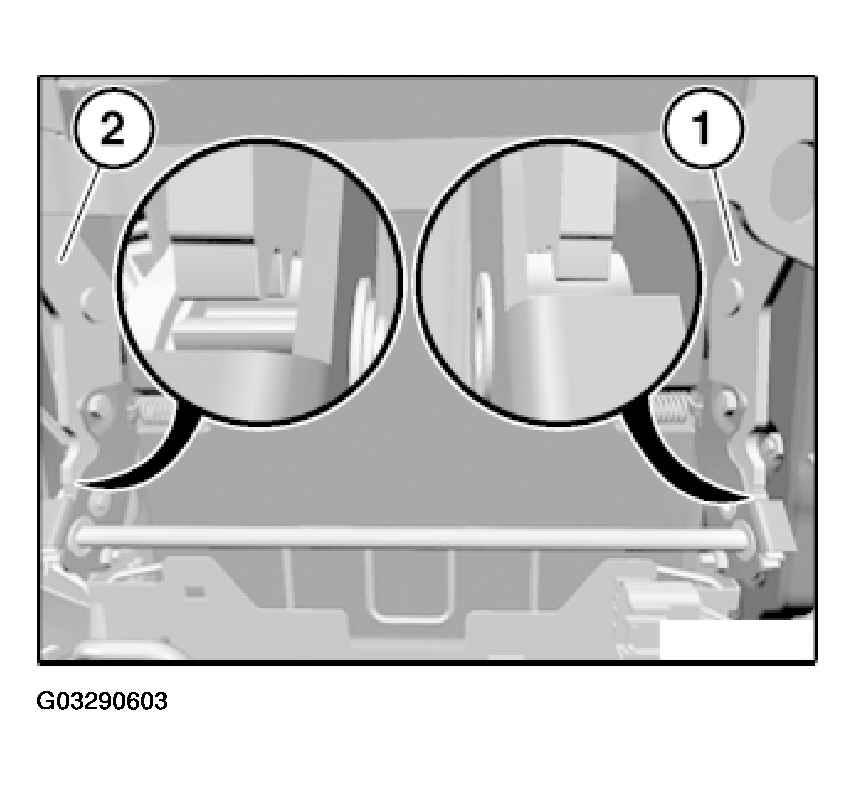

Before gearing can be reinstalled, both levers (1) and (2) must be synchronized.

Fig 2: Adjusting Inner And Outer Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust inner lever (1) (to center armrest) so that gear wheel engages 1st tooth of lever.

Adjust outer lever (2) so that gear wheel engages 2nd tooth of lever.

Install gearing.

Installation:

Checking:

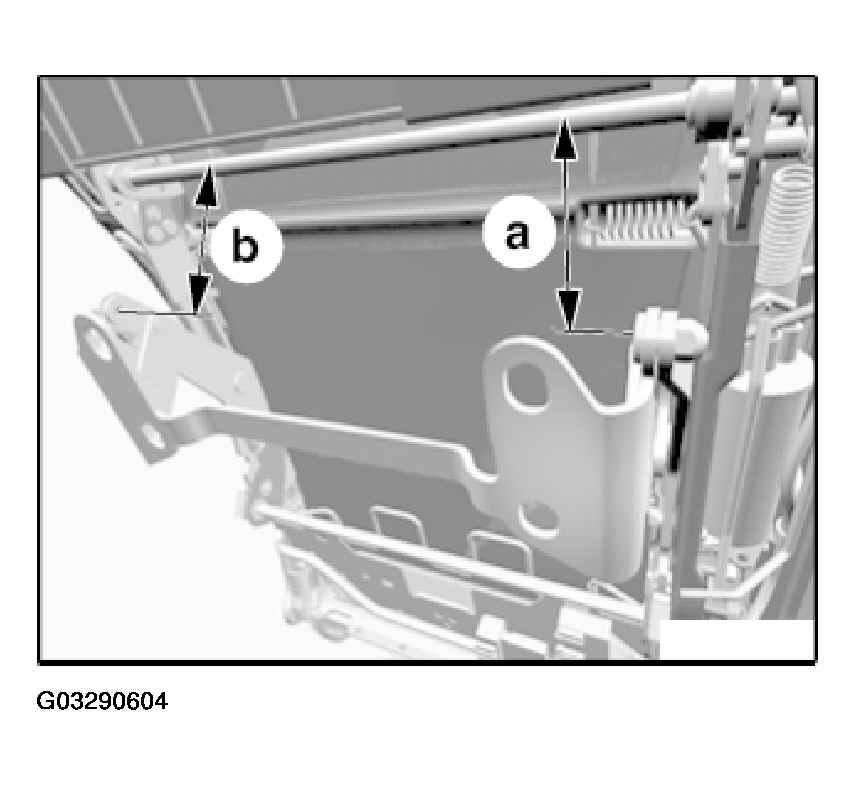

Measurements a and b must match up.

Fig 3: Matching Measurements A And B

Courtesy of BMW OF NORTH AMERICA, INC.
