52 24 400 Replacing seat cover (normal) for rear seat

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .
Remove cup holder.

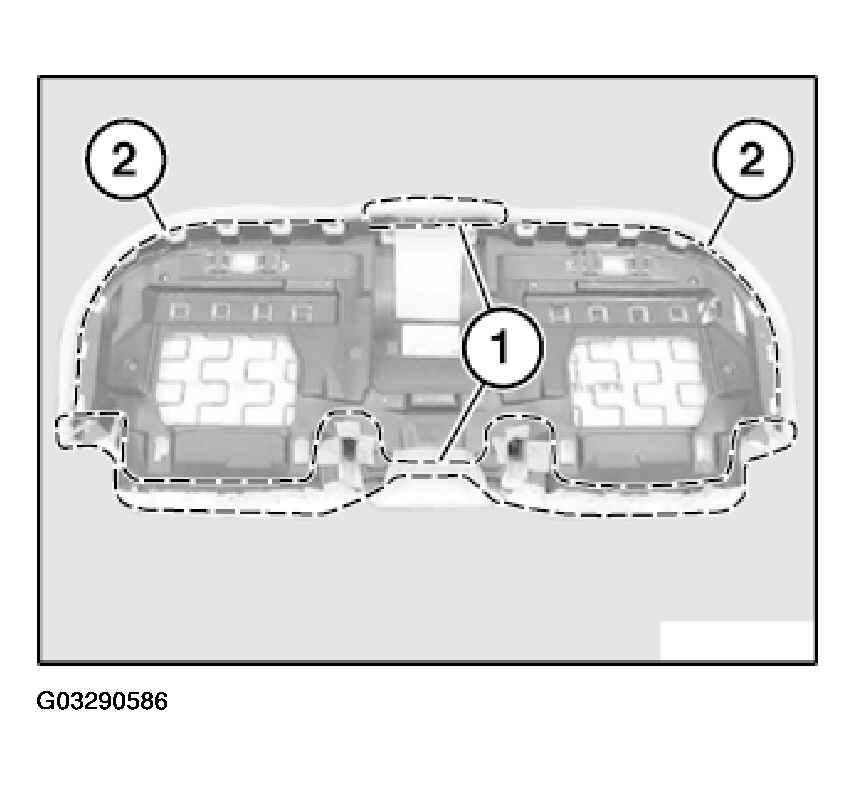

Detach retainers in areas (1).

Fig 1: Detaching Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend new retainers closed with pliers 52 0 050.

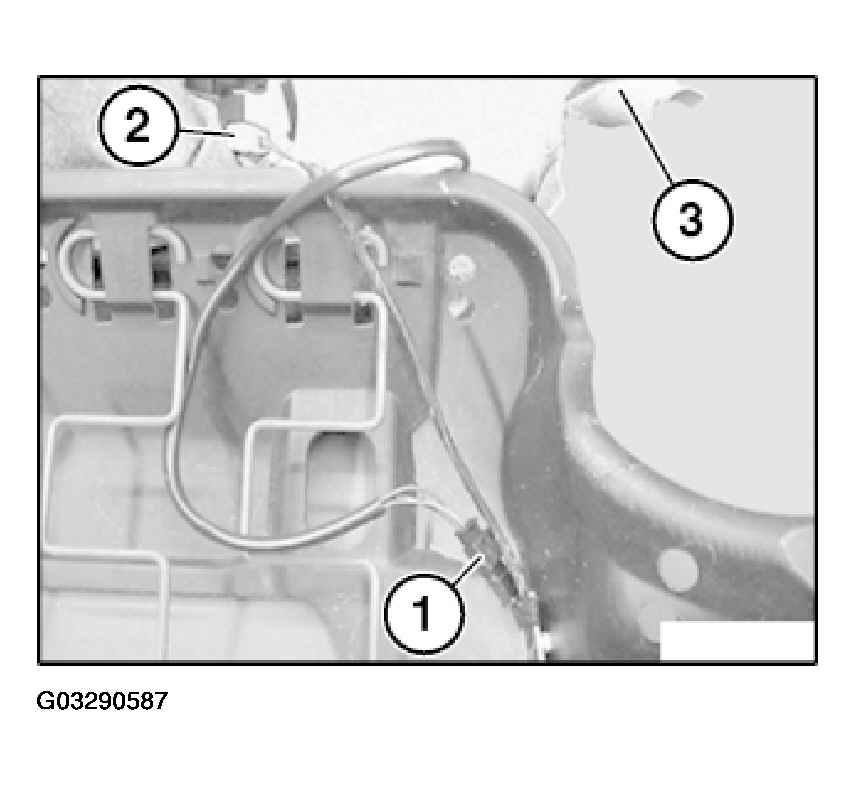

Unhook seat cover in areas (2).

Disconnect plug connection (1).

Fig 2: Removing Seat Cover With Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Remove seat cover (3) complete with padding.

Disconnect plug connections (2) on left and right.

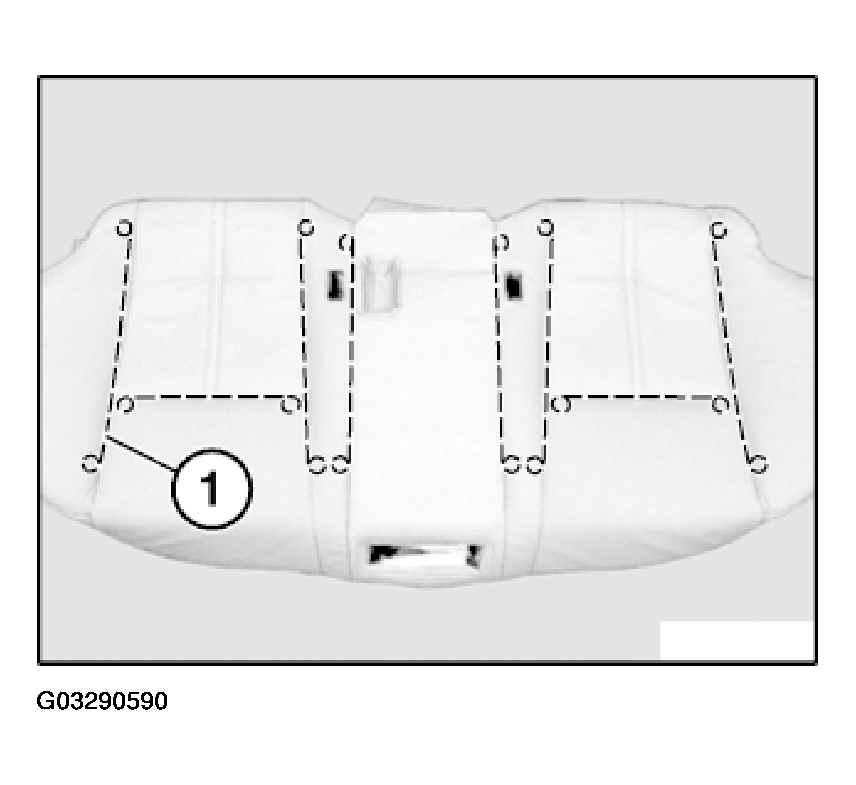

Release clips in designated areas.

Fig 3: Removing Seat Cover From Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Remove seat cover (1) from padding.

Remove all remnants of retainers from seat cover and/or padding.

Installation:

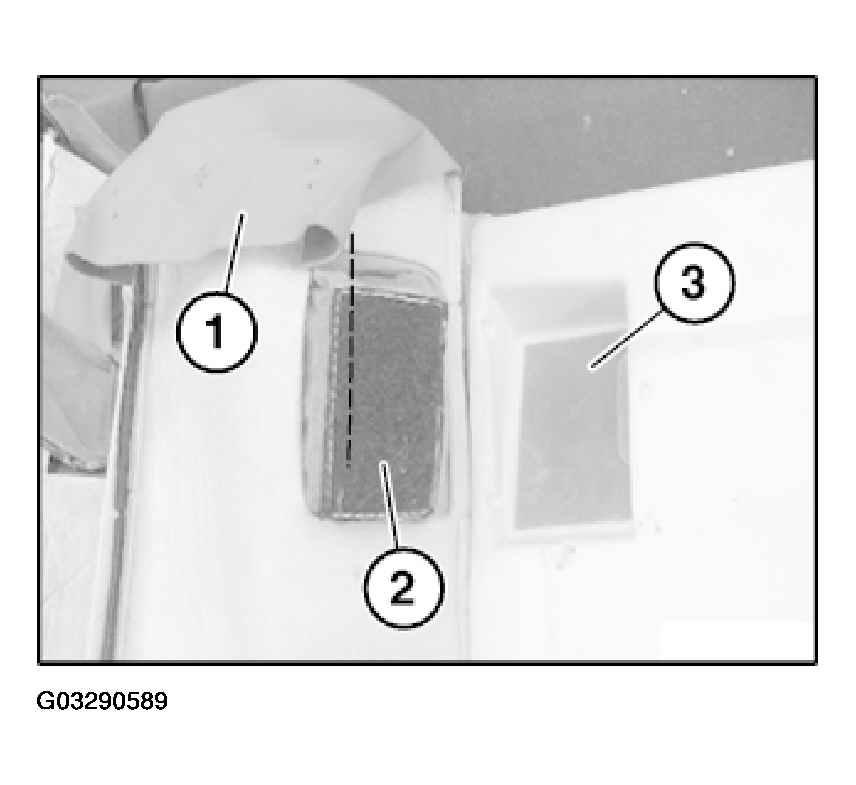

Seat cover (1) is secured by Velcro-type tape (2) in padding (3).

Fig 4: Installing Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

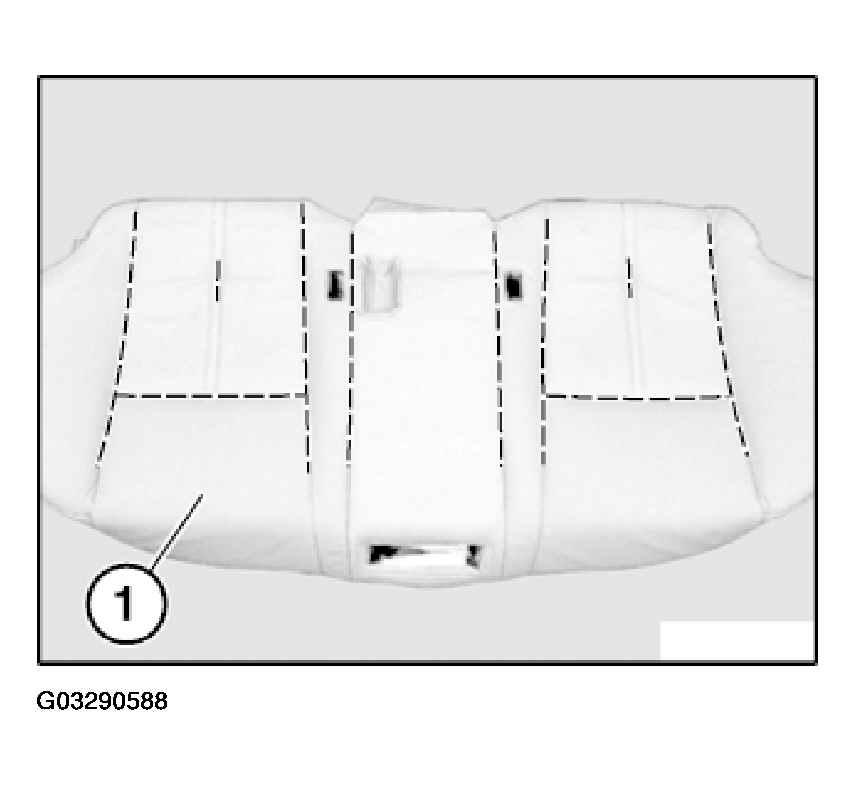

Pull all designated trim threads out of seat cover.

Fig 5: Removing Trim Threads From Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide trim threads into new seat cover. If necessary, cut mounting for trim threads.
