52 14... Replacing left flex shaft for longitudinal seat adjustment drive

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect electrical plug connection.

Lift drive (1) and flex shaft (3) out of guide (2) in direction of arrow.

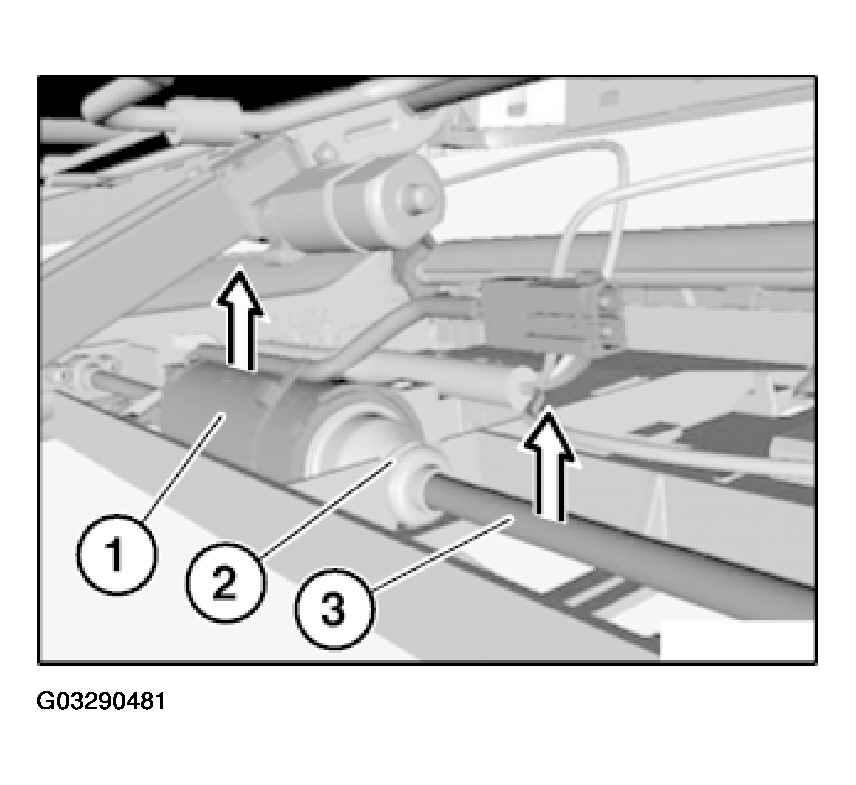

Fig 1: Removing Flex Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Detach flex shaft (3) (plug connection).

Loosen screws (1).

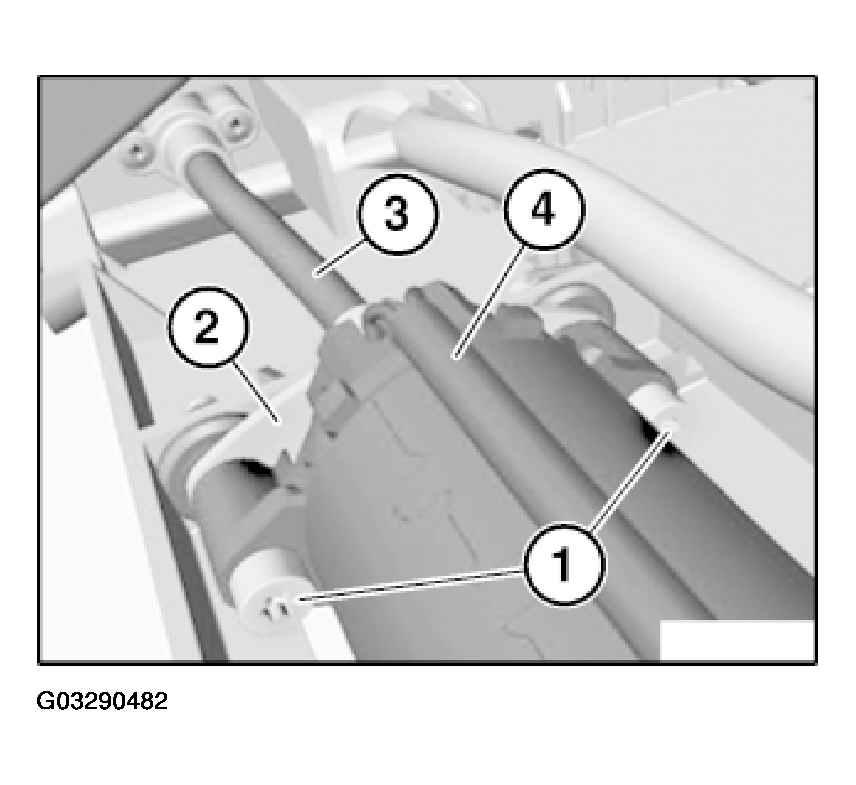

Fig 2: Removing Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Remove drive (4).

Detach flex shaft (3) with holder (2).
