52 14... Removing and installing/replacing guide for front left or right head restraint (up to 03/03)
WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove head restraint mounting on front seat. Refer to 52 14 380 REMOVING AND INSTALLING/REPLACING HEAD RESTRAINT MOUNT ON LEFT OR RIGHT FRONT SEAT .

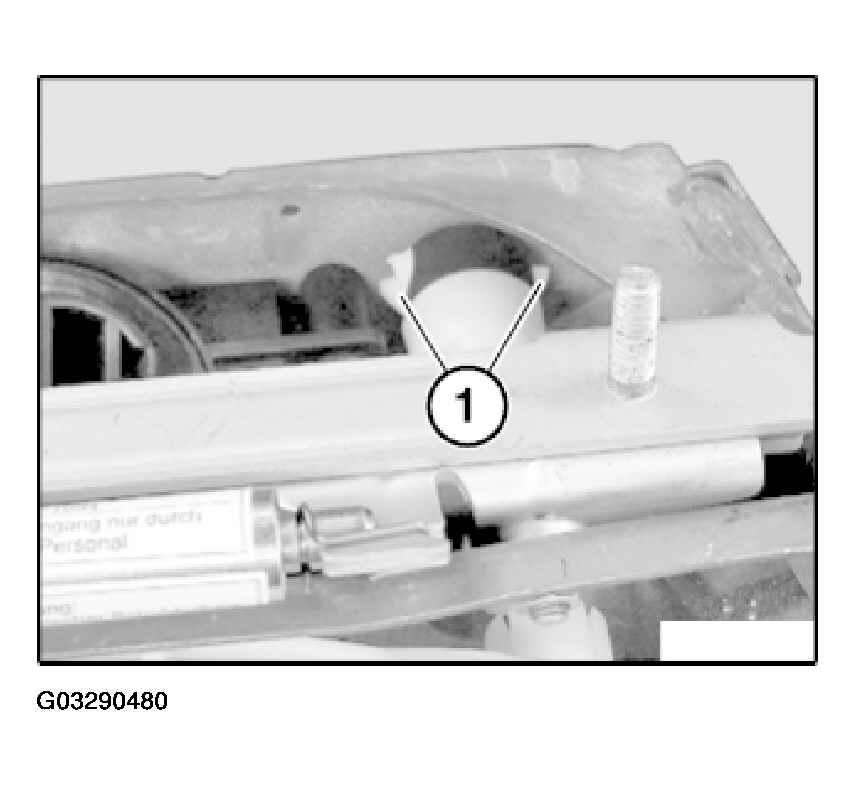

Unlock catches (1) and remove guide towards top.
