52 14 060 Removing and installing/replacing valve housing for left or right front lumbar support (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear panel on front seat backrest, refer to 52 14 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL / ELECTRIC)

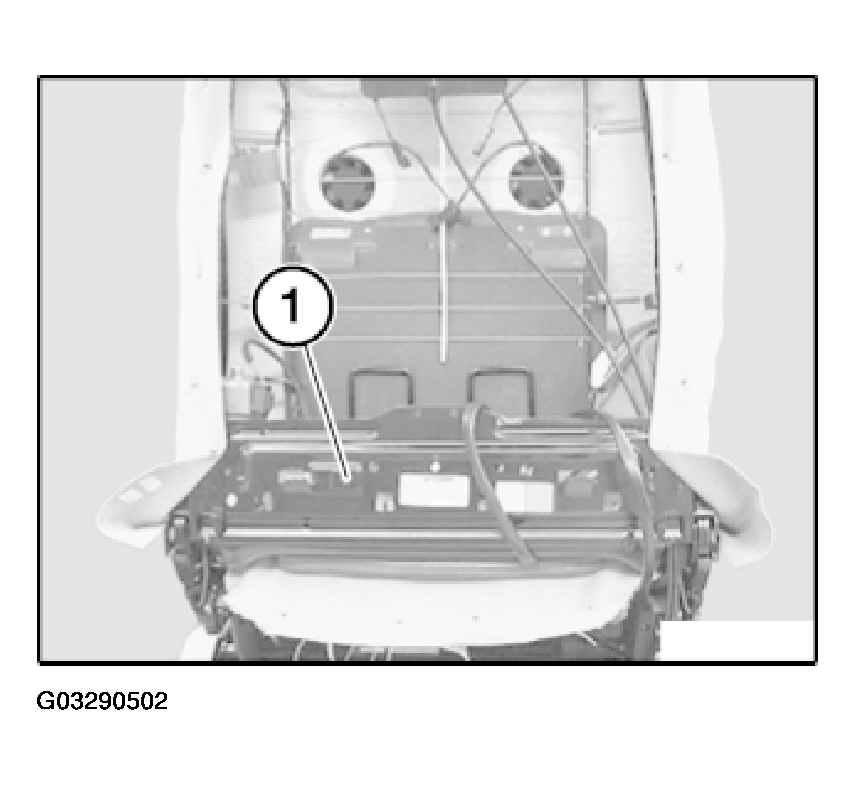

Release retaining screw (1).

Fig 1: Releasing Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect electrical plug connection.

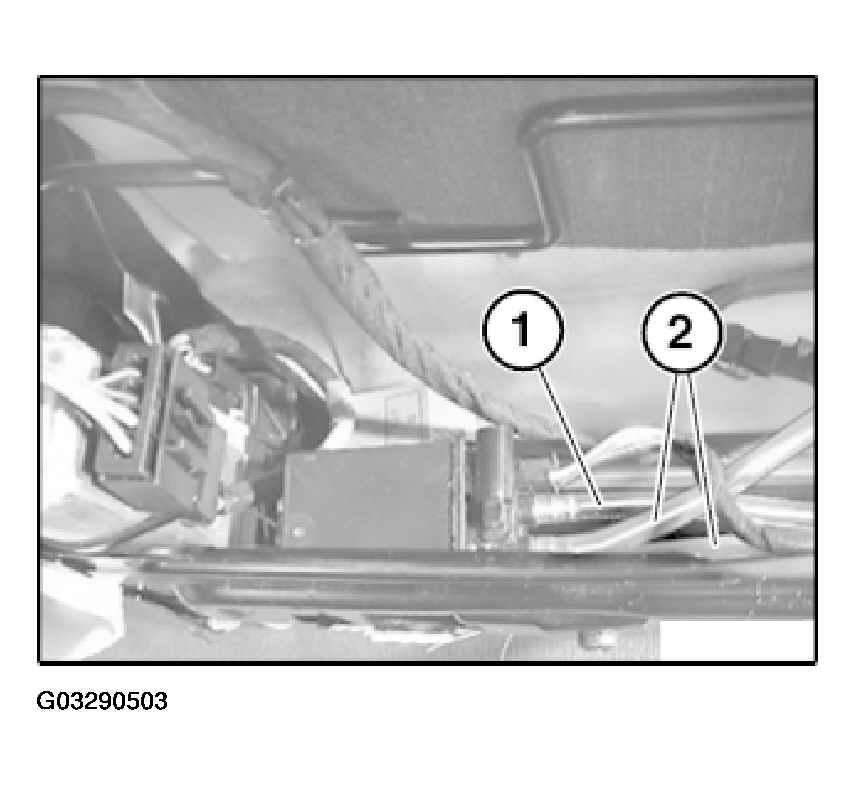

Disconnect air hoses (1) and (2).

Fig 2: Disconnecting Air Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure air hoses (2) are correctly connected to valve block (color coding: red/blue).

Housing on valve block must not be unclipped (leakage). If necessary, clip housing together.
