Ideal Filling:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Set hydraulic unit (1) down on a horizontal surface (4).

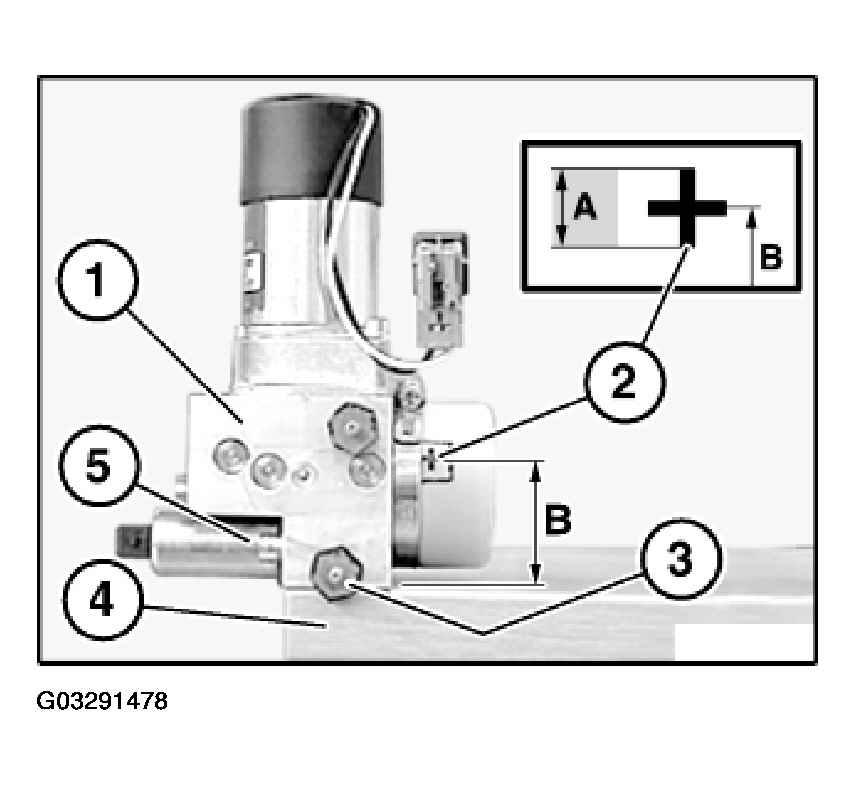

Fig 1: Checking Fluid Level

Courtesy of BMW OF NORTH AMERICA, INC.

Damper (3) and valve (5) must not rest on surface.

Check distance (B) from middle of marking (2) to lower edge of hydraulic unit (1).

B = 45+/-1 mm

After correction, fluid level (2) must be in upper area (A) of marking (2).
