51 24 660 Correcting fluid level in hydraulic unit (from 02/2003) for rear lid actuation (electrohydraulic-fully automatic)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not under any circumstance remove fluid tank from hydraulic unit.
Use fluid from "Small parts for hydraulic unit" set.

Follow notes and instructions for automatic rear lid actuation (electrohydraulic-fully automatic). Refer to 51 24... NOTES AND INSTRUCTIONS ON AUTOMATIC REAR LID ACTUATION (FROM 02/2003) (ELECTROHYDRAULIC-FULLY AUTOMATIC) .

Necessary preliminary tasks:

Remove hydraulic unit. Refer to 51 24 150 REMOVING AND INSTALLING/REPLACING HYDRAULIC UNIT FOR REAR LID ACTUATION (FROM 02/2003) (ELECTROHYDRAULIC-FULLY AUTOMATIC) .

NOTE: Hoses on hydraulic unit must not be detached.

Have a cleaning cloth and an oil drip tray ready to catch emerging fluid.

Move hydraulic unit (1) into vertical position.

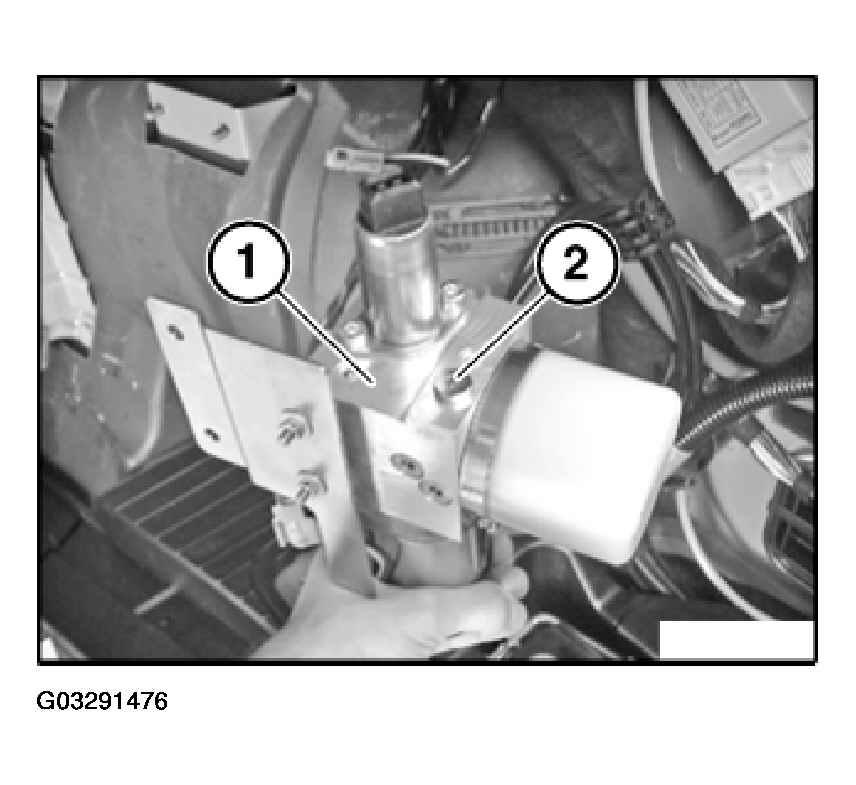

Fig 1: Releasing Screw

G03291476

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Tightening torque 51 24 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Top up hydraulic fluid through opening.

Installation:

Replace sealing ring.

Check fluid level. Refer to 51 24... NOTES AND INSTRUCTIONS ON AUTOMATIC REAR LID ACTUATION (FROM 02/2003) (ELECTROHYDRAULIC-FULLY AUTOMATIC) .

When ideal filling is achieved:

Install hydraulic unit.

Close rear lid (motor-driven) twice and open again, this bleeds the system.

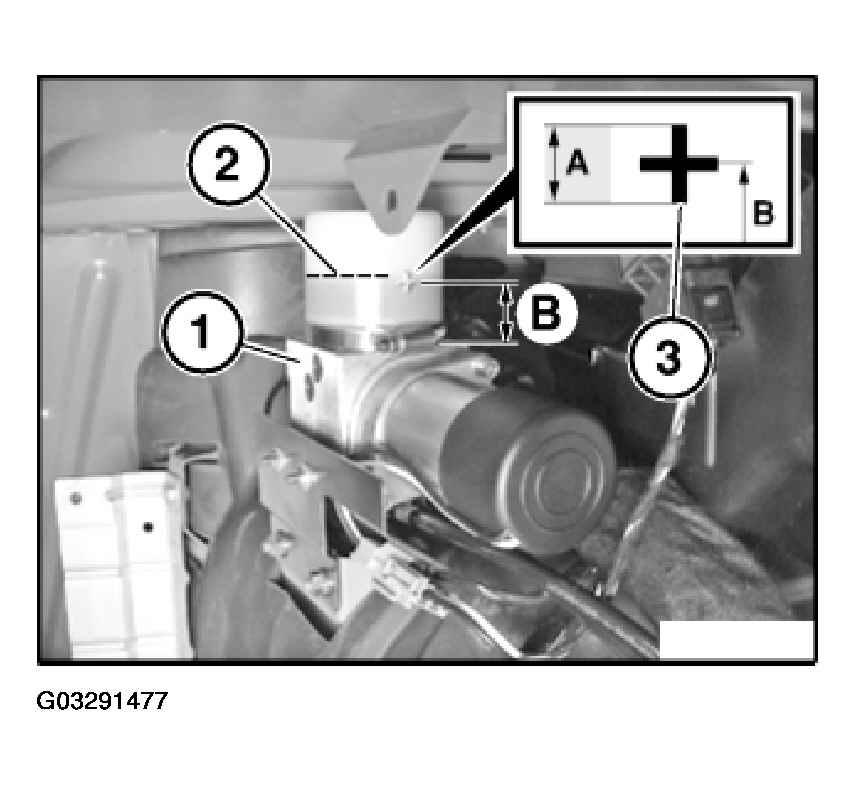

When rear lid is fully opened (cylinder retracted), fluid level (2) must be in area (A) of marking (3).

Fig 2: Checking Fluid Level

G03291477

Courtesy of BMW OF NORTH AMERICA, INC.
