Sealing Connections On Hydraulic Unit And Hose Connections For Hydraulic Cylinders:
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Hydraulic unit:
Use seal plugs from "Small parts for hydraulic unit"* set and removed seals.

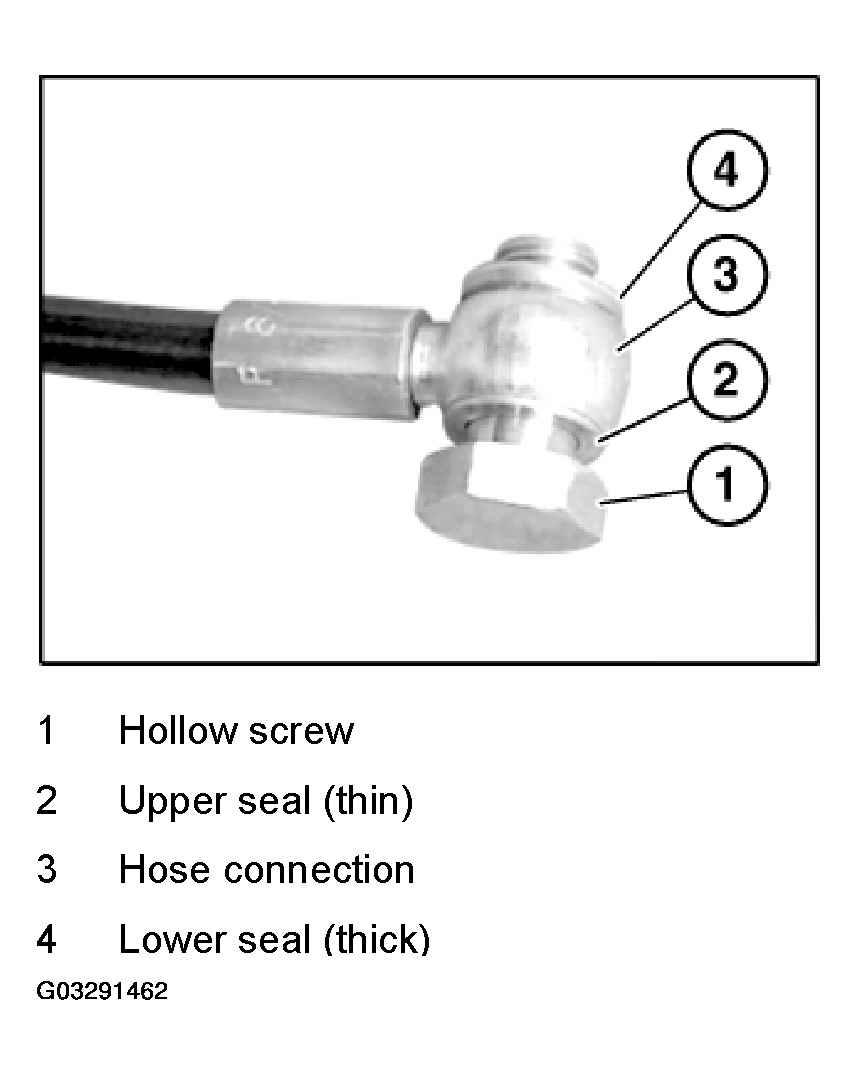

Hose connections:
Use seal plugs with cap nuts from "Small parts for hydraulic unit"* set and removed seals.
* Sourcing reference: BMW Parts Service
Installation:
Always fit new banjo bolts (1) and seals (2 and 4).
- Check fluid level in hydraulic unit, refer to 51 24... Notes On Automatic Rear Lid Actuation (Electrohydraulic-Fully Automatic)

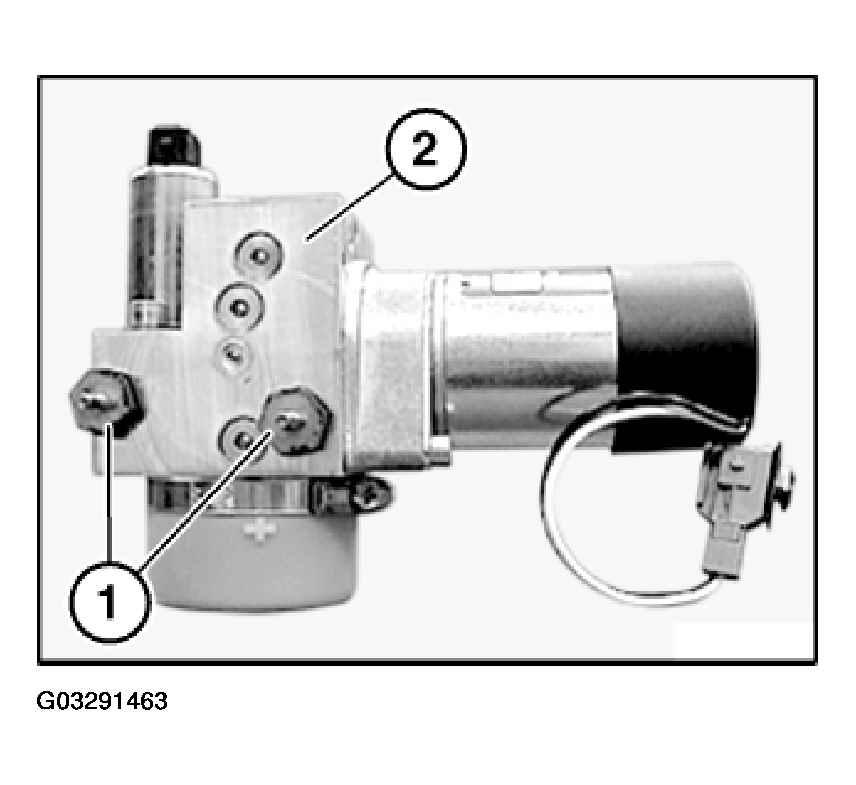

Replacement only:
If necessary, replace faulty mounts (1) for hydraulic unit (2).
