51 24 050 Removing and installing/replacing lock element (lock cylinder) for rear lid (up to 03/2005)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear centre trim, refer to 51 13 400 REMOVING AND INSTALLING/REPLACING REAR CENTRE TRIM (UP TO 03/2005)

Detach cover (1) from lock element (2).

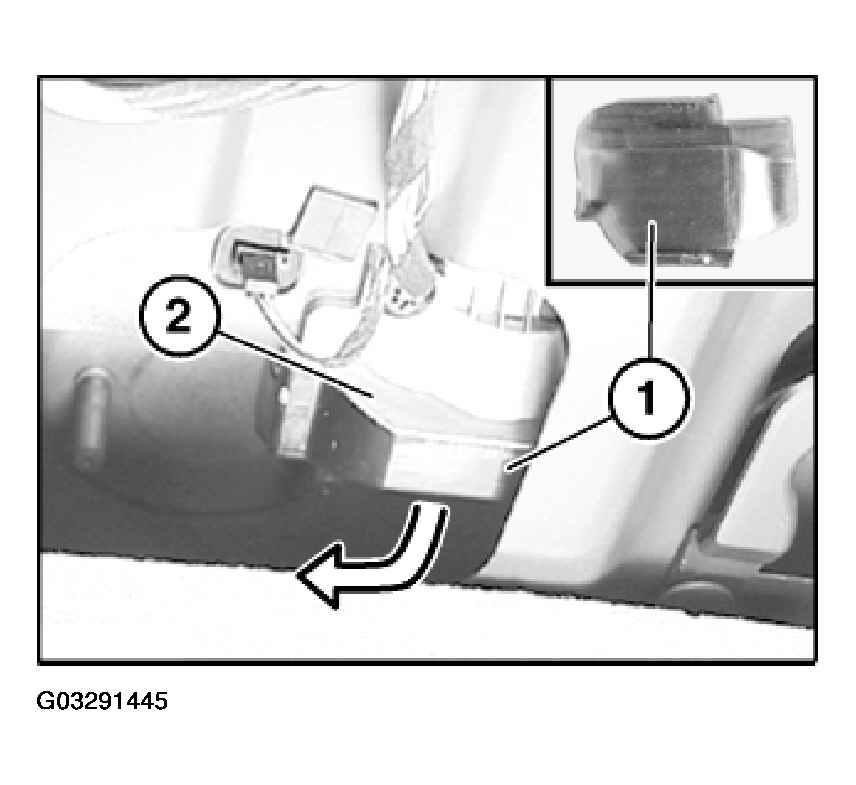

Fig 1: Detaching Cover From Lock Element

G03291445

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect Bowden cable (3) from element (4).

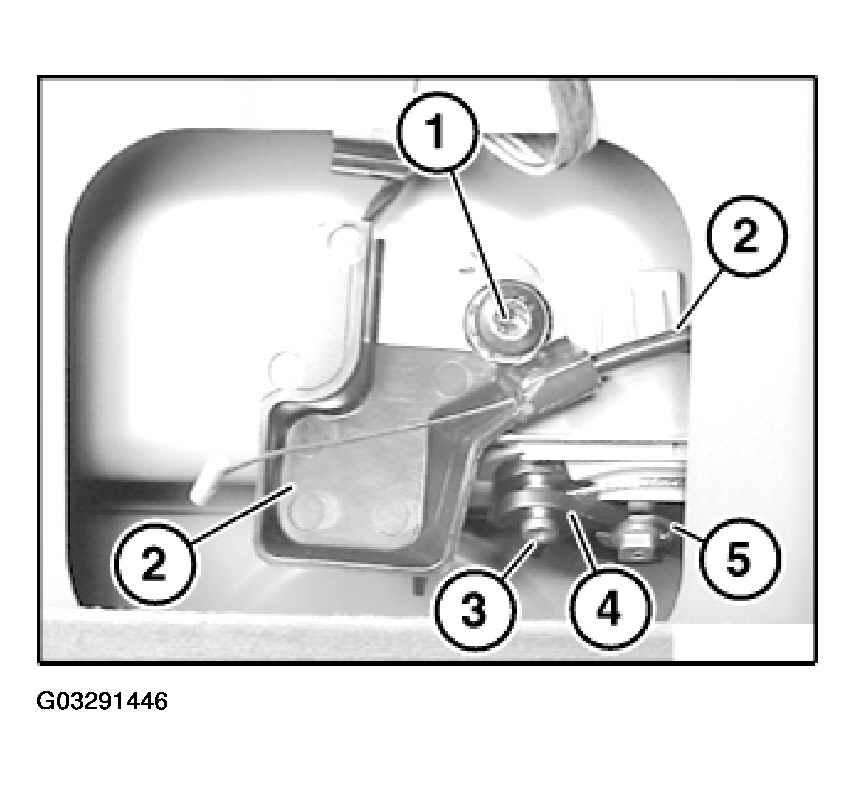

Fig 2: Disconnecting Bowden Cable From Element

G03291446

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainer (5) must be correctly fitted.

Version with manual unlocking:

Release screw (1).

Slide Bowden cable with holder (2) to one side.

Release screw (1).

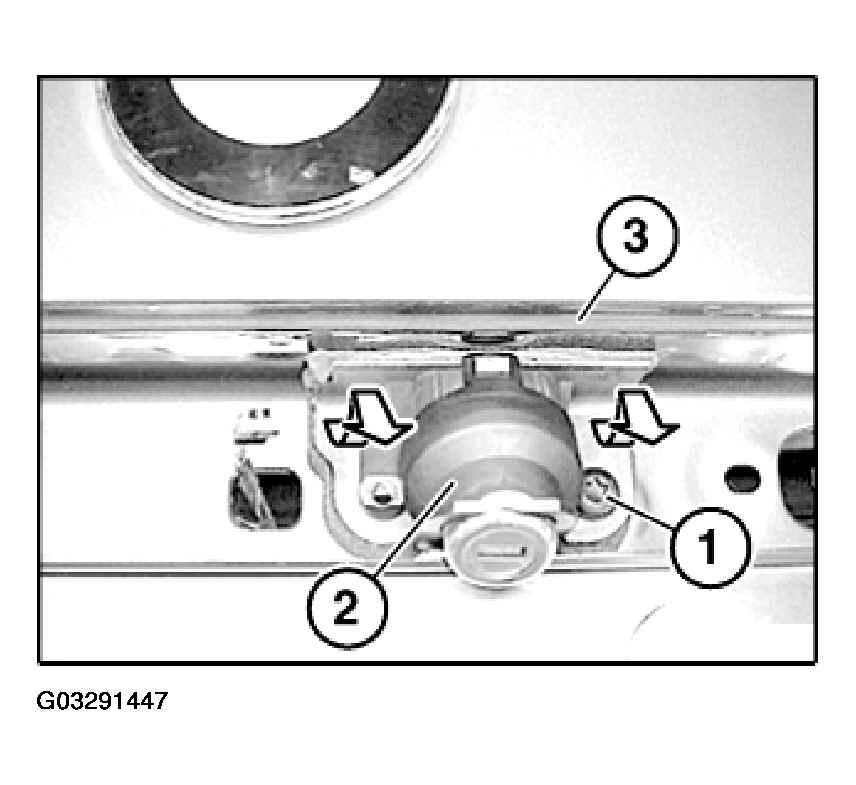

Fig 3: Removing Lock Element

G03291447

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew lock element (2) in direction of arrow from rear lid (3).

Installation:

Perform function check with rear lid open.

Installation:

Following parts of lock element (5) must not be damaged or missing:

Foam
Bowden cable mounting
Retainer
Cap

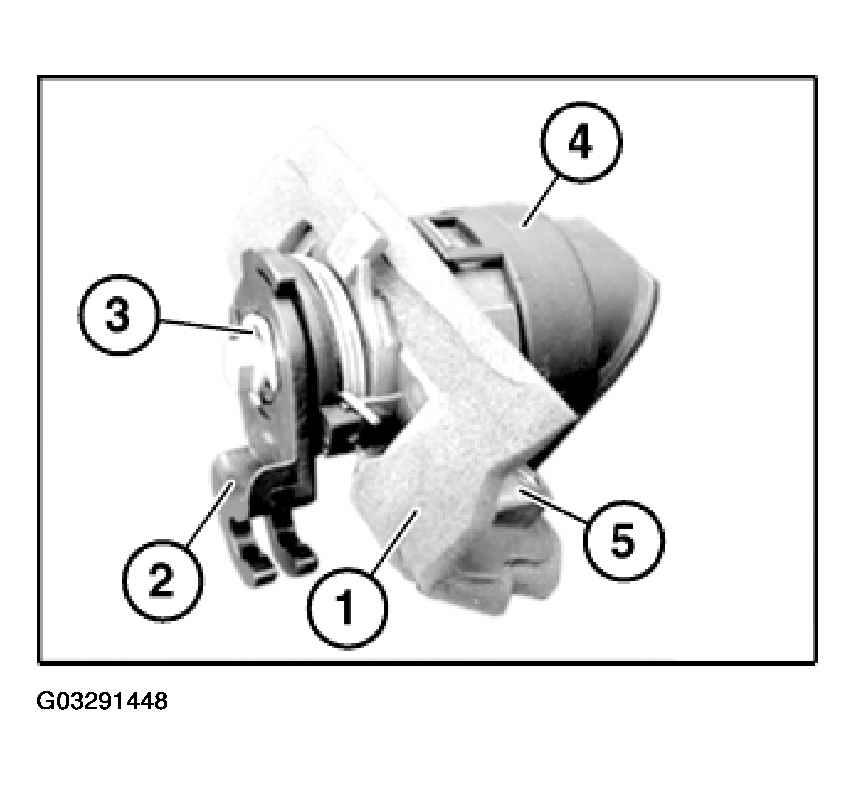

Fig 4: Identifying Lock Element Components

G03291448

Courtesy of BMW OF NORTH AMERICA, INC.
