51 49 006 Removing and installing/replacing trim for rear lid at top

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for rear lid at bottom. Refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID .

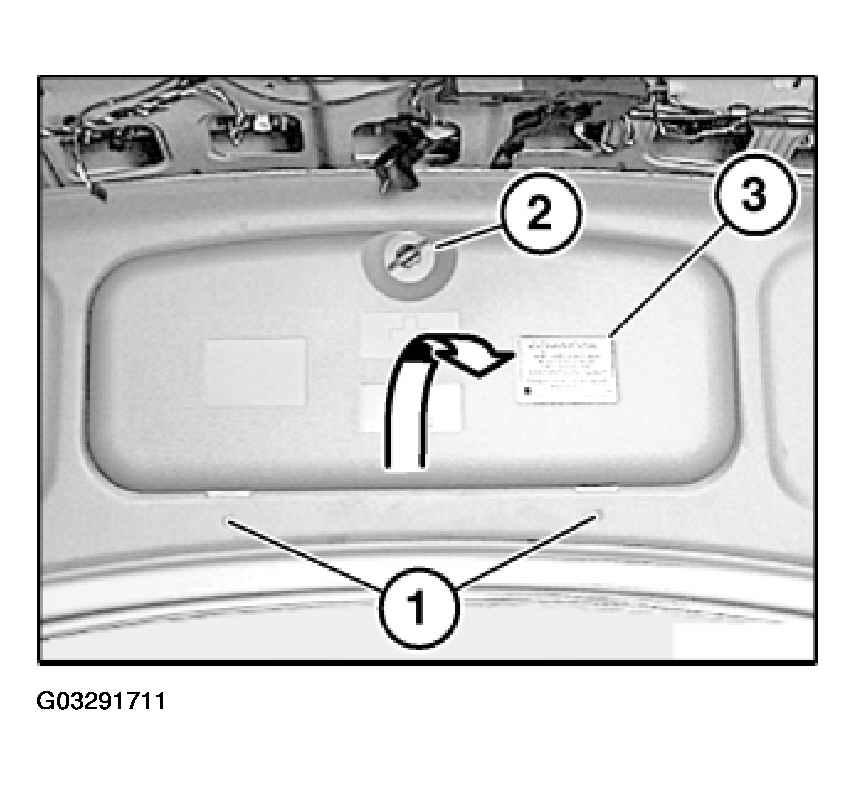

Release screws (1 and 2).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out retaining strap and remove tool box (3) in direction of arrow.

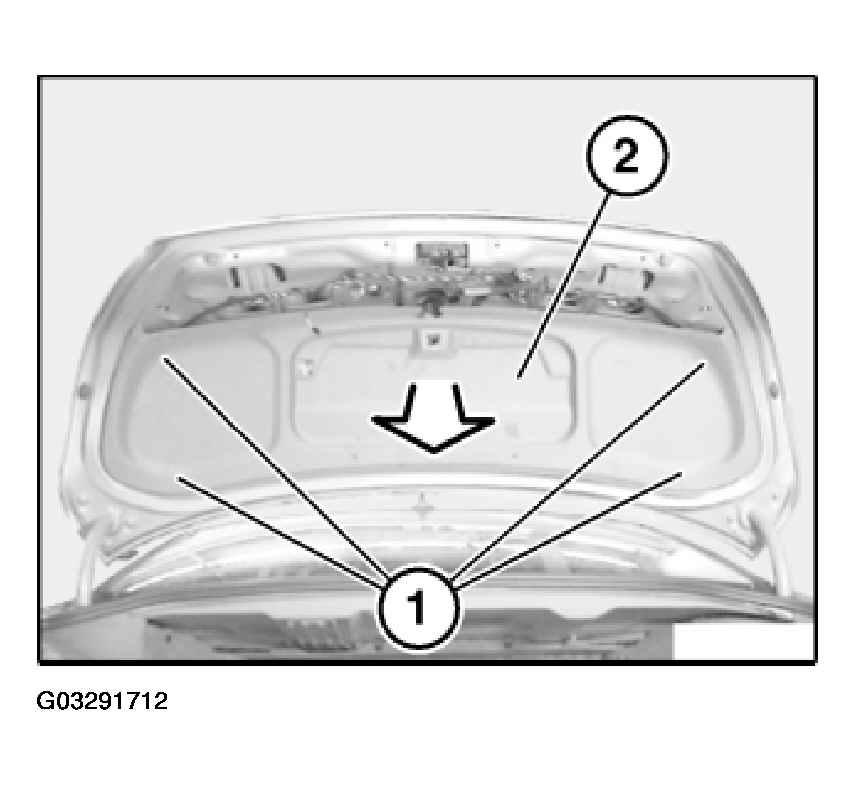

Release clips (1) and remove trim (2).

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

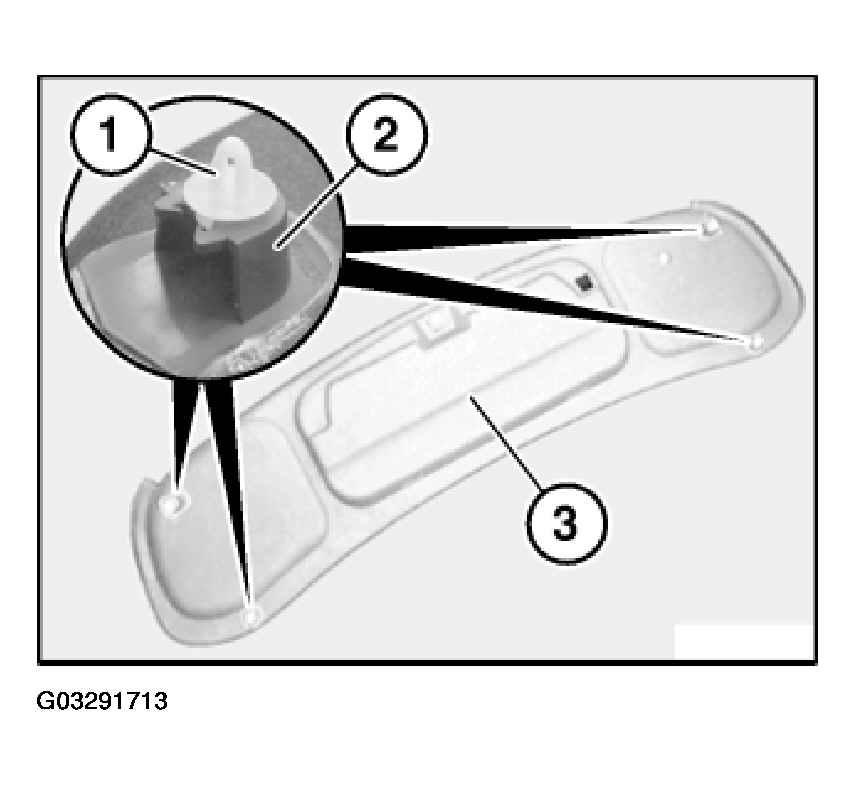

Following parts of trim (3) must not be damaged or missing:

Clips
Clip mountings

Fig 3: Identifying Trim Components
Courtesy of BMW OF NORTH AMERICA, INC.
