51 42 400 Removing and installing/replacing chest strip (chrome strip) on left or right rear door (with roller sun blind)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

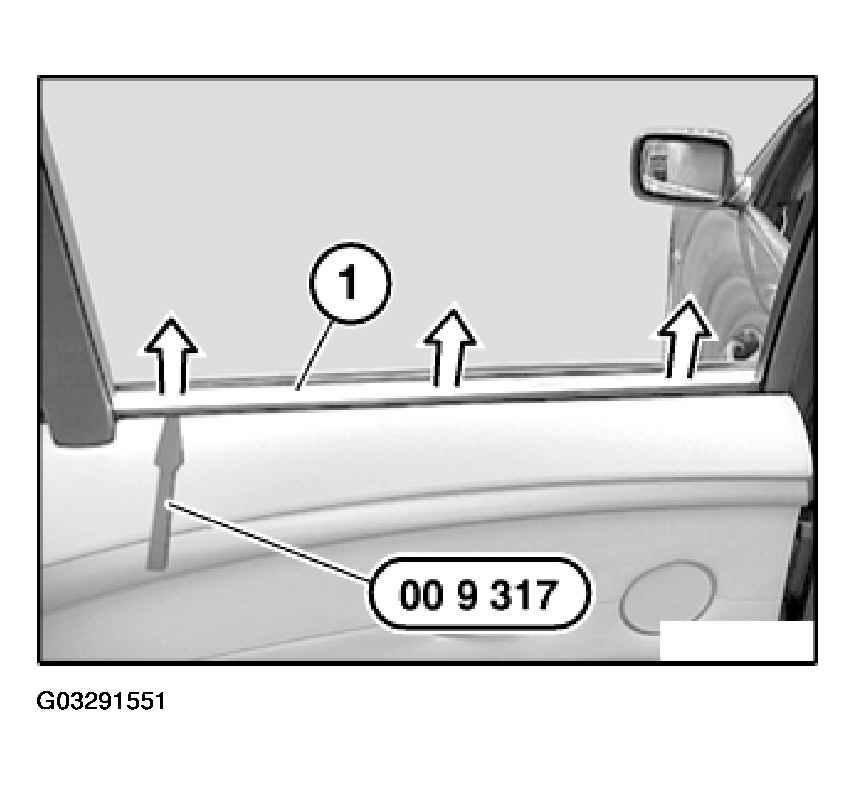

Detach front chest strip (1) with special tool 00 9 317 in direction of arrow.

Fig 1: Detaching Front Chest Strip

G03291551

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

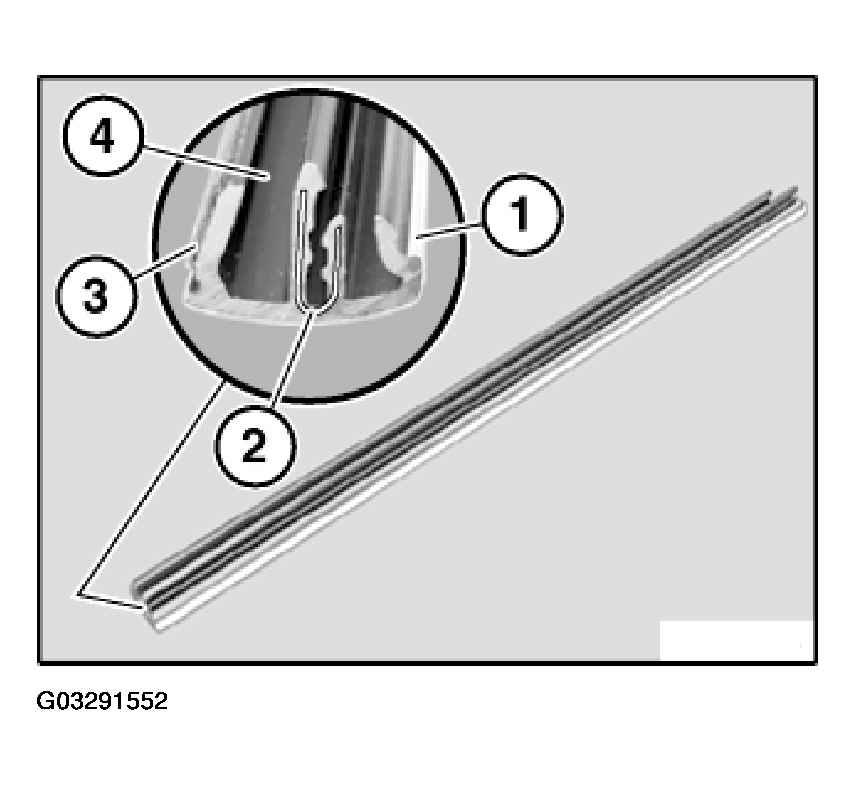

Following parts of chest strip (4) must not be damaged or missing:

Surface
Aluminum insert for connecting flange
Sealing brush

Fig 2: Installing Chest Strip
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

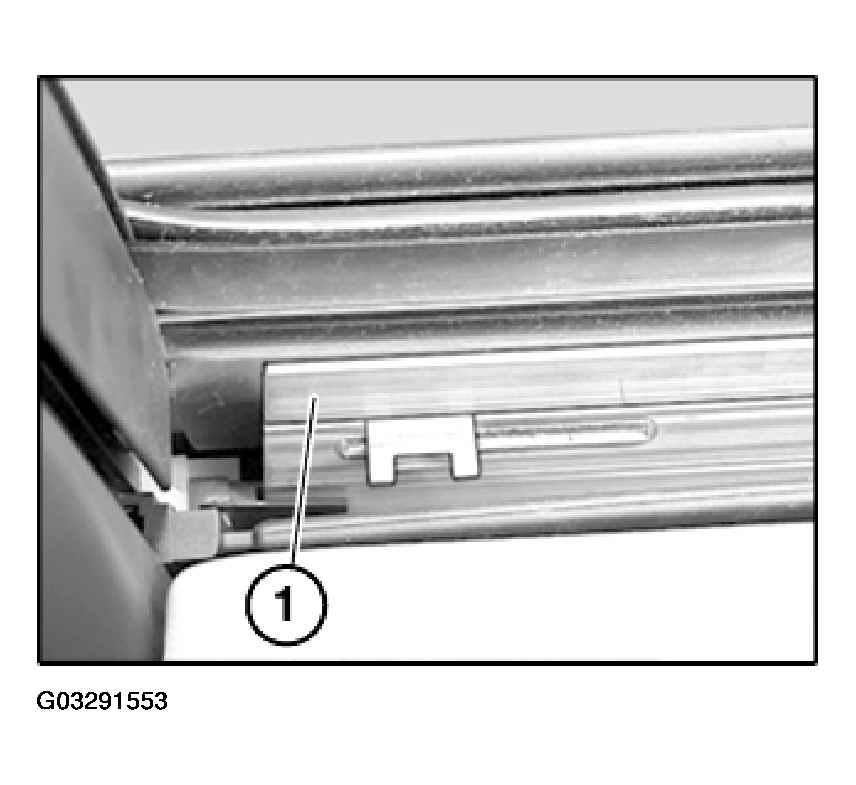

Attach chest strip correctly to flange (1).

Fig 3: Attaching Chest Strip To Flange

G03291553

Courtesy of BMW OF NORTH AMERICA, INC.

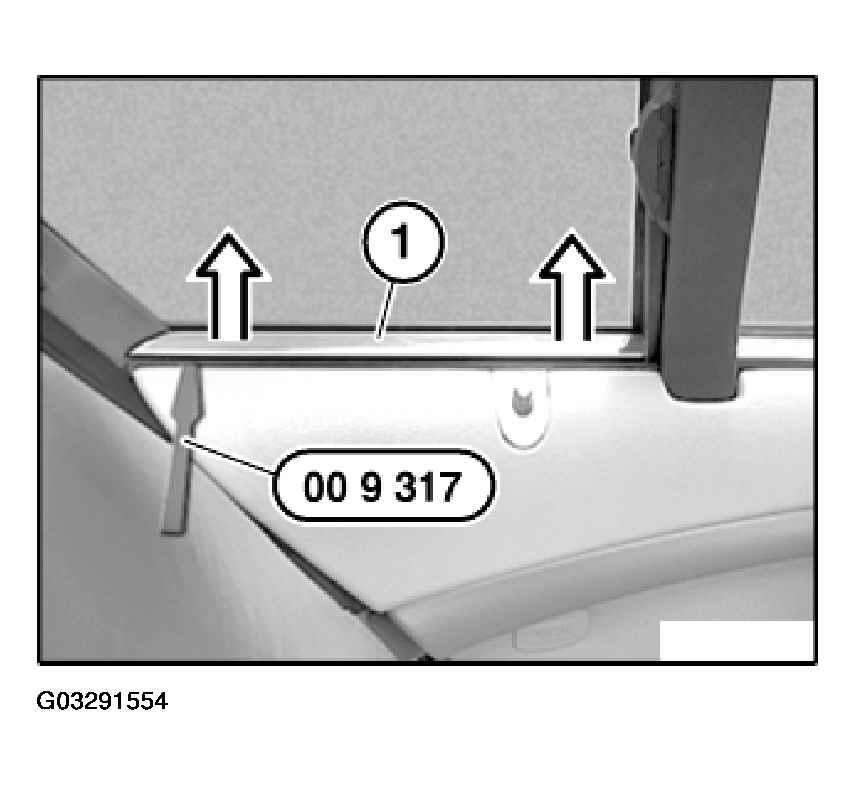

Detach rear chest strip (1) with special tool 00 9 317 in direction of arrow.

Fig 4: Detaching Rear Chest Strip

G03291554

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

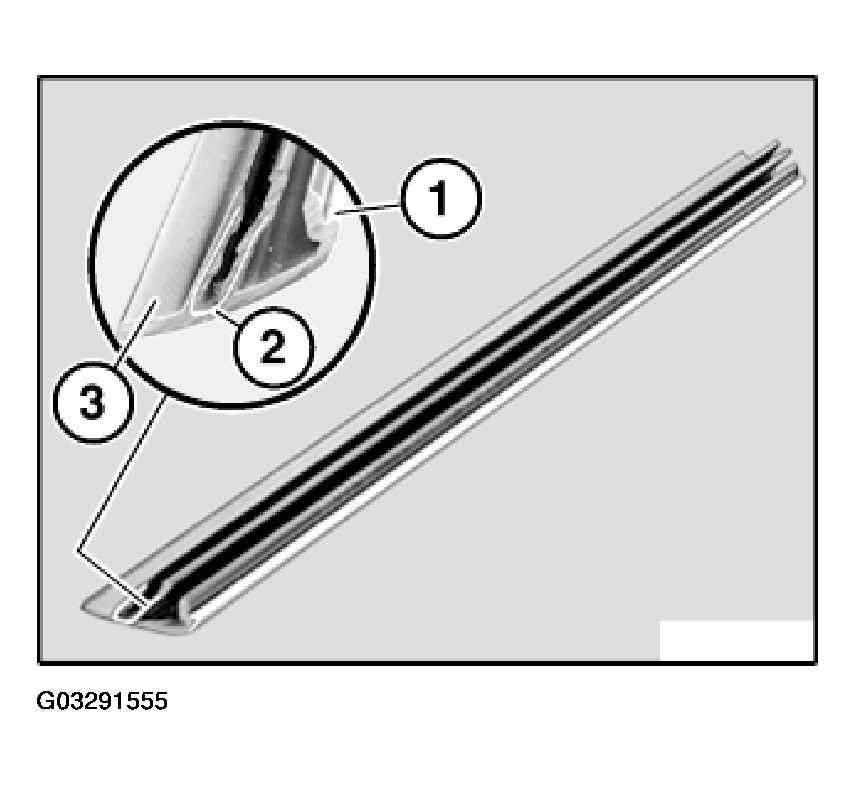

Following parts of chest strip (3) must not be damaged or missing:

Surface
Aluminum insert for connecting flange

Fig 5: Installing Chest Strip
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

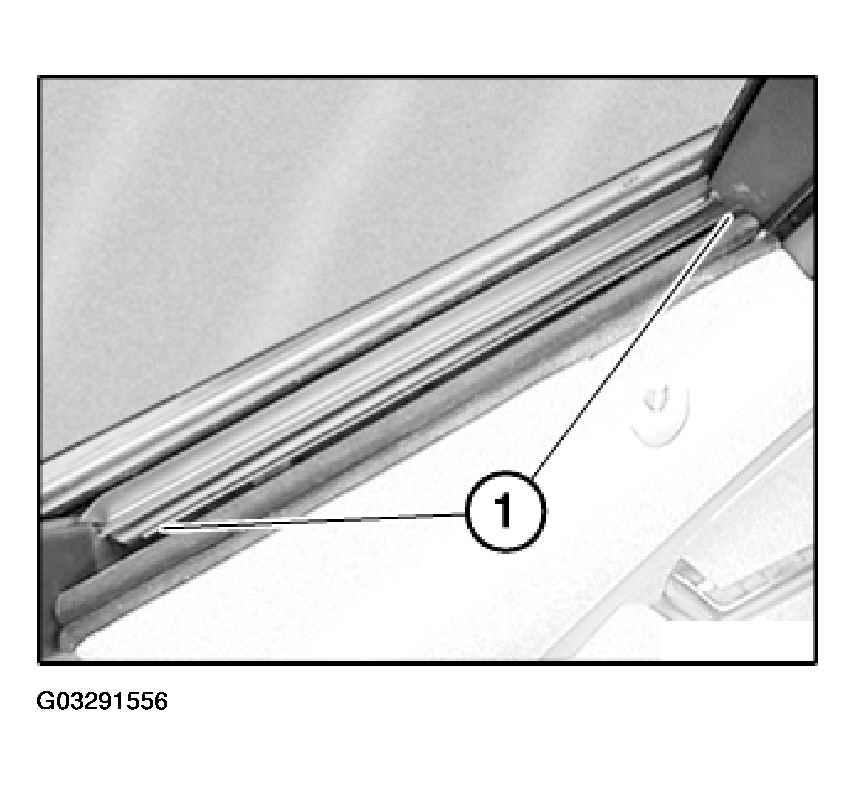

Attach chest strip correctly to flange (1).

Fig 6: Attaching Chest Strip To Flange

G03291556

Courtesy of BMW OF NORTH AMERICA, INC.
