51 22 370 Removing and installing/replacing cover (seal) on rear door at bottom left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Detach cover (1) in direction of arrow from rear door (2).

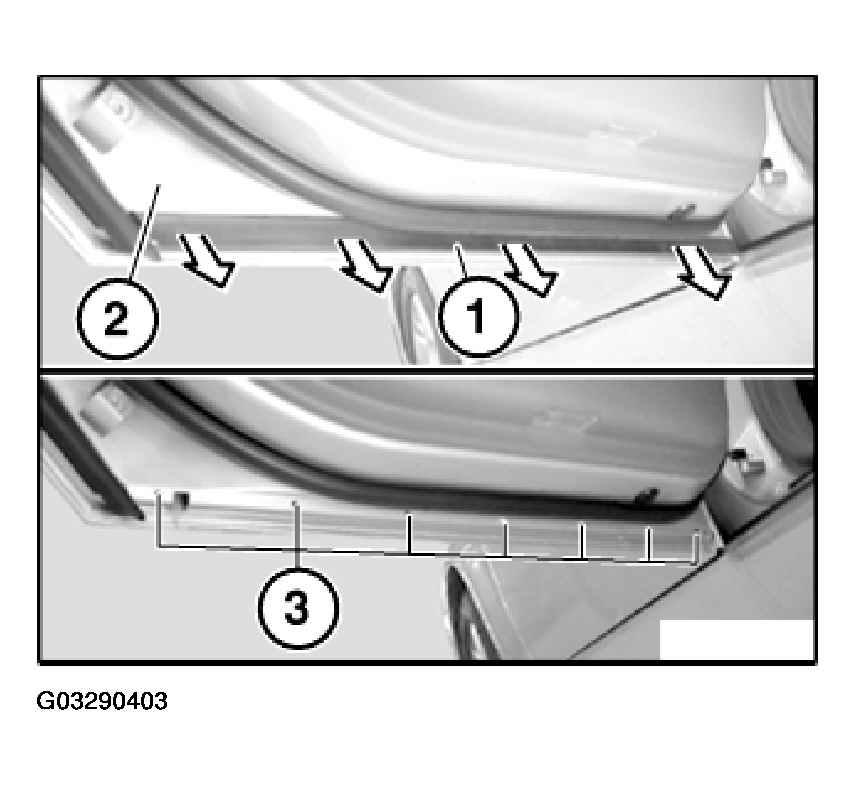

Fig 1: Detaching Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip clips of cover (1) correctly into bores (3).

Installation:

Clips (1) of cover (2) must not be damaged.

Cover (2) has an aluminum insert (3).

Only press on clips (1) when installing otherwise cover (2) will become uneven.

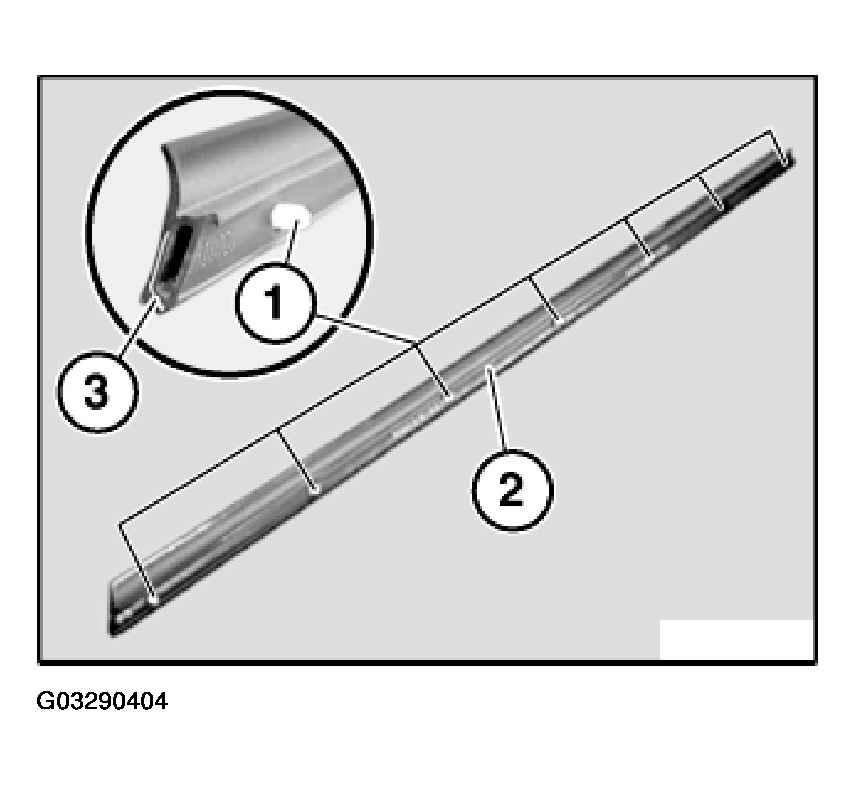

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.
