51 22 126 Removing and installing/replacing carrier for outside door handle on left or right rear door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear outside handle, refer to 51 22 170 REMOVING AND INSTALLING / REPLACING OUTSIDE HANDLE ON LEFT OR RIGHT BACK DOOR

Release screw (1).

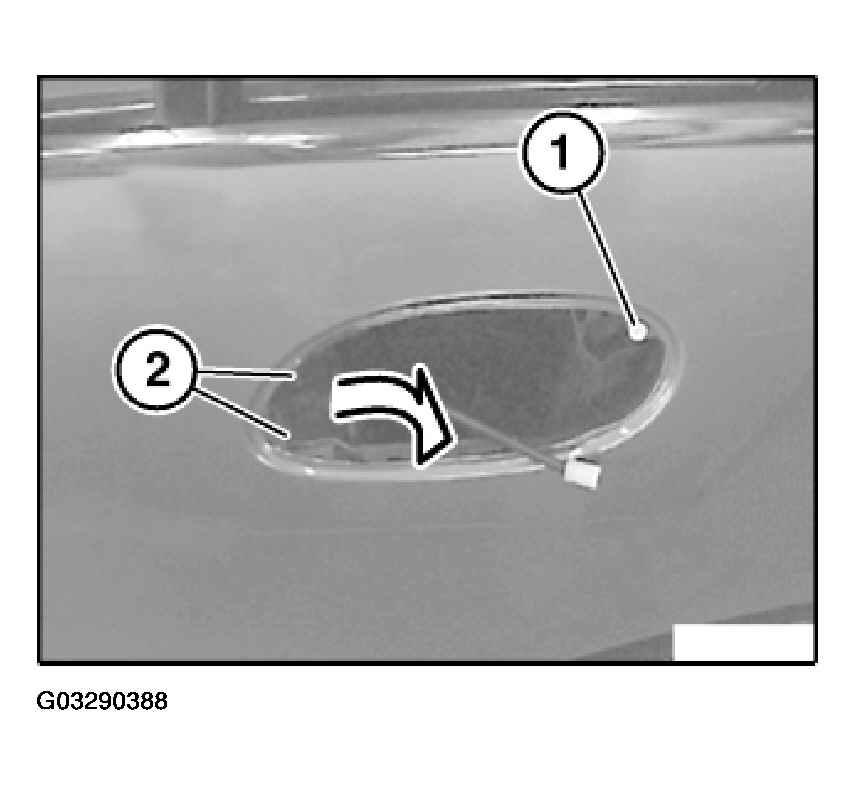

Fig 1: Feeding Carrier Out Of Guide

G03290388

Courtesy of BMW OF NORTH AMERICA, INC.

Feed carrier out of guide (2) and lower at front downwards.

Installation:

Make sure guides are correctly fed in.

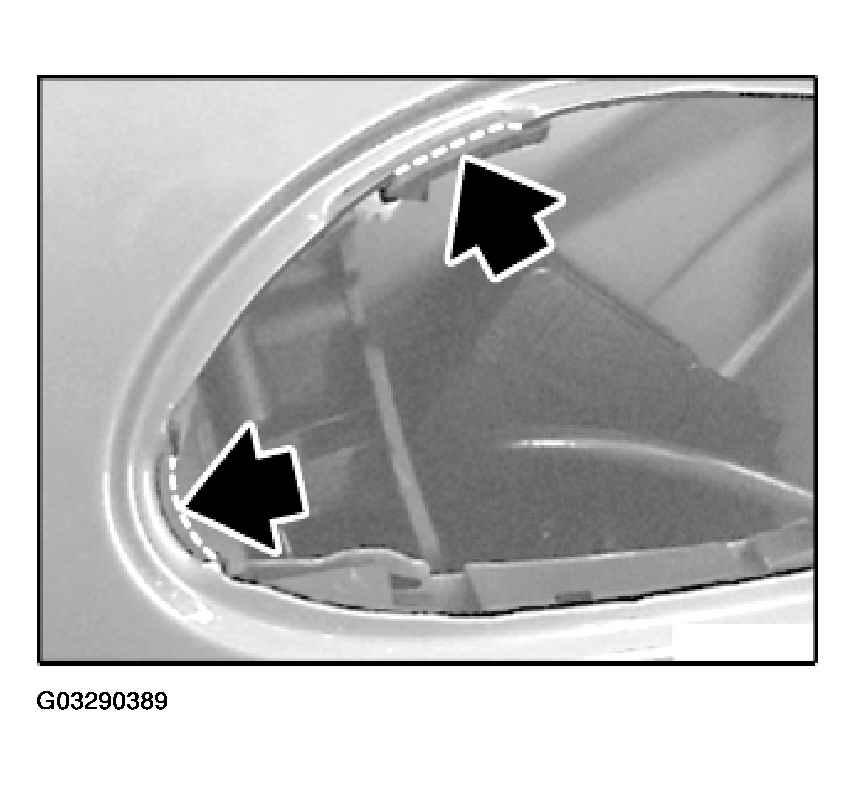

Fig 2: Identifying Guides

G03290389

Courtesy of BMW OF NORTH AMERICA, INC.

Remove carrier through handle opening.

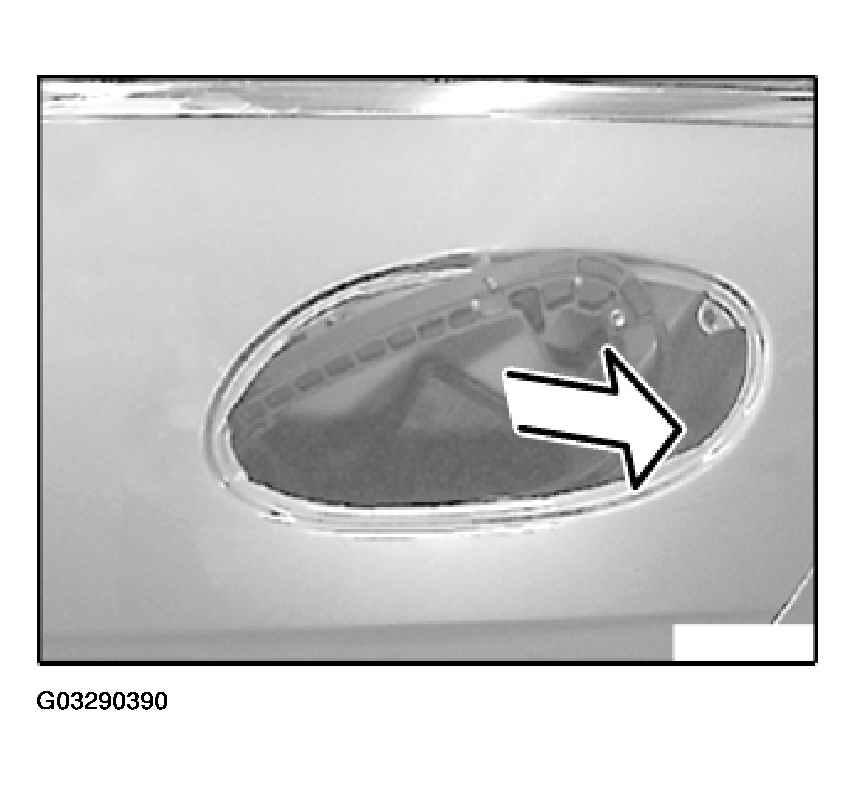

Fig 3: Removing Carrier Through Handle Opening

G03290390

Courtesy of BMW OF NORTH AMERICA, INC.

Protect door outer skin (e.g. cleaning cloth).

Feed fiber optics cable out of clip (1).

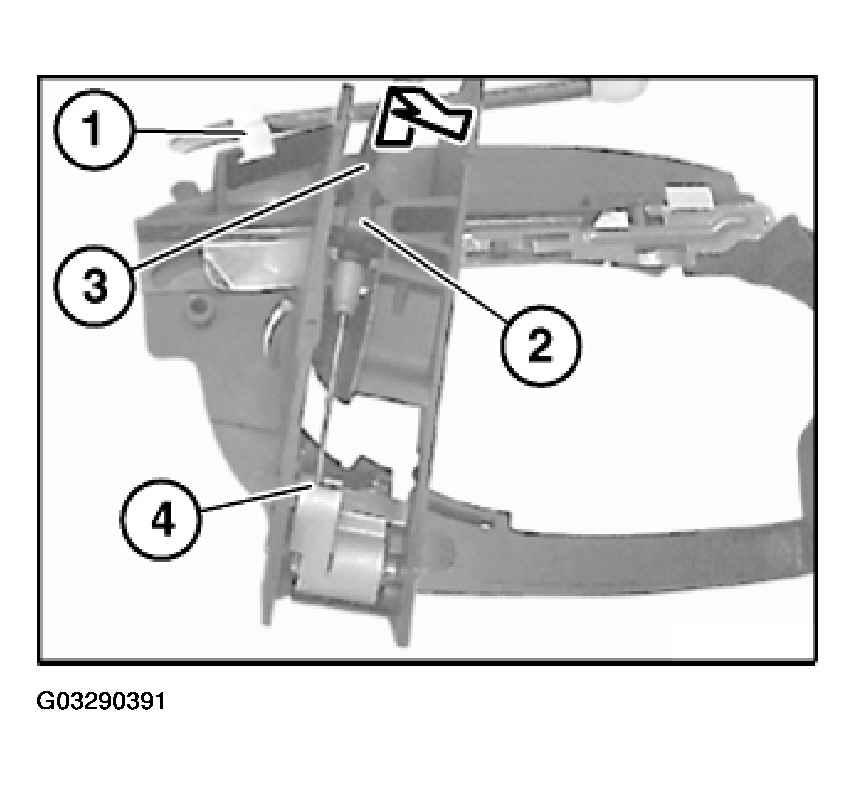

Fig 4: Locating Clips

G03290391

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: No fibre optics cable is fitted from build date 09/2004.

If necessary, withdraw Bowden cable sleeve (2) with clip (3) from retaining fixture.

Feed Bowden cable out of actuating lever (4).

Remove carrier.

Installation:

Clip is on fitted on Bowden cables with blue sealing caps (1).

Position of clip on Bowden cable:

2 = small hole side

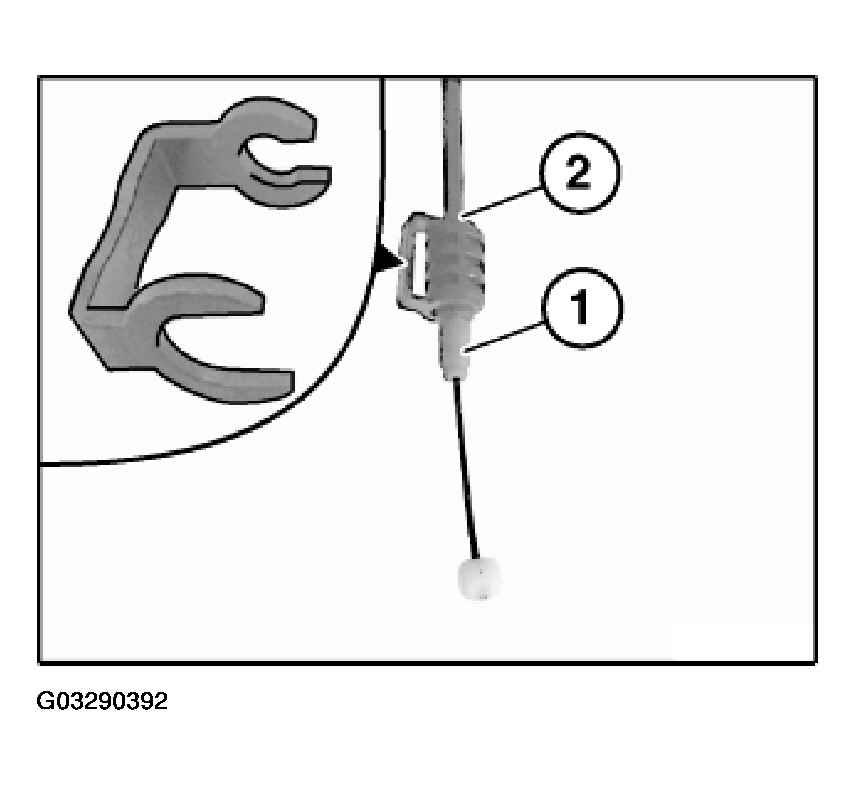

Fig 5: Fitting Clip On Bowden Cables With Blue Sealing Caps

G03290392

Courtesy of BMW OF NORTH AMERICA, INC.
