51 12 432 Replacing central body molding on rear bumper: Replacement:
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Version with PDC:
Remove ultrasonic transducer. Refer to 66 20 520 REMOVING AND INSTALLING/REPLACING AN ULTRASONIC TRANSDUCER AT FRONT (PARK DISTANCE CONTROL) .

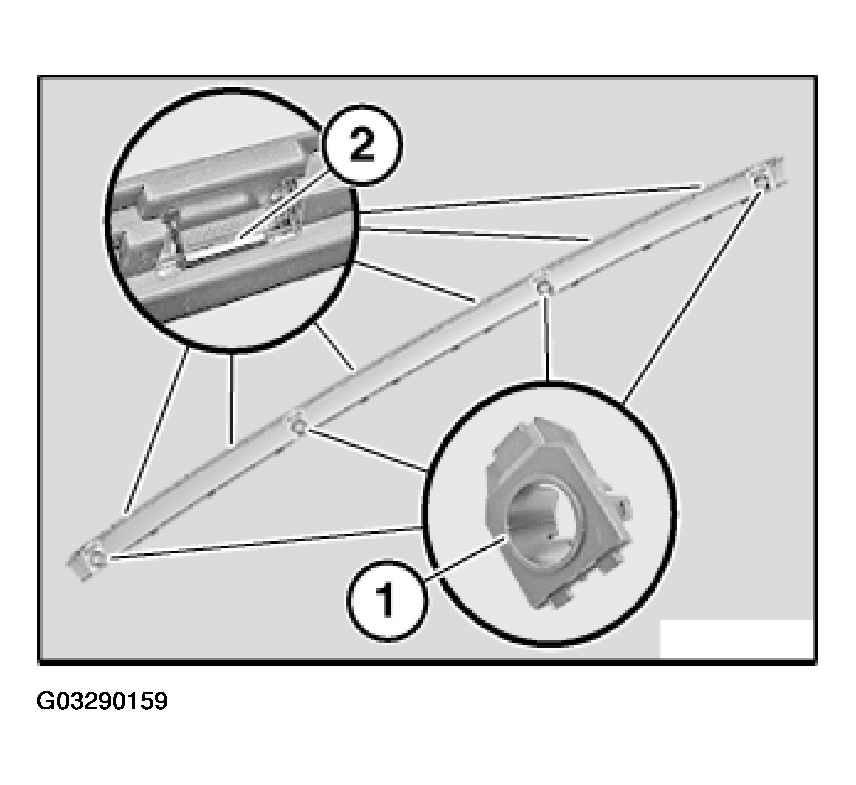

Remove holder (1).
Version with Chromeline:
Release catches (2) and remove chrome trim from body molding.
