51 12 156 Removing and installing rear bumper trim: Removing:
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

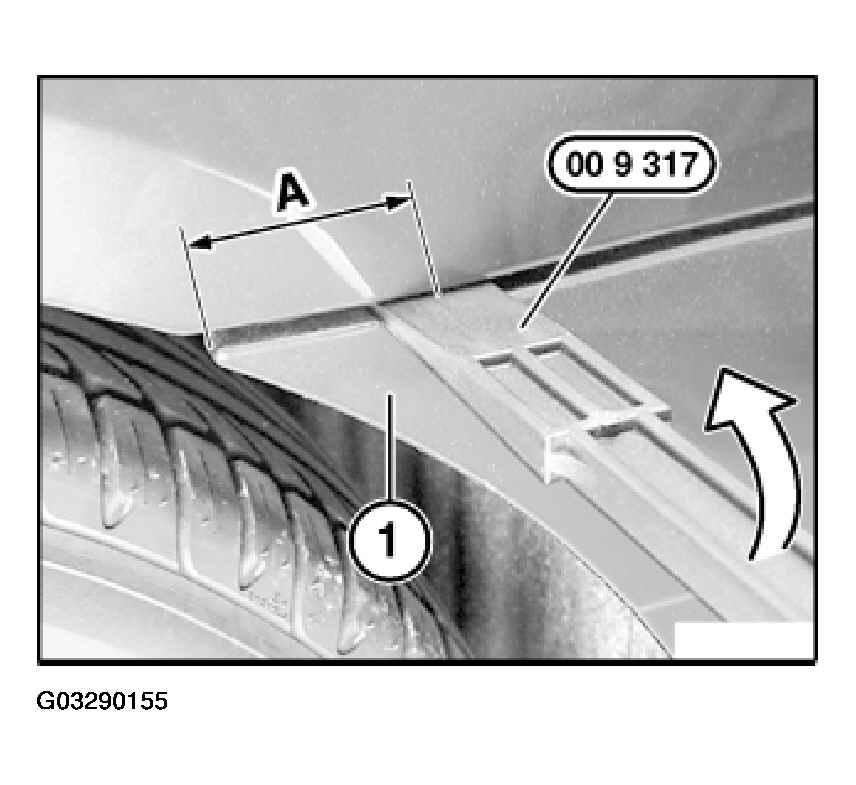

- Insert special tool 00 9 317 at distance (A)
- Disengage/unlock bumper trim (1)
- Pull bumper trim (1) straight towards rear with aid of a 2nd person
- If necessary, disconnect plug connections
- Pull off bumper trim (1)
A = 60 mm
Installation:
Observe gap dimensions.
