51 12 050 Removing and installing / replacing carrier for rear bumper trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove bumper trim, refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM

Remove shock absorber (1) towards rear.

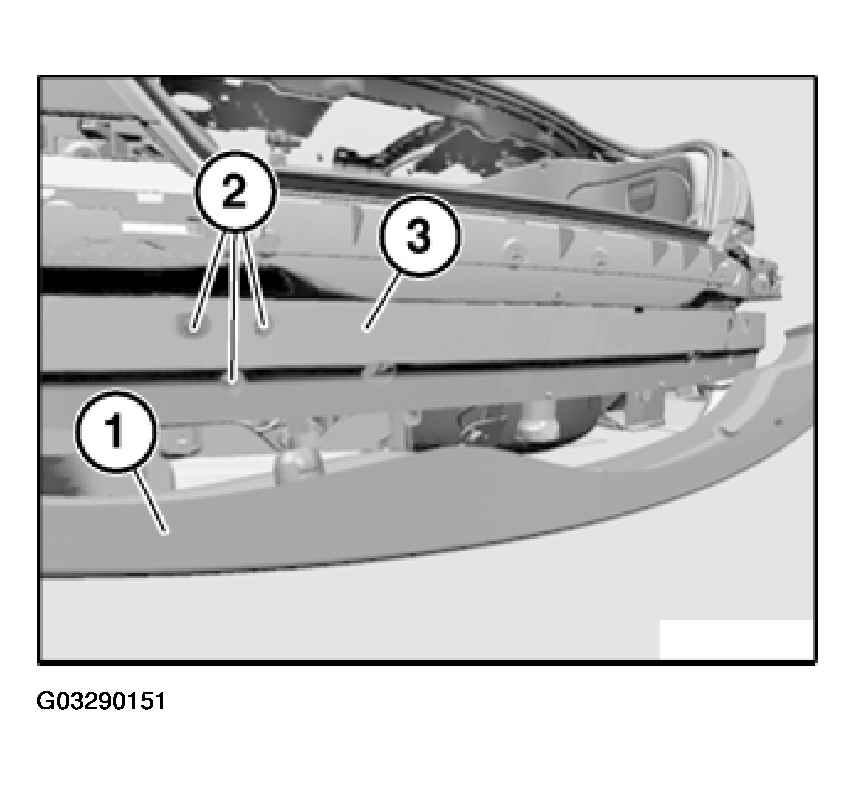

Fig 1: Removing Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (2) on left/right.

Remove carrier (3).

Tightening torque 51 12 3AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
