51 46 050 Removing and installing / replacing trim for rear panel at top: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove luggage compartment floor trim panel, refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL

Remove cover (1) for spare wheel.

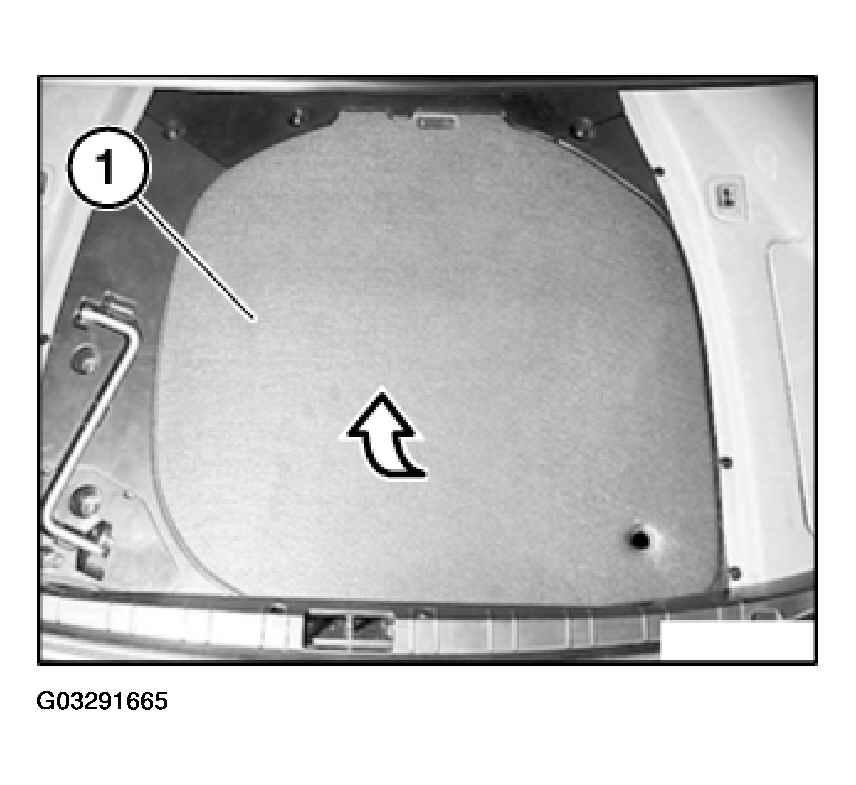

Fig 1: Removing Cover For Spare Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1).

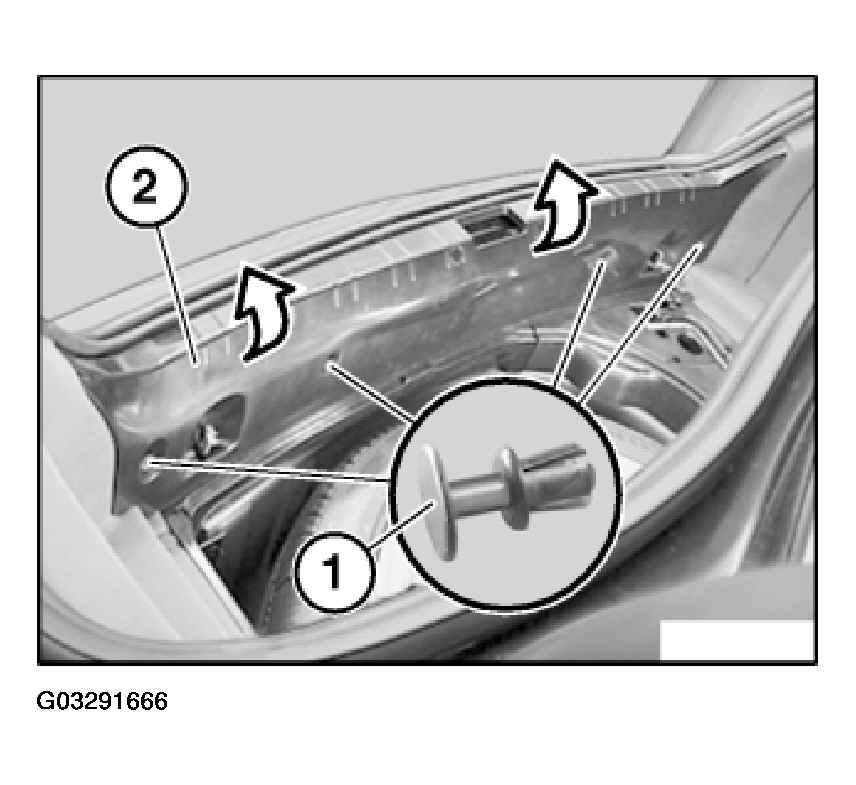

Fig 2: Releasing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out trim (2) for rear apron inwards/upwards.

Installation:

Guides (1) of trim (2) must not be damaged.

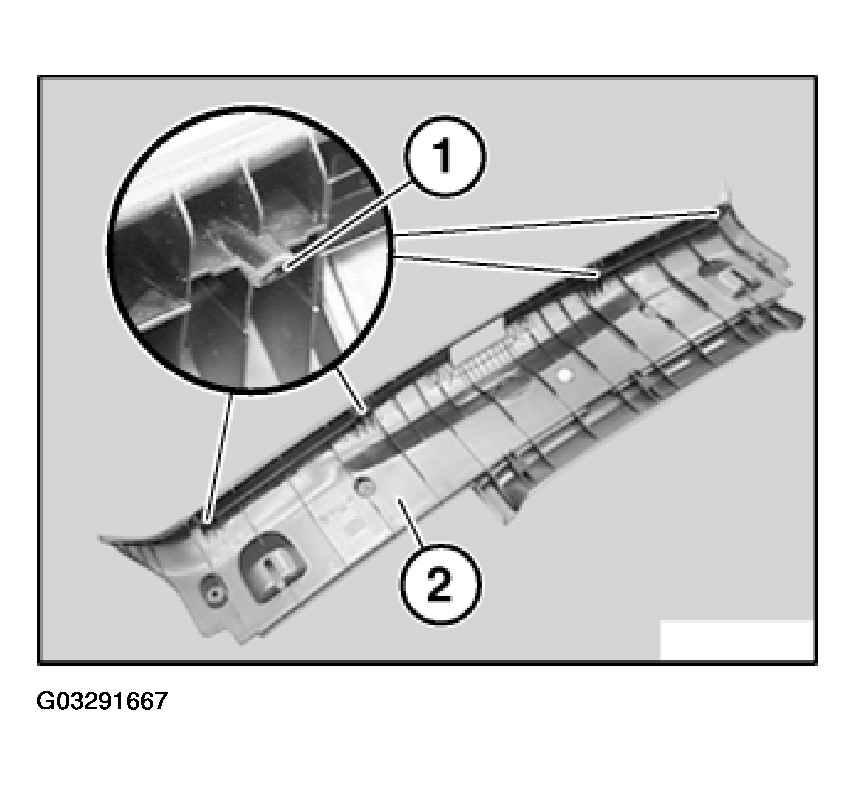

Fig 3: Locating Guides Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.
