Replacement up to build date 02/2005:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Pins (2) must be removed if a new decorative strip (1) with eight pins is fitted to cars with six clip inserts.

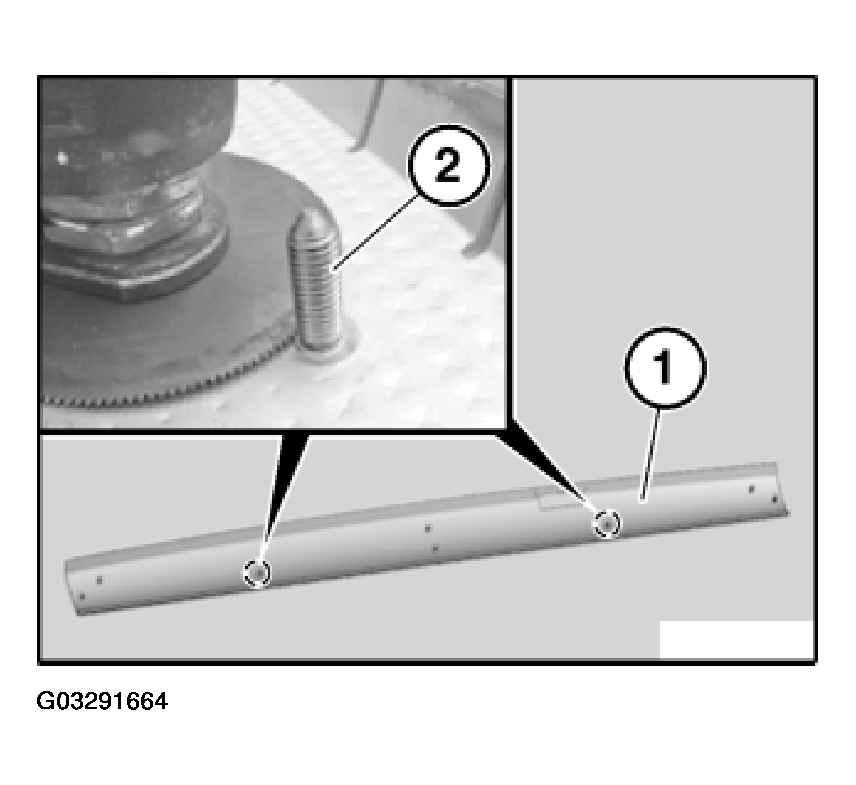

Fig 1: Identifying Decorative Strip
G03291664Courtesy of BMW OF NORTH AMERICA, INC.

Saw off pins (2) with special cutter and max. 63 mm dia. saw blade until flush.
