51 16 405 Removing and installing or replacing blind at side window of left or right rear door

Necessary preliminary tasks:

• Remove rear function carrier. Refer to 51 22 035 REMOVING AND INSTALLING FUNCTION CARRIER (WITHOUT ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR .

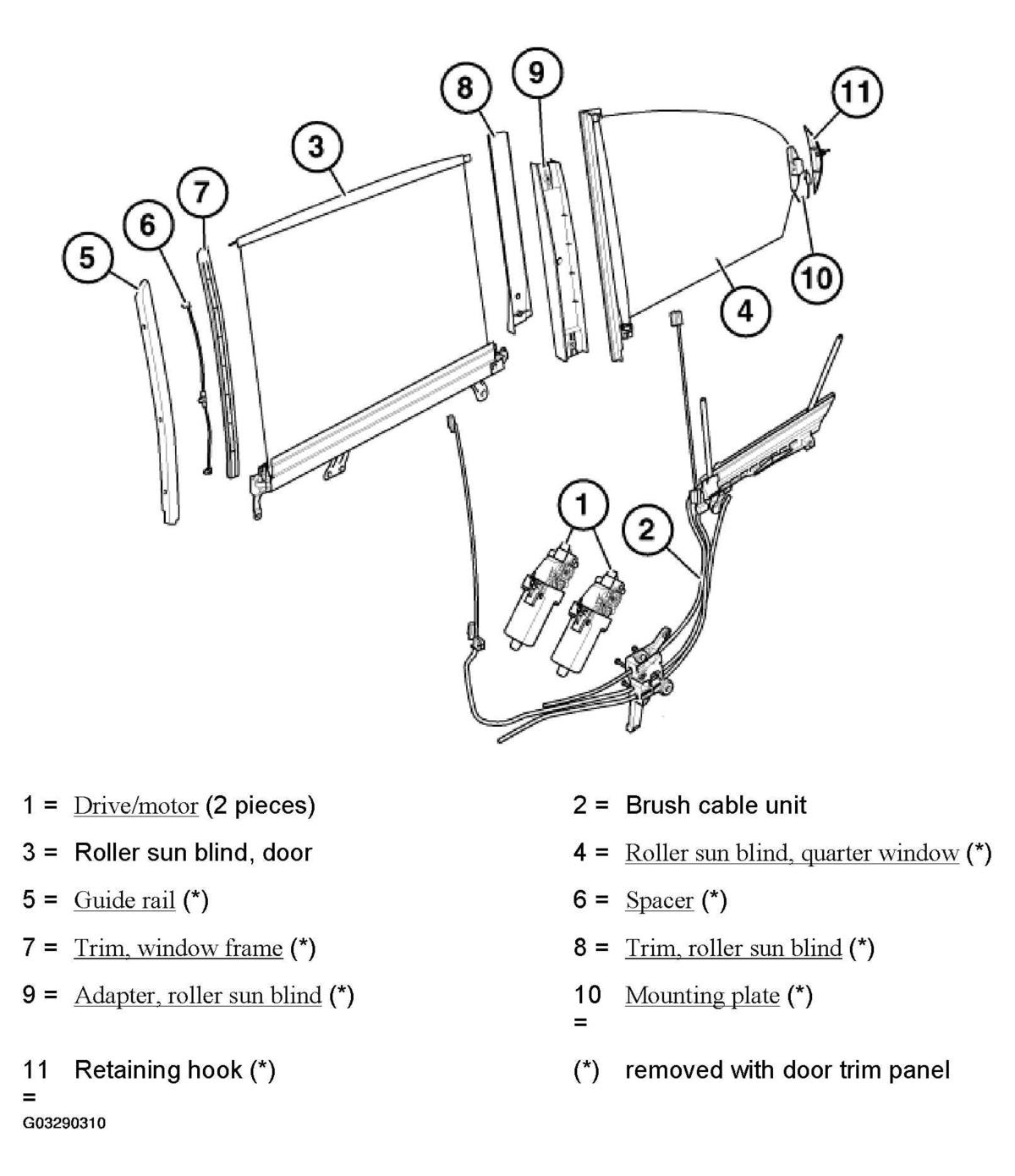

Fig 1: Identifying Components Of Roller Sun Blind Module

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1).

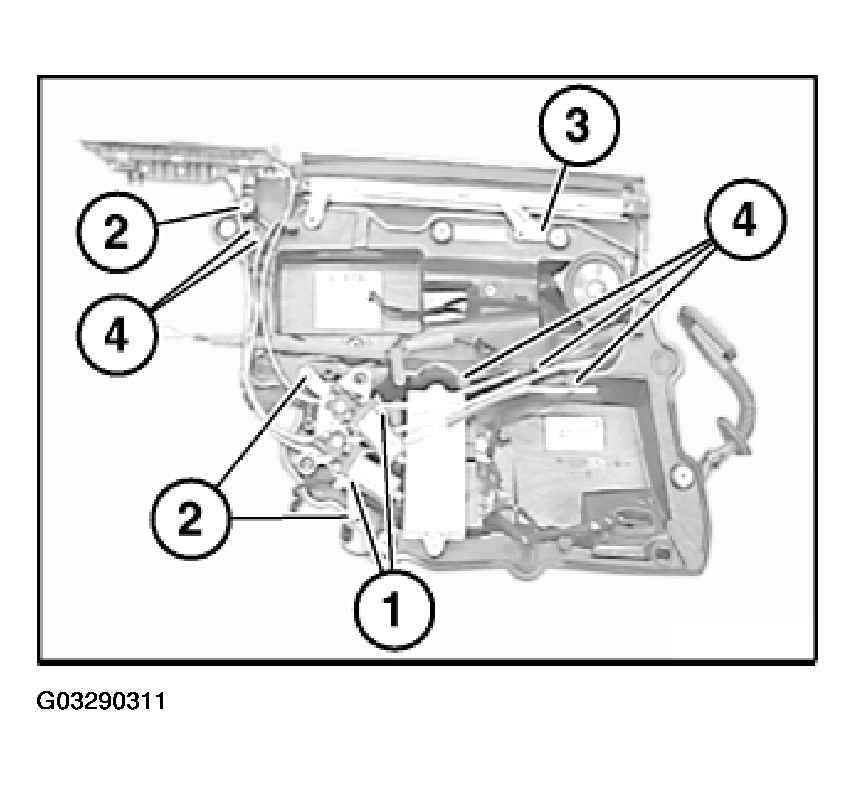

Fig 2: Removing Roller Sun Blind Module

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2 and 3).

Unclip brush cable (4).

Remove roller sun blind module.

Installation:

Tightening torque, screws (2): 51 16 10AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Tightening torque, screw (3): 51 16 11AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Release screw.

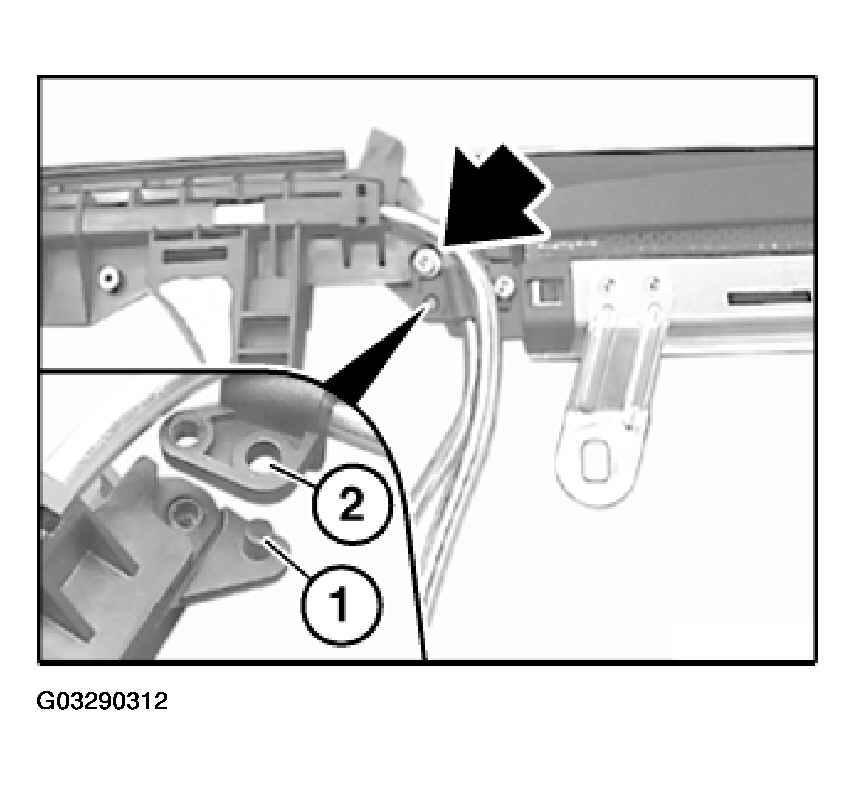

Fig 3: Removing Roller Sun Blind From Brush Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Remove roller sun blind from brush unit.

Installation:

Tightening torque: 51 16 12AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Feed guide (1) into guide hole (2).

Turn module.

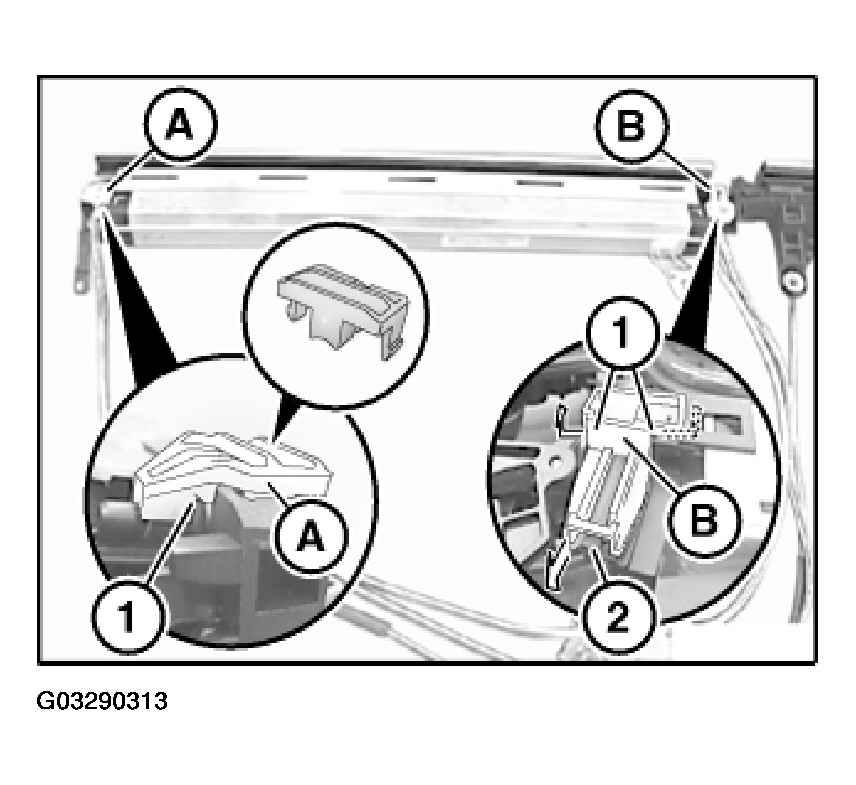

Fig 4: Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clips (A) and remove.

Unclip clip (B) (1) and pull out of guide (2).

Remove outer brush cable.

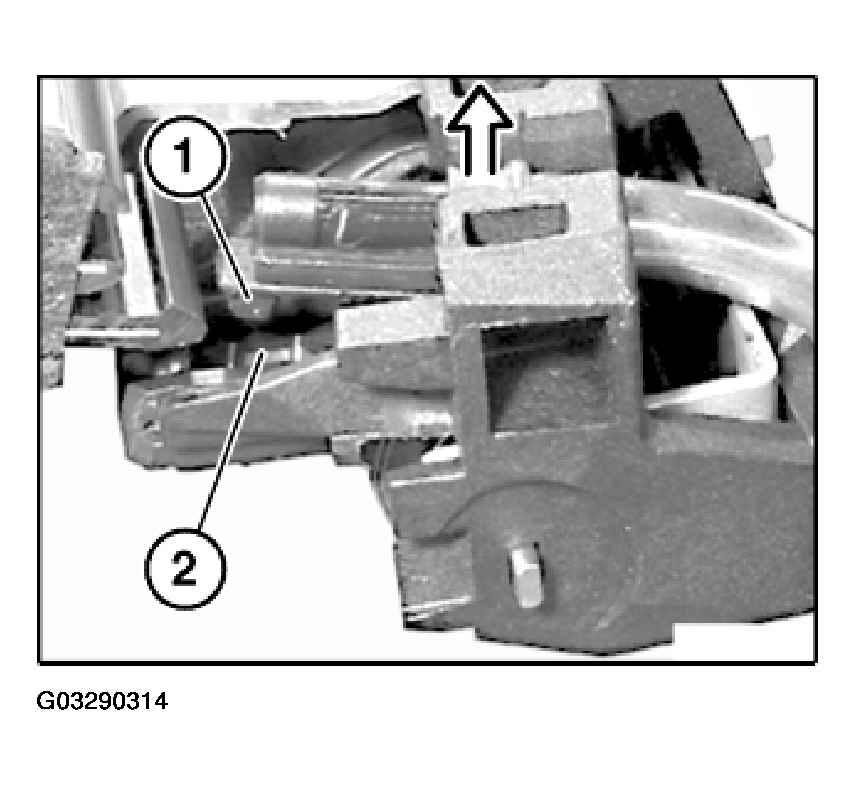

Fig 5: Removing Outer Brush Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure lug (1) is seated in groove (2).

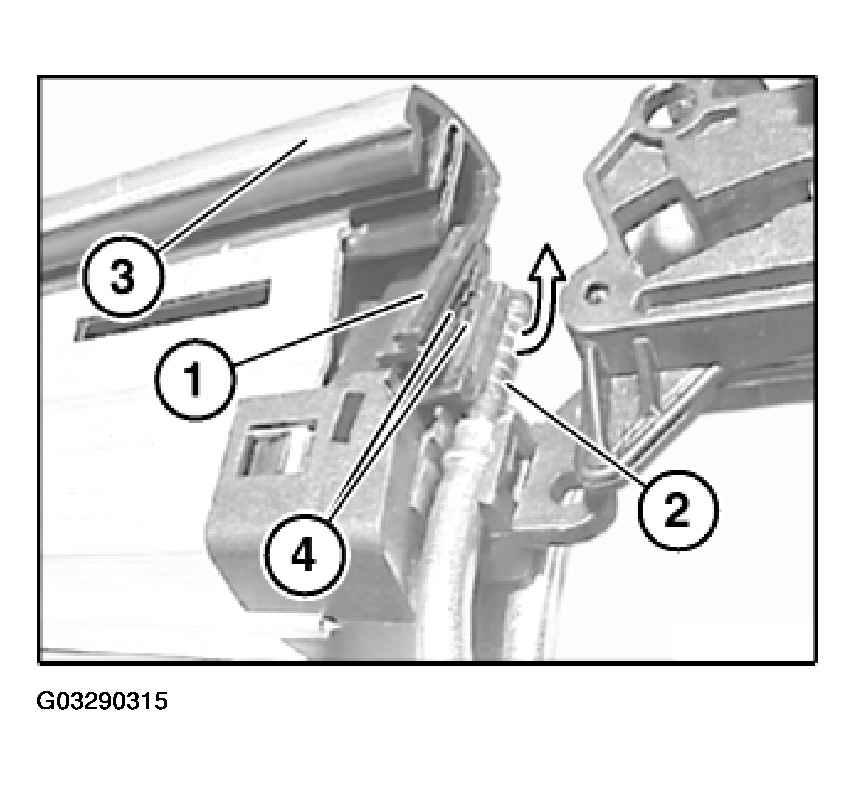

Pull roller sun blind (1) upwards slightly.

Fig 6: Pulling Roller Sun Blind Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Remove inner brush cable (2).

If necessary, pull off chest strip (3) towards top.

Installation:

Make sure lug is seated in groove (4).
